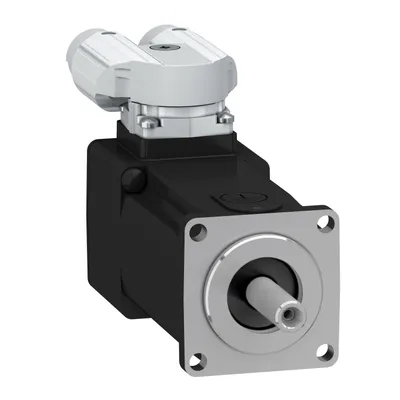

AC servo motor BSH - 0.38N.m - 9000 rpm - untapped shaft - without brake - IP50

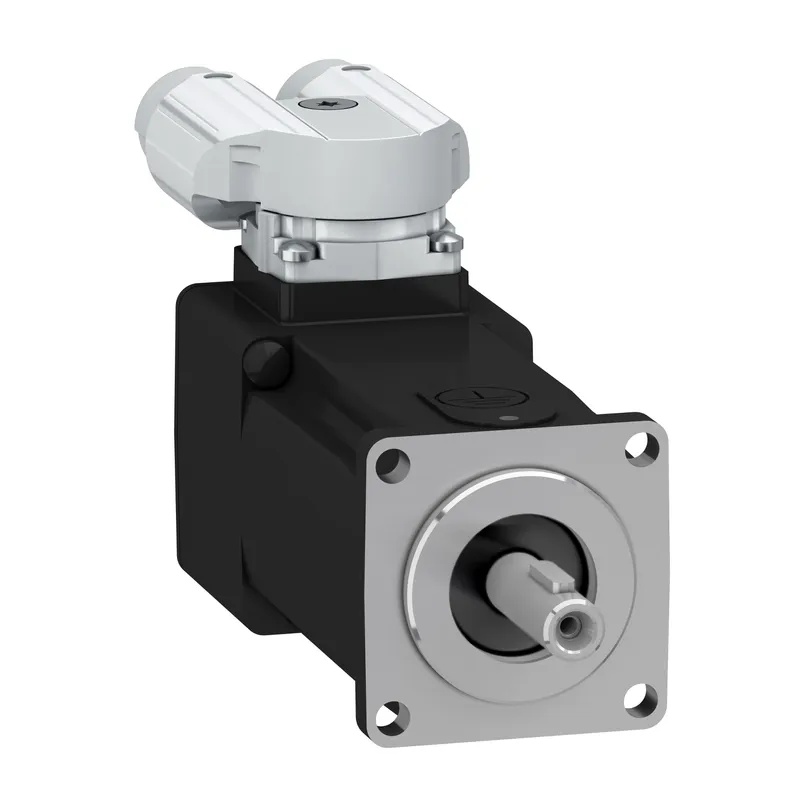

AC servo motor BSH - 0.38N.m - 9000 rpm - keyed shaft - without brake - IP50
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole AC servo motor features maximum mechanical speed of 10,000RPM and keyed shaft end without holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 32,768 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 400V, a continuous stall current of 1.5A and a continuous power of 398W. The shaft dimensions are 8mm (diameter) x 25mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP50 standard rated product. The length of this product is 93.4mm and the centering collar dimensions are 2.5mm (depth) x 30mm (diameter) with 46mm mounting hole. It weighs 0.6kg. This range is compatible with Lexium 32 servo drives. It supports 40mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
| Device short name | BSH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 10000 rpm |
| Continuous stall torque | 0.38 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.38 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.38 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Peak stall torque | 1.37 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.37 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.37 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Nominal output power | 275 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 289 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 152 W for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Nominal torque | 0.292 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.307 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.364 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Nominal speed | 9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Shaft end | Keyed |
| IP degree of protection | IP50 standard |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
| Range compatibility | Lexium 32 |
| supply voltage max | 400 V |
| Network number of phases | Three phase |
| Continuous stall current | 1.5 A |
| maximum continuous power | 398 W |
| Maximum current Irms | 6 A for LXM32.U60N4 at 480 V; 6 A for LXM32.U60N4 at 400 V; 6 A for LXM32.U45M2 at 230 V |
| Maximum permanent current | 1.5 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 8 mm |
| Shaft length | 25 mm |
| Key width | 12 mm |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 40 mm |
| Number of motor stacks | 2 |
| Torque constant | 0.26 N.m/A at 120 °C |
| Back emf constant | 18 V/krpm at 20 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 0.0419 kg.cm² |
| Stator resistance | 11.6 Ohm at 20 °C |
| Stator inductance | 6.4 mH at 20 °C |
| Stator electrical time constant | 1.1 ms at 20 °C |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 93.4 mm |
| Centring collar diameter | 30 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 4.5 mm |
| Circle diameter of the mounting holes | 46 mm |
| Net weight | 0.6 kg |
| Sizing reference | BSH0402P |
| Network number of phases | 3 |
| Accuracy error [angular] | 0.08 ° |
| Temperature copper hot | 120 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 7.2 A |
| Inertia | 0.0 kg.cm² of brake; 0.042 kg.cm² of motor |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
BSH0402P16A2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for BSH0402P16A2A and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0402P16A2A, subject to availability and destination.

AC servo motor BSH - 0.38N.m - 9000 rpm - untapped shaft - without brake - IP50

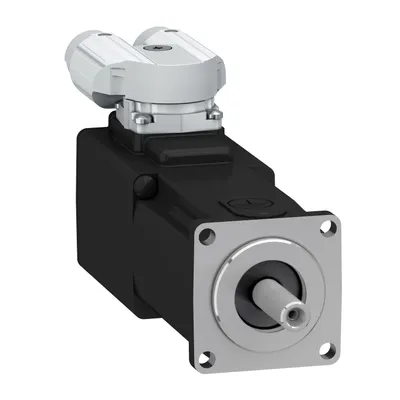

AC servo motor BSH - 0.38N.m - 9000 rpm - untapped shaft - with brake - IP50
