Schneider Electric BSH0402P06A2A

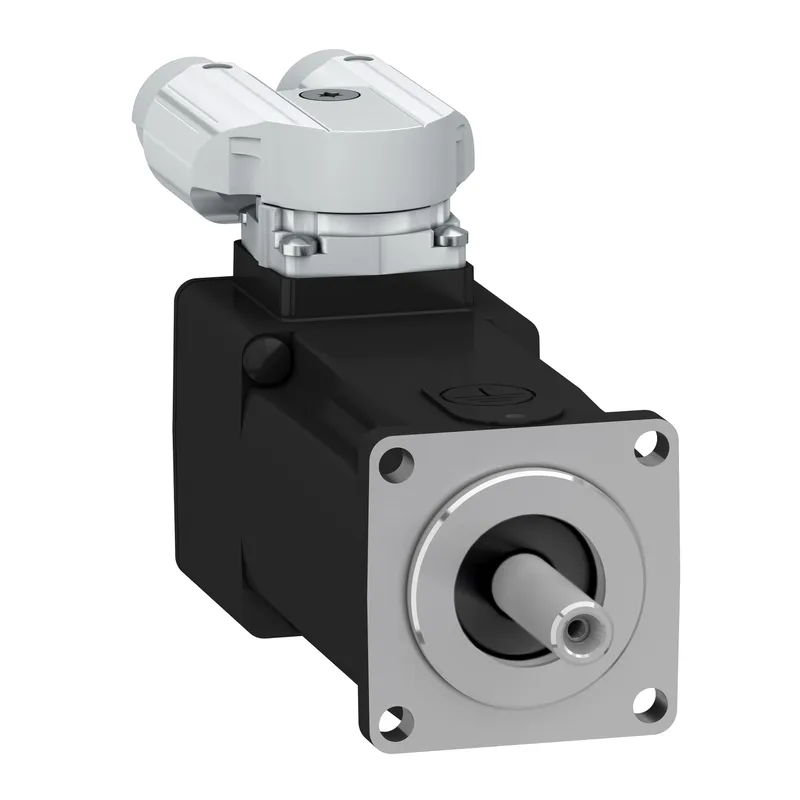

AC servo motor BSH - 0.38N.m - 9000 rpm - untapped shaft - without brake - IP50

MPN
BSH0402P06A2A
EAN
3606485467221
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BSH0402P06A2A?

"This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors." "This is an AC servo motor that features a maximum mechanical speed of 9000RPM, an untapped shaft end, without holding brake." "It is equipped with a single-turn encoder type SinCos Hiperface." "It has two rotatable right-angle connectors dedicated to power and encoder cables." "It has a rated supply voltage of 400V, a continuous stall current of 1.5A, a continuous power of 398W, and a continuous stall torque of 0.38Nm." "Its degree of protection is IP50 rated." "The motor flange size is 40mm, fixed by 4x 4.5mm holes. The circle diameter of the mounting holes is 46mm. It weighs 0.6kg." "This servo motor is designed for Lexium 32 drives." "It is certified by UL." "It is compatible with LXM32AU60N4, LXM32SU60N4, LXM32MU60N4, LXM32CU60N4, LXM32AU45M2, LXM32SU45M2, LXM32MU45M2, and LXM32CU45M2 servo drives." "its mounting support is an international standard flange." "The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price." "Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short nameBSH
Product or component typeServo motor
Maximum mechanical speed10000 rpm
Continuous stall torque0.38 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.38 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.38 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Peak stall torque1.37 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.37 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.37 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal output power275 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 289 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 152 W for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal torque0.292 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.307 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.364 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal speed9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase
Shaft endSmooth shaft
IP degree of protectionIP50 standard
Speed feedback resolution32768 points/turn
Holding brakeWithout
Mounting supportInternational standard flange
Electrical connectionRotatable right-angled connectors

Complementary

Range compatibilityLexium 32
supply voltage max400 V
Network number of phasesThree phase
Continuous stall current1.5 A
maximum continuous power398 W
Maximum current Irms6 A for LXM32.U60N4 at 480 V; 6 A for LXM32.U60N4 at 400 V; 6 A for LXM32.U45M2 at 230 V
Maximum permanent current1.5 A
Switching frequency8 kHz
Second shaftWithout second shaft end
Shaft diameter8 mm
Shaft length25 mm
Feedback typeSingle turn SinCos Hiperface
Motor flange size40 mm
Number of motor stacks2
Torque constant0.26 N.m/A at 120 °C
Back emf constant18 V/krpm at 20 °C
Number of motor poles5.0
Rotor inertia0.0419 kg.cm²
Stator resistance11.6 Ohm at 20 °C
Stator inductance6.4 mH at 20 °C
Stator electrical time constant1.1 ms at 20 °C
Maximum axial force Fa0.2 x Fr
Type of coolingNatural convection
Length93.4 mm
Centring collar diameter30 mm
Centring collar depth2.5 mm
Number of mounting holes4
Mounting holes diameter4.5 mm
Circle diameter of the mounting holes46 mm
Net weight0.6 kg
Sizing referenceBSH0402P
Network number of phases3
Accuracy error [angular]0.08 °
Temperature copper hot120 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Output current 3s peak7.2 A
Inertia0.0 kg.cm² of brake; 0.042 kg.cm² of motor
