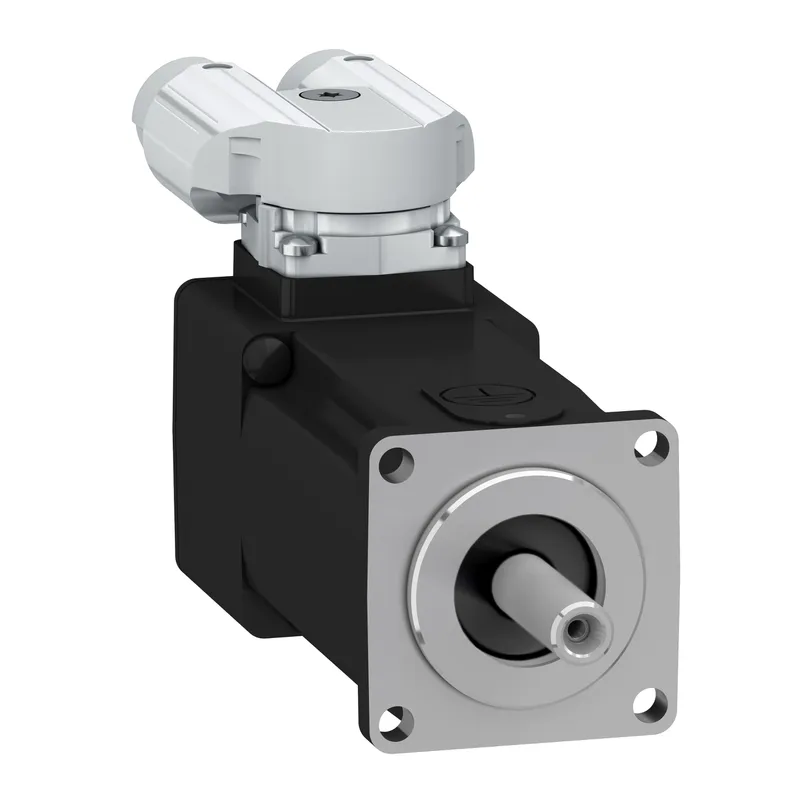

This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This AC servo motor features a maximum mechanical speed of 10000RPM, a smooth shaft end, and no holding brake. It is equipped with an absolute single-turn encoder, 16 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. It is a servo motor with a rated supply voltage of 400V and a continuous stall current of 1.5A. It is furnished with rotatable right-angle connectors for electrical connection and is an IP65-rated product. Its flange is 40x40mm, and it is a 2-stack length, and it weighs 4.3kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives, type LXM32nU45M2 and LXM32nU60N4, and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 40mm flange mount with a natural convection cooling system. Lexium 32 is a servo drive range that provides a drive and motor combination that has exactly the right power, performance, and functionality. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
| Device short name | BSH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 10000 rpm |
| Continuous stall torque | 0.38 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.38 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.38 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Peak stall torque | 1.37 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.37 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.37 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Nominal output power | 275 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 289 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 152 W for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Nominal torque | 0.292 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.307 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.364 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Nominal speed | 9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase |
| Shaft end | Smooth shaft |
| IP degree of protection | IP65 standard |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
| Range compatibility | Lexium 32 |
| supply voltage max | 400 V |
| Network number of phases | Three phase |
| Continuous stall current | 1.5 A |
| maximum continuous power | 398 W |
| Maximum current Irms | 6 A for LXM32.U60N4 at 480 V; 6 A for LXM32.U60N4 at 400 V; 6 A for LXM32.U45M2 at 230 V |
| Maximum permanent current | 1.5 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 8 mm |
| Shaft length | 25 mm |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 40 mm |
| Number of motor stacks | 2 |
| Torque constant | 0.26 N.m/A at 120 °C |
| Back emf constant | 18 V/krpm at 20 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 0.0419 kg.cm² |
| Stator resistance | 11.6 Ohm at 20 °C |
| Stator inductance | 6.4 mH at 20 °C |
| Stator electrical time constant | 1.1 ms at 20 °C |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 93.4 mm |
| Centring collar diameter | 30 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 4.5 mm |
| Circle diameter of the mounting holes | 46 mm |
| Net weight | 0.6 kg |
| Sizing reference | BSH0402P |
| Network number of phases | 3 |
| Accuracy error [angular] | 0.08 ° |
| Temperature copper hot | 120 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 7.2 A |
| Inertia | 0.0 kg.cm² of brake; 0.042 kg.cm² of motor |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
BSH0402P26A2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for BSH0402P26A2A and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0402P26A2A, subject to availability and destination.

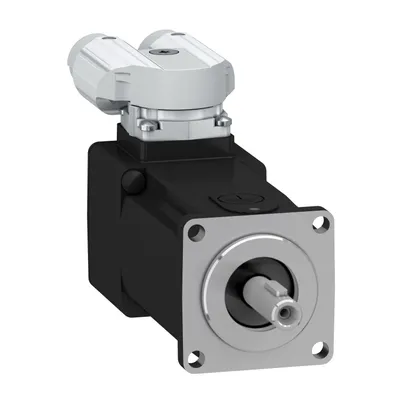

AC servo motor BSH - 0.38N.m - 9000 rpm - keyed shaft - without brake - IP50

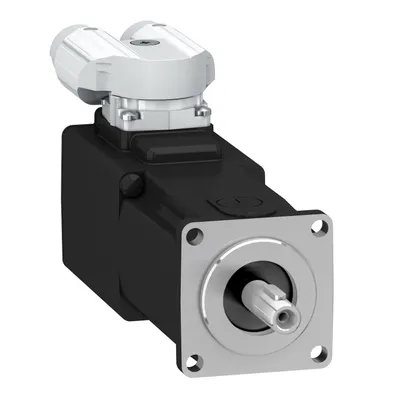

AC servo motor BSH - 0.38N.m - 9000 rpm - keyed shaft - with brake - IP50
