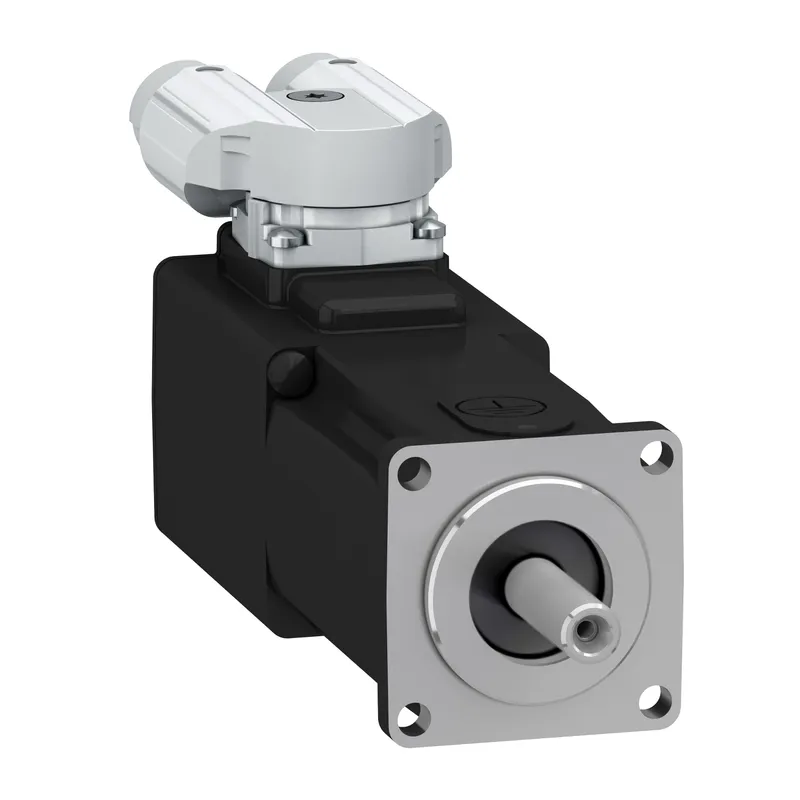

Schneider Electric BSH0402P06F2A – AC servo motor BSH - 0.38N.m - 9000 rpm - untapped shaft - with brake - IP50

Name: Schneider Electric BSH0402P06F2A – AC servo motor BSH - 0.38N.m - 9000 rpm - untapped shaft - with brake - IP50
Brand: Schneider Electric
SKU: BSH0402P06F2A

MPN: BSH0402P06F2A · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 32 & Motors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	DE
UPC / EAN	3606485467306
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BSH0402P06F2A be shipped?

BSH0402P06F2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BSH0402P06F2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BSH0402P06F2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0402P06F2A, subject to availability and destination.

Schneider Electric BSH0402P06F2A — AC servo motor BSH - 0.38N.m - 9000 rpm - untapped shaft - with brake - IP50 (Lexium 32 & Motors). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	10000 rpm
Continuous stall torque	0.38 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.38 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.38 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Peak stall torque	1.37 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.37 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.37 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal output power	275 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 289 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 152 W for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal torque	0.292 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.307 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.364 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal speed	9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase
Shaft end	Smooth shaft
IP degree of protection	IP50 standard
Speed feedback resolution	32768 points/turn
Holding brake	With
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 32
supply voltage max	400 V
Network number of phases	Three phase
Continuous stall current	1.5 A
maximum continuous power	398 W
Maximum current Irms	6 A for LXM32.U60N4 at 480 V; 6 A for LXM32.U60N4 at 400 V; 6 A for LXM32.U45M2 at 230 V
Maximum permanent current	1.5 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	8 mm
Shaft length	25 mm
Feedback type	Single turn SinCos Hiperface
Holding torque	0.4 N.m holding brake
Motor flange size	40 mm
Number of motor stacks	2
Torque constant	0.26 N.m/A at 120 °C
Back emf constant	18 V/krpm at 20 °C
Number of motor poles	5.0
Rotor inertia	0.0588 kg.cm²
Stator resistance	11.6 Ohm at 20 °C
Stator inductance	6.4 mH at 20 °C
Stator electrical time constant	1.1 ms at 20 °C
Maximum axial force Fa	0.2 x Fr
Brake pull-in power	5.8 W
Type of cooling	Natural convection
Length	119.4 mm
Centring collar diameter	30 mm
Centring collar depth	2.5 mm
Number of mounting holes	4
Mounting holes diameter	4.5 mm
Circle diameter of the mounting holes	46 mm
Net weight	0.8 kg
Sizing reference	BSH0402P
Network number of phases	3
Accuracy error [angular]	0.08 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	7.2 A
Inertia	0.017 kg.cm² of brake; 0.042 kg.cm² of motor
