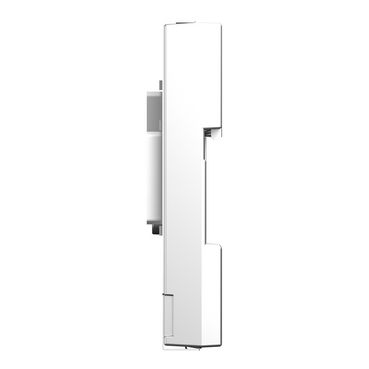

Schneider Electric BMXXBP0800
Backplane, Modicon X80, 8 slots, panel, mounting plate or DIN rail mounting
- MPN
- BMXXBP0800
- EAN
- 3595863909012
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXXBP0800?
This backplane is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This X Bus backplane rack is an accessory of programmable automation controllers. This X-bus racks is composed of 8 slots. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. The backplane has a weigh of 0.95kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This rack is compatible with BMXCPS power supply, BMXP34 or BMEP58 processor, and Modicon X80 modules. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Backplane |
| Number of slots | 8 bus X |
| Product compatibility | BMXP34 processor, BMXCPS power supply, I/O module, Specific application module |
| Power consumption in W | 2.21 W |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws, mounting on panel, By 4 M4/M5/M6 screws, mounting on mounting plate, By clips, mounting on 35 mm symmetrical DIN rail |
| Height | 103.7 mm |
| Width | 372.8 mm |
| Depth | 19 mm |
| Net weight | 0.95 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G |
Packaging
| Package 1 | 1 PCE, 45.500 cm × 15.300 cm × 6.600 cm (L × W × H), 996.000 g |
| Package 2 | 9 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 9.783 kg |
| Package 3 | 36 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 51.132 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMXXBP0800: frequently asked questions
When can BMXXBP0800 be shipped?
BMXXBP0800 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXXBP0800 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXXBP0800 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXXBP0800, subject to availability and destination.
