Schneider Electric BMXXBP1600

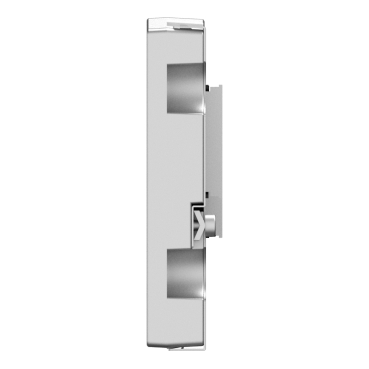

Backplane, Modicon X80, 16 slots, panel, mounting plate mounted

MPN: BMXXBP1600
EAN: 3606485810539
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXXBP1600?

This backplane is part of the Modicon X80 range, a common platform of modules for Modicon M580 and Modicon M340 Programmable Automation Controllers (PAC). This X-bus backplane is an accessory for programmable automation controllers. This X-bus backplane is composed of 16 X-bus slots for X-bus modules only and has a power consumption of 0.17W. This backplane supports a large choice of modules and can be extended thanks to its XBE slot. This product can operate in a standard temperature range, from 0°C to +60°C. This backplane has a current of 51mA at 3.3V DC. It is furnished with 1 connector (XBE) for expansion module. It is an IP20 rated product. The backplane has a weigh of 1.594kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane is compatible with X80 power supply, M340 or M580 processor, and Modicon X80 modules. Modicon X80 range offers common compatible modules that reduce maintenance and training costs with the same spare parts in stock and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures.

Specifications

Range of product	Modicon X80
Product or component type	Backplane
Number of slots	16 bus X
Product compatibility	BMXP34 processor, BMXCPS power supply, I/O module, Specific application module
Power consumption in W	0.17 W
Electrical connection	1 connector (XBE) expansion module
Fixing mode	By 6 M5/M6 screws, mounting on panel, By 6 M5/M6 screws, mounting on mounting plate
Height	108 mm
Width	634.6 mm
Depth	19 mm
Net weight	1.59 kg
IP degree of protection	IP20
Ambient air temperature for operation	0…60 °C
Relative humidity	10…95 % without condensation
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certifications	CE, CULus, RCM, UKCA, Merchant Navy
Standards	EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G

Packaging

Package 1	1 PCE, 71.000 cm × 15.000 cm × 6.800 cm (L × W × H), 1.912 kg
Package 2	6 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 22.500 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet BMXXBP1600PDF

BMXXBP1600: frequently asked questions

When can BMXXBP1600 be shipped?

BMXXBP1600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXXBP1600 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXXBP1600 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXXBP1600, subject to availability and destination.
