Schneider Electric BMXPRA0100

Q: When can BMXPRA0100 be shipped?

BMXPRA0100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up BMXPRA0100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for BMXPRA0100 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXPRA0100, subject to availability and destination.

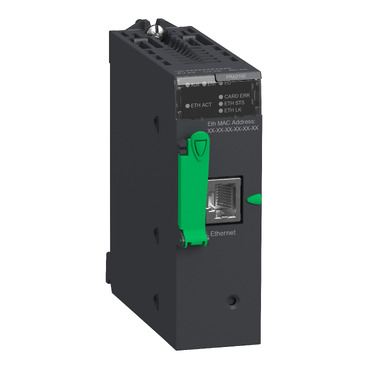

Peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet

MPN: BMXPRA0100
EAN: 3595864063317
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXPRA0100?

This peripheral remote I/O adaptor module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This adaptor module has 1 port with real time clock. It is an I/O adaptor module with a current consumption of 95mA and a power dissipation of 2.3W. It supports 448kB internal, 96kB removable memory capacity. This product is robust, high quality and based on the latest innovative technology. It is furnished with is EtherNet/IP for device network for integrated connections. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, C-Tick, Merchant Navy, GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with 0 to 1024 discrete I/O module, 0 to 256 analog I/O module and 0 to 2 Ethernet module. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Specifications

Range of product	Modicon X80
Product or component type	Peripheral remote I/O adaptor
Number of port	1
Integrated connection type	Ethernet/IP for device network
Communication port protocol	Modbus TCP
Realtime clock	With
Memory capacity	448 kB internal, 96 kB removable
Application structure	1 master task
Local signalling	1 LED (green) for module active (RUN), 1 LED (red) for module error (ERR), 1 LED (red) for external fault (I/O), 1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (red) for memory card fault (CARD ERR), 1 LED (green) for Ethernet link diagnostics (STS), 1 LED (green) for Ethernet network status (link)
Product compatibility	0…1024 discrete I/O module, 0…256 analog I/O module, 0…2 Ethernet module
Average consumption in mA	95 mA
Power dissipation in W	2.3 W
Marking	CE
Module format	Standard
Maximum altitude transport	3000 m
Relative humidity	95 % without condensation
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Product certifications	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
Standards	IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0
Environmental characteristic	Hazardous location class I division 2
IP degree of protection	IP20
Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-40…85 °C
Operating altitude	<= 2000 m

Packaging

Package 1	1 PCE, 11.500 cm × 11.000 cm × 5.500 cm (L × W × H), 244.000 g
Package 2	15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.000 kg
Package 3	240 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 74.000 kg
