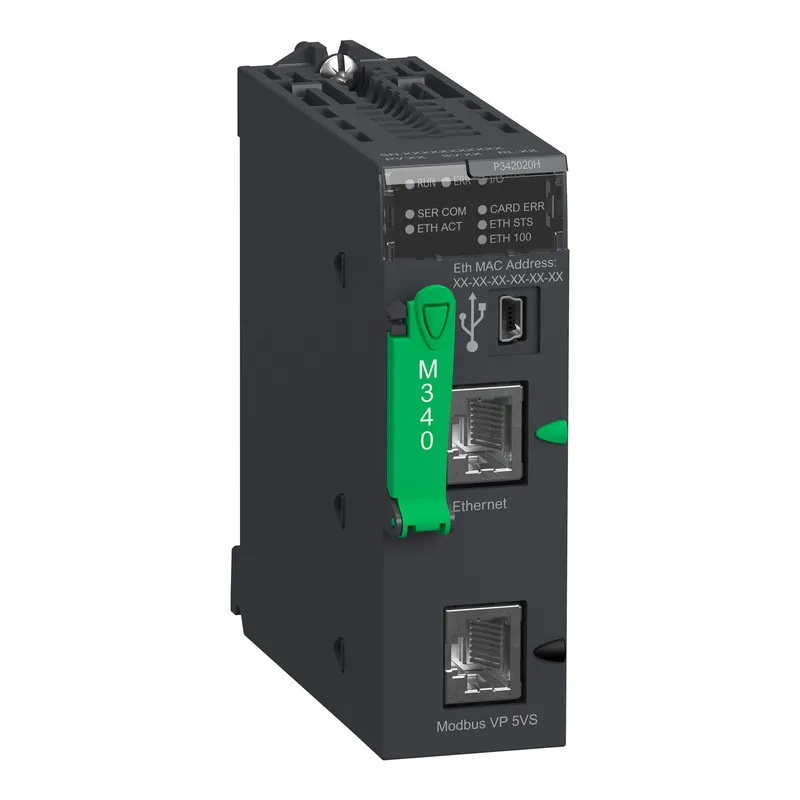

Schneider Electric BMXP342020H – processor module M340 - max 1024 discrete + 256 analog I/O - Modbus - Ethernet
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon M340 |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3595864009766 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BMXP342020H be shipped?
BMXP342020H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXP342020H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXP342020H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXP342020H, subject to availability and destination.
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 4 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 92mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 256kb data, 4096kb, 3584kb program internal RAM. It weighs 0.205kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M340 automation platform |
| Product or component type | Processor module |
| Product specific application | For severe environments |
| Concept | Transparent Ready; Modbus |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 1024 I/O |
| Analogue I/O processor capacity | 256 I/O |
| Number of application specific channel | 36 |
| Monitoring | Diagnostic counters Modbus; Event counters Modbus |
Complementary
| Control channels | Programmable loops |
| Integrated connection type | Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex; Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; USB port at 12 Mbit/s; Ethernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module; 4 AS-Interface module |
| embedded communication service | Bandwidth management, Ethernet TCP/IP; Data Editor, Ethernet TCP/IP; Modbus TCP messaging, Ethernet TCP/IP; Rack Viewer, Ethernet TCP/IP; SNMP network administrator, Ethernet TCP/IP |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Number of devices per segment | 0…32 (character mode); 0…32 (Modbus) |
| Number of devices | 2 point-to-point character mode; 2 point-to-point Modbus |
| Bus length | 0…10 m serial link non isolated character mode segment; 0…10 m serial link non isolated Modbus segment; 0…1000 m serial link isolated character mode segment; 0…1000 m serial link isolated Modbus segment; 0…15 m character mode point-to-point; 0…15 m Modbus point-to-point |
| Maximum tap links length | <15 m serial link non isolated character mode segment; <15 m serial link non isolated Modbus segment; <40 m serial link isolated character mode segment; <40 m serial link isolated Modbus segment |
| Number of addresses | 0…248 for character mode; 0…248 for Modbus |
| Requests | 1 K data bytes per request character mode; 252 data bytes per RTU request Modbus; 504 data bytes per ASCII request Modbus |
| Control parameter | One CRC on each frame (RTU) Modbus; One LRC on each frame (ASCII) character mode; One LRC on each frame (ASCII) Modbus |
| Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data; Internal RAM 4096 kB; Internal RAM 256 kB data; Internal RAM 3584 kB program constants and symbols; Supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Maximum size of object areas | 32634 %Mi located internal bits; 32464 %MWi internal words; 32760 %KWi constant words |
| Default size of object areas | 1024 %MWi internal words located internal data; 256 %KWi constant words located internal data; 512 %Mi located internal bits |
| Application structure | 64 event tasks; 1 periodic fast task; No auxiliary task; 1 cyclic/periodic master task |
| Execution time per instruction | 0.12 µs Boolean; 0.17 µs double-length words; 0.25 µs single-length words; 1.16 µs floating points |
| Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 8.1 Kinst/ms 100 % Boolean |
| System overhead | 0.13 ms for fast task; 0.7 ms for master task |
| Current consumption | 95 mA at 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE; UL; CSA; RCM; EAC; UKCA; China RoHS; WEEE; IEC; ATEX |
| Status LED | 1 LED (green) activity on Ethernet network (ETH ACT); 1 LED (green) processor running (RUN); 1 LED (green) status of Ethernet network (ETH STS); 1 LED (green) data rate (ETH 100); 1 LED (red) I/O module fault (I/O); 1 LED (red) memory card fault (CARD ERR); 1 LED (red) processor or system fault (ERR); 1 LED (yellow) activity on Modbus (SER COM) |
| Net weight | 0.205 kg |
Environment
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 |
| Protective treatment | Conformal coating |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2012/19/EU - WEEE directive; 2014/34/EU - ATEX directive |
| Product certifications | CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy; ATEX zone 2/22; IEC-Ex zone 2/22; UKEX zone 2/22; CCSAus HazLoc Class I Division 2 Group A; CCSAus HazLoc Class I Division 2 Group B; CCSAus HazLoc Class I Division 2 Group C; CCSAus HazLoc Class I Division 2 Group D |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G; IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant Kb/2 conforming to IEC 60068-2-52; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet BMXP342020H |
