Schneider Electric BMXP3420302 – processor module M340 - max 1024 discrete + 256 analog I/O - CANOpen
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon M340 |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3595864024455 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BMXP3420302 be shipped?
BMXP3420302 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXP3420302 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXP3420302 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXP3420302, subject to availability and destination.

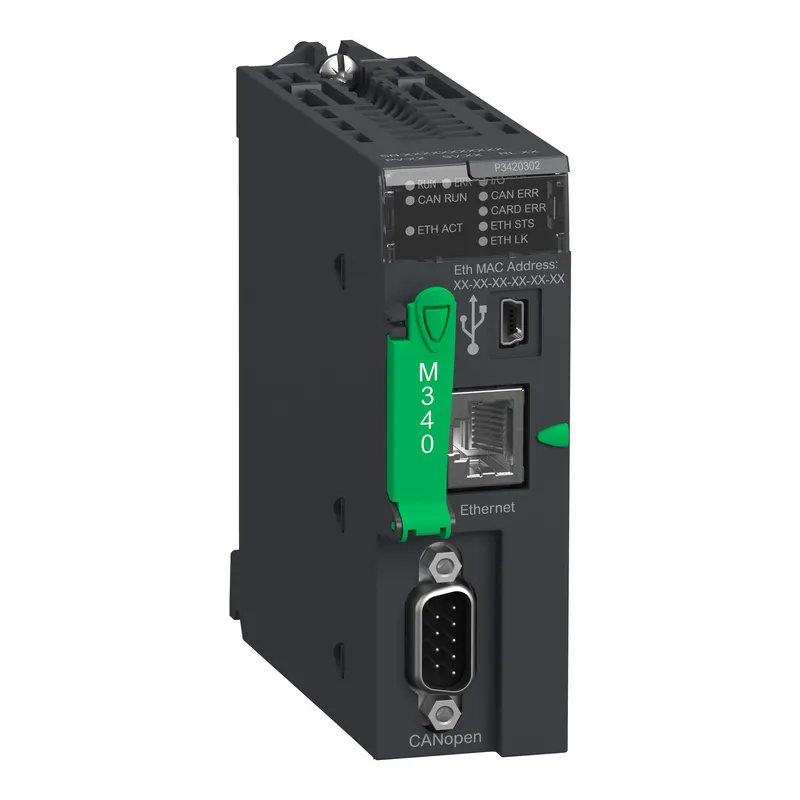

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 4 rack configuration, 36 application specific channels, 63 CANopen slaves and 11 slots. It is a processor module with a current consumption of 135mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports up to 800kbps 0m to 40m, 0m to 6m transmission rate. It weighs 0.215kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M340 automation platform |
| Product or component type | Processor module |
| Concept | CANopen; Transparent Ready |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 1024 I/O |
| Analogue I/O processor capacity | 256 I/O |
| Number of application specific channel | 36 |
Complementary
| Control channels | Programmable loops |
| Motion control | Independent axis CANopen |
| Integrated connection type | USB port at 12 Mbit/s; CANopen master bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 20 kbit/s...1 Mbit/s; Ethernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module; 4 AS-Interface module |
| embedded communication service | Network management (NMT) CANopen; Process Data Object (PDO) CANopen; Service Data Object (SDO) CANopen; Special functions (SYNC, EMCY, TIME) CANopen; Bandwidth management, Ethernet TCP/IP; Data Editor, Ethernet TCP/IP; Modbus TCP messaging, Ethernet TCP/IP; Rack Viewer, Ethernet TCP/IP; SNMP network administrator, Ethernet TCP/IP |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Transmission rate | 1 Mbit/s 0…20 m 0…0.6 m; 125 kbit/s 0…500 m 0…10 m; 20 kbit/s 0…2500 m 0…300 m; 250 kbit/s 0…250 m 0…10 m; 50 kbit/s 0…1000 m 0…120 m; 500 kbit/s 0…100 m 0…10 m; 800 kbit/s 0…40 m 0…6 m |
| Bus type | CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA; CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA; CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
| Number of server device(s) | 63 CANopen |
| Number of devices per segment | 0…16 for <205 m (CANopen); 0…32 for <185 m (CANopen); 0…64 for <160 m (CANopen) |
| Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data; Internal RAM 4096 kB; Internal RAM 256 kB data; Internal RAM 3584 kB program constants and symbols; Supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Maximum size of object areas | 32634 %Mi located internal bits; 32464 %MWi internal words; 32760 %KWi constant words |
| Default size of object areas | 1024 %MWi internal words located internal data; 256 %KWi constant words located internal data; 512 %Mi located internal bits |
| Application structure | 1 cyclic/periodic master task; 1 periodic fast task; No auxiliary task; 64 event tasks |
| Execution time per instruction | 0.12 µs Boolean; 0.17 µs double-length words; 0.25 µs single-length words; 1.16 µs floating points |
| Number of instructions per ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 8.1 Kinst/ms 100 % Boolean |
| System overhead | 0.13 ms for fast task; 0.7 ms for master task |
| Current consumption | 135 mA at 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE; UL; CSA; RCM; EAC; UKCA; China RoHS; WEEE; IEC |
| Status LED | 1 LED (green) activity on Ethernet network (ETH ACT); 1 LED (green) integrated machine/installation bus operational (CAN RUN); 1 LED (green) processor running (RUN); 1 LED (green) status of Ethernet network (ETH STS); 1 LED (green) data rate (ETH 100); 1 LED (red) I/O module fault (I/O); 1 LED (red) integrated machine/installation bus fault (CAN ERR); 1 LED (red) memory card fault (CARD ERR); 1 LED (red) processor or system fault (ERR) |
| Net weight | 0.215 kg |
Environment
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2012/19/EU - WEEE directive |
| Product certifications | CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy; CCSAus HazLoc Class I Division 2 Group A; CCSAus HazLoc Class I Division 2 Group B; CCSAus HazLoc Class I Division 2 Group C; CCSAus HazLoc Class I Division 2 Group D |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G |
