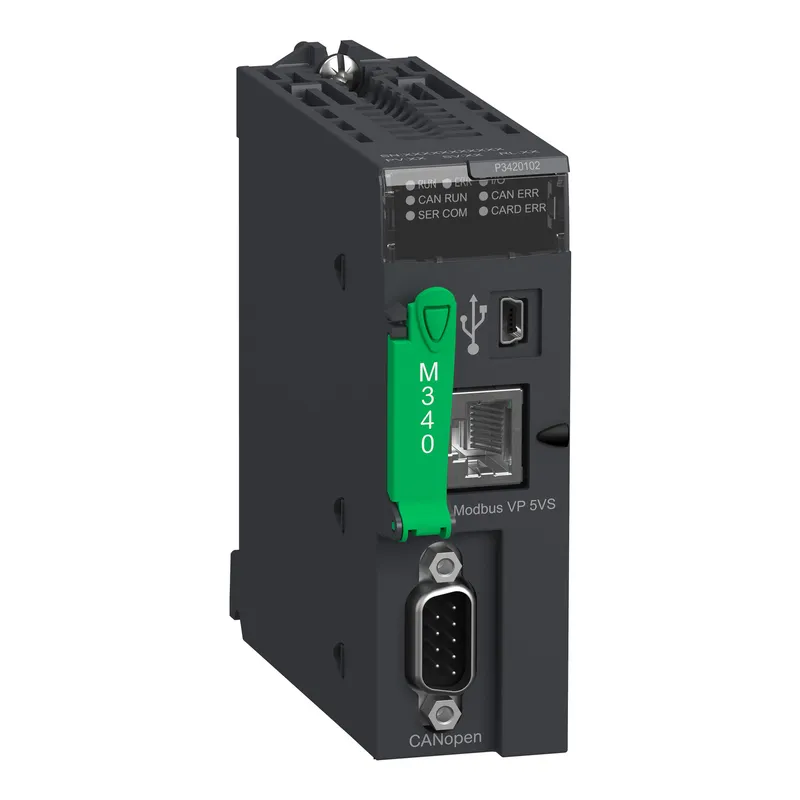

Schneider Electric BMXP3420102 – processor module M340 - max 1024 discrete + 256 analog I/O

Name: Schneider Electric BMXP3420102 – processor module M340 - max 1024 discrete + 256 analog I/O
Brand: Schneider Electric
SKU: BMXP3420102

MPN: BMXP3420102 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon M340
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3595864024448
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BMXP3420102 be shipped?

BMXP3420102 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXP3420102 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXP3420102 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXP3420102, subject to availability and destination.

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 4 rack configuration, 36 application specific channels, 63 CANopen slaves and 11 slots. It is a processor module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports up to 800kbps 0m to 40m, 0m to 6m transmission rate. It weighs 0.21kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M340 automation platform
Product or component type	Processor module
Concept	Modbus; CANopen
Number of racks	4
Local I/O processor capacity (discrete)	1024 I/O
Analogue I/O processor capacity	256 I/O
Number of application specific channel	36
Monitoring	Diagnostic counters Modbus; Event counters Modbus

Complementary

Control channels	Programmable loops
Motion control	Independent axis CANopen
Integrated connection type	Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex; Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; USB port at 12 Mbit/s; CANopen master bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 20 kbit/s...1 Mbit/s
Communication module processor capacity	2 Ethernet communication module; 4 AS-Interface module
embedded communication service	Network management (NMT) CANopen; Process Data Object (PDO) CANopen; Service Data Object (SDO) CANopen; Special functions (SYNC, EMCY, TIME) CANopen
Transmission rate	1 Mbit/s 0…20 m 0…0.6 m; 125 kbit/s 0…500 m 0…10 m; 20 kbit/s 0…2500 m 0…300 m; 250 kbit/s 0…250 m 0…10 m; 50 kbit/s 0…1000 m 0…120 m; 500 kbit/s 0…100 m 0…10 m; 800 kbit/s 0…40 m 0…6 m
Bus type	CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA; CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA; CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA
Number of server device(s)	63 CANopen
Number of devices per segment	0…32 (character mode); 0…32 (Modbus); 0…16 for <205 m (CANopen); 0…32 for <185 m (CANopen); 0…64 for <160 m (CANopen)
Number of devices	2 point-to-point character mode; 2 point-to-point Modbus
Bus length	0…10 m serial link non isolated character mode segment; 0…10 m serial link non isolated Modbus segment; 0…1000 m serial link isolated character mode segment; 0…1000 m serial link isolated Modbus segment; 0…15 m character mode point-to-point; 0…15 m Modbus point-to-point
Maximum tap links length	<15 m serial link non isolated character mode segment; <15 m serial link non isolated Modbus segment; <40 m serial link isolated character mode segment; <40 m serial link isolated Modbus segment
Number of addresses	0…248 for character mode; 0…248 for Modbus
Requests	1 K data bytes per request character mode; 252 data bytes per RTU request Modbus; 504 data bytes per ASCII request Modbus
Control parameter	One CRC on each frame (RTU) Modbus; One LRC on each frame (ASCII) character mode; One LRC on each frame (ASCII) Modbus
Memory description	Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data; Internal RAM 4096 kB; Internal RAM 256 kB data; Internal RAM 3584 kB program constants and symbols
Maximum size of object areas	32634 %Mi located internal bits; 32464 %MWi internal words; 32760 %KWi constant words
Default size of object areas	1024 %MWi internal words located internal data; 256 %KWi constant words located internal data; 512 %Mi located internal bits
Application structure	No auxiliary task; 1 cyclic/periodic master task; 1 periodic fast task; 64 event tasks
Execution time per instruction	0.12 µs Boolean; 0.17 µs double-length words; 0.25 µs single-length words; 1.16 µs floating points
Number of instructions per ms	6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 8.1 Kinst/ms 100 % Boolean
System overhead	0.13 ms for fast task; 0.7 ms for master task
Current consumption	90 mA at 24 V DC
Supply	Internal power supply via rack
Marking	CE; UL; CSA; RCM; EAC; UKCA; China RoHS; WEEE; IEC
Status LED	1 LED (green) integrated machine/installation bus operational (CAN RUN); 1 LED (green) processor running (RUN); 1 LED (red) I/O module fault (I/O); 1 LED (red) integrated machine/installation bus fault (CAN ERR); 1 LED (red) memory card fault (CARD ERR); 1 LED (red) processor or system fault (ERR); 1 LED (yellow) activity on Modbus (SER COM)
Net weight	0.21 kg

Environment

Ambient air temperature for operation	0…60 °C
Relative humidity	5…95 % without condensation
IP degree of protection	IP20
Protective treatment	TC
Directives	2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2012/19/EU - WEEE directive
Product certifications	CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy; CCSAus HazLoc Class I Division 2 Group A; CCSAus HazLoc Class I Division 2 Group B; CCSAus HazLoc Class I Division 2 Group C; CCSAus HazLoc Class I Division 2 Group D
Standards	IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G
