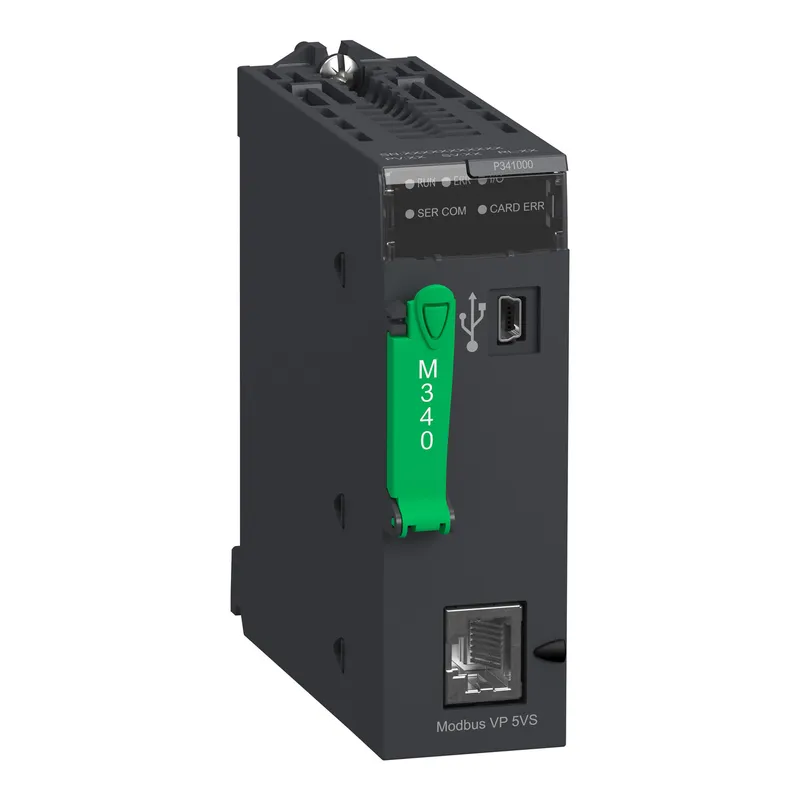

Schneider Electric BMXP341000 – processor module M340 - max 512 discrete + 128 analog I/O - Modbus
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon M340 |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3595863910698 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BMXP341000 be shipped?
BMXP341000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXP341000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXP341000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXP341000, subject to availability and destination.
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 2 rack configuration, 20 application specific channels and 11 slots. It is a module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 2 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 512 multi-rack configuration discrete I/O processor capacity and 128 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M340 automation platform |
| Product or component type | Processor module |
| Concept | Modbus |
| Number of racks | 2 |
| Local I/O processor capacity (discrete) | 512 I/O |
| Analogue I/O processor capacity | 128 I/O |
| Number of application specific channel | 20 |
| Monitoring | Diagnostic counters Modbus; Event counters Modbus |
Complementary
| Control channels | Programmable loops |
| Integrated connection type | Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex; Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; USB port at 12 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module; 2 AS-Interface module |
| Number of devices per segment | 0…32 (character mode); 0…32 (Modbus) |
| Number of devices | 2 point-to-point character mode; 2 point-to-point Modbus |
| Bus length | 0…10 m serial link non isolated character mode segment; 0…10 m serial link non isolated Modbus segment; 0…1000 m serial link isolated character mode segment; 0…1000 m serial link isolated Modbus segment; 0…15 m character mode point-to-point; 0…15 m Modbus point-to-point |
| Maximum tap links length | <15 m serial link non isolated character mode segment; <15 m serial link non isolated Modbus segment; <40 m serial link isolated character mode segment; <40 m serial link isolated Modbus segment |
| Number of addresses | 0…248 for character mode; 0…248 for Modbus |
| Requests | 1 K data bytes per request character mode; 252 data bytes per RTU request Modbus; 504 data bytes per ASCII request Modbus |
| Control parameter | One CRC on each frame (RTU) Modbus; One LRC on each frame (ASCII) character mode; One LRC on each frame (ASCII) Modbus |
| Memory description | Internal RAM 2048 kB; Internal RAM 128 kB data; Internal RAM 1792 kB program constants and symbols; Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data |
| Maximum size of object areas | 16250 %Mi located internal bits; 32464 %MWi internal words located internal data; 32760 %KWi constant words located internal data |
| Default size of object areas | 128 %KWi constant words located internal data; 256 %Mi located internal bits; 512 %MWi internal words located internal data |
| Application structure | 1 periodic fast task; 32 event tasks; 1 cyclic/periodic master task; No auxiliary task |
| Execution time per instruction | 0.18 µs Boolean; 0.26 µs double-length words; 0.38 µs single-length words; 1.74 µs floating points |
| Number of instructions per ms | 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 5.4 Kinst/ms 100 % Boolean |
| System overhead | 0.2 ms for fast task; 1.05 ms for master task |
| Current consumption | 72 mA at 24 V DC |
| Supply | Internal power supply via rack |
| Marking | CE; UL; CSA; RCM; EAC; UKCA; China RoHS; WEEE; IEC |
| Status LED | 1 LED (green) processor running (RUN); 1 LED (red) I/O module fault (I/O); 1 LED (red) memory card fault (CARD ERR); 1 LED (red) processor or system fault (ERR); 1 LED (yellow) activity on Modbus (SER COM) |
| Net weight | 0.2 kg |
Environment
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2012/19/EU - WEEE directive |
| Product certifications | CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy; CCSAus HazLoc Class I Division 2 Group A; CCSAus HazLoc Class I Division 2 Group B; CCSAus HazLoc Class I Division 2 Group C; CCSAus HazLoc Class I Division 2 Group D |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G |
