Schneider Electric

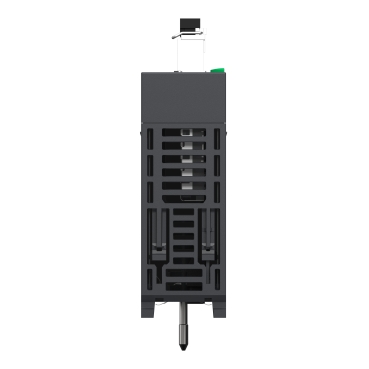

Schneider Electric BMXNRP0201

Fiber converter module;Modicon X80;single mode

MPN: BMXNRP0201
EAN: 3595864144467
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXNRP0201?

This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports single mode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 15000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Specifications

Range of product	Modicon X80
Product or component type	Fibre optic repeater
Optic fiber type	Single mode
Rated voltage	24 V
Current consumption	140 mA typical, 200 mA maximum
Function available	Hot swap
Number of port	2 RJ45 with 100BASE-TX port Ethernet conforming to IEEE 802.3u, 2 fiber optic with 100BASE-FX port Ethernet conforming to IEEE 802.3u
Local signalling	1 LED (green) for power supply status, 1 LED (red) for error condition (ERR), 2 LEDs (green) for link status, 2 LEDs (green) for fiber port state and activity
Wavelength	1310 nm
operating distance	0...15000 m
Attenuation	-15…-8 dB (9/125 µm)
Rise/fall time	2.5 ns
Receiver sensitivity	- 31...- 8 dBm
Marking	CE
Width	32 mm
Height	100 mm
Depth	86 mm
Net weight	203 g
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…70 °C
Relative humidity	0…95 %
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certifications	CE, RCM, CSA, EAC, Merchant Navy, UL
Standards	IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Dielectric strength	1400 V DC between field and bus, 500 V DC between channels
IP degree of protection	IP20
Operating altitude	0...4000 m

Packaging

Package 1	1 PCE, 13.000 cm × 11.000 cm × 5.800 cm (L × W × H), 250.000 g
Package 2	14 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.840 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet BMXNRP0201PDF

BMXNRP0201: frequently asked questions

When can BMXNRP0201 be shipped?

BMXNRP0201 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXNRP0201 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXNRP0201 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXNRP0201, subject to availability and destination.
