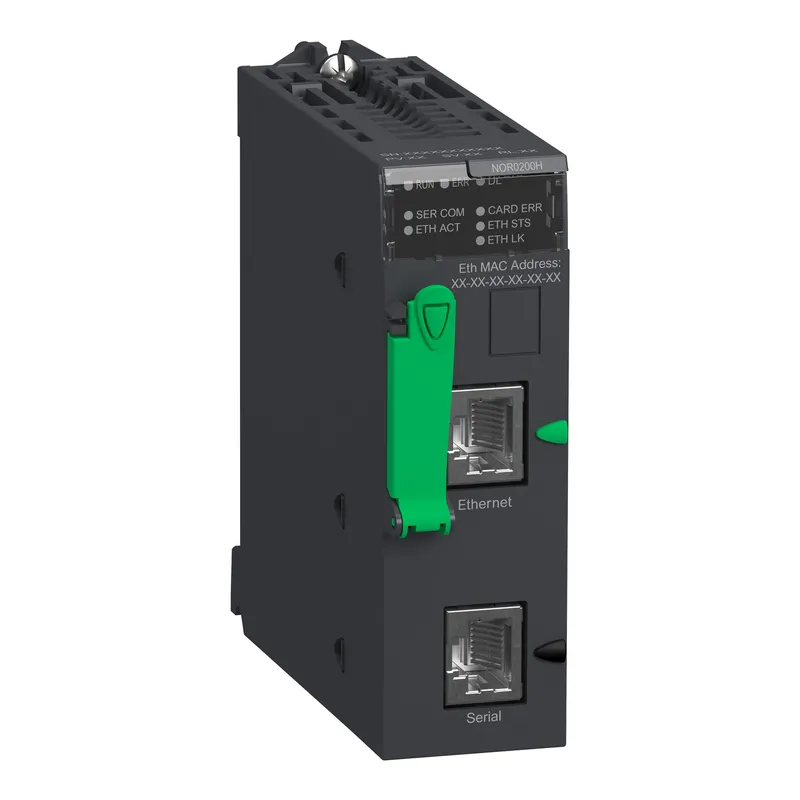

Schneider Electric BMXNOR0200H – Ethernet / Serial RTU module - 2 x RJ45

Name: Schneider Electric BMXNOR0200H – Ethernet / Serial RTU module - 2 x RJ45
Brand: Schneider Electric
SKU: BMXNOR0200H

MPN: BMXNOR0200H · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon M340
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3595864105314
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BMXNOR0200H be shipped?

BMXNOR0200H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXNOR0200H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXNOR0200H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXNOR0200H, subject to availability and destination.

This product is part of Modicon M340 range, a mid-range PAC for industrial process and infrastructure control. This communication module enables M580 and M340 platforms to use RTU protocol exchange with RTU stations. It is an RTU module with a current consumption of 95mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with Ethernet RJ45 10/100Mbps and serial RS232/485 RJ45 300/38400bps 1 twisted pair transparent ready class C30 for integrated connections. It is an IP20 rated product. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash SD memory card (BMXRWS128MWF) 128000kB. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Compact-shaped, Modicon M340 offers flexibility and integrated functions in a small box. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M340
Product or component type	Communication module
Integrated connection type	Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30; Serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30
Protective treatment	Conformal coating

Complementary

Communication service	Bandwidth management; Modbus TCP messaging; DNP3/DNP3 IP protocol; IEC 60870-5 -101/-104 protocol; Time stamped events management; External modem management (serial, PSTN, GSM, GPRS/3G); Data logging in CSV files; Email/SMS notifications; Web server, rack viewer, data editor; BootP, DHCP, FDR client; SMTP server, FTP client/server, NTP client, SNMP agent,; Automatic events backup on power loss; Multi-protocols support in a single module (master and slave); Transparent events routing from remote slaves to SCADA
Port Ethernet	10BASE-T/100BASE-TX
Memory description	Supplied Flash SD memory card (BMXRWS128MWF) 128000 kB
Memory usage	Activating the standard web server; User web pages storage; Data logging CSV files storage
Supply	Internal power supply via rack
Local signalling	1 LED (green) for activity on Ethernet network (ETH ACT); 1 LED (green) for processor running (RUN); 1 LED (green) for status of Ethernet network (ETH STS); 1 LED (red) for memory card fault (CARD ERR); 1 LED (red) for processor or system fault (ERR); 1 LED (red) for download in progress (DL); 1 LED (yellow) for serial communication (SER COM); 1 LED (green) for data rate (ETH LINK)
Current consumption	95 mA at 24 V DC
Module format	Standard
Net weight	0.2 kg

Environment

Ambient air temperature for operation	-25…70 °C
Relative humidity	10…95 % without condensation
IP degree of protection	IP20
Directives	2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2014/34/EU - ATEX directive
Product certifications	CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22; UKCA
Standards	IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; IEC 61000-6-5, interface type 1 and type 2; IEC 61850-3, location G; IEC 60079-0
Environmental characteristic	Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant level 2 conforming to IEC 68252; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3; Hazardous location class I division 2
