Schneider Electric BMXCPS4022S

Redundant power supply module, Modicon X80, 24 to 48V DC, safety

MPN: BMXCPS4022S
EAN: 3606489562496
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXCPS4022S?

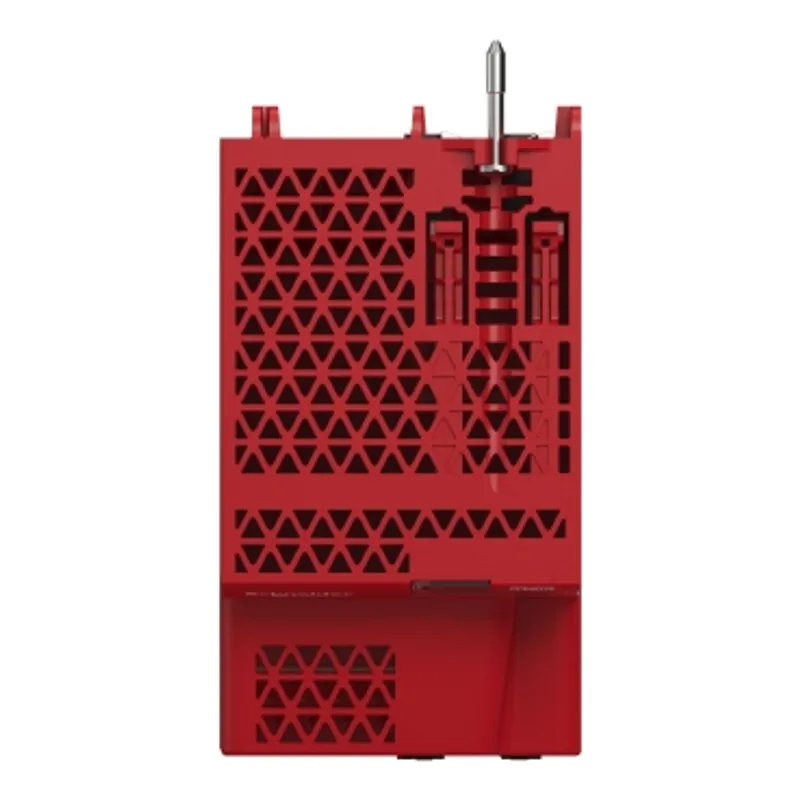

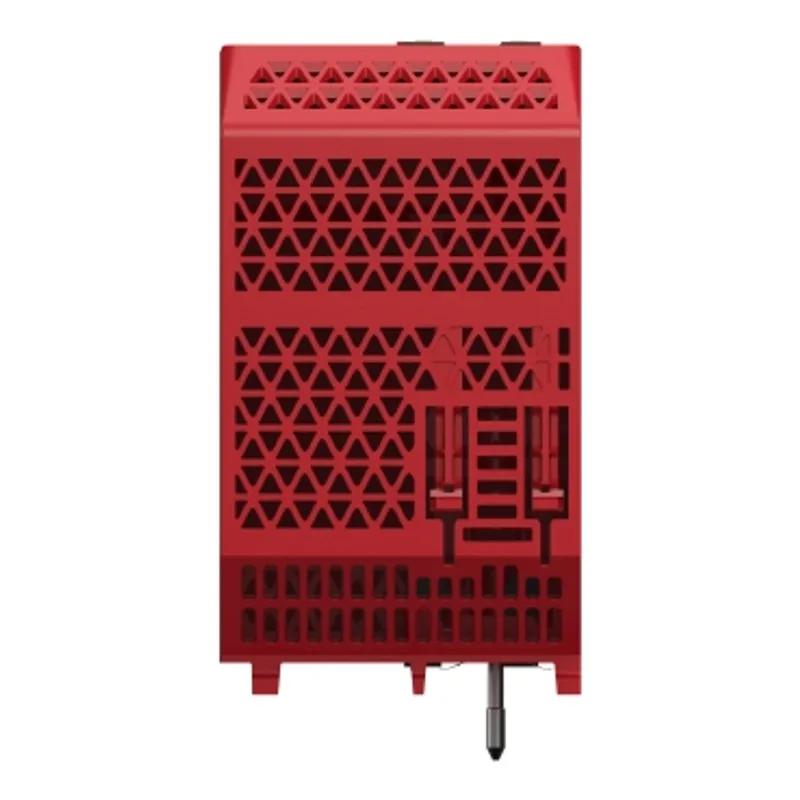

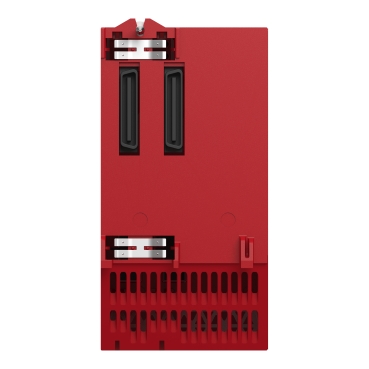

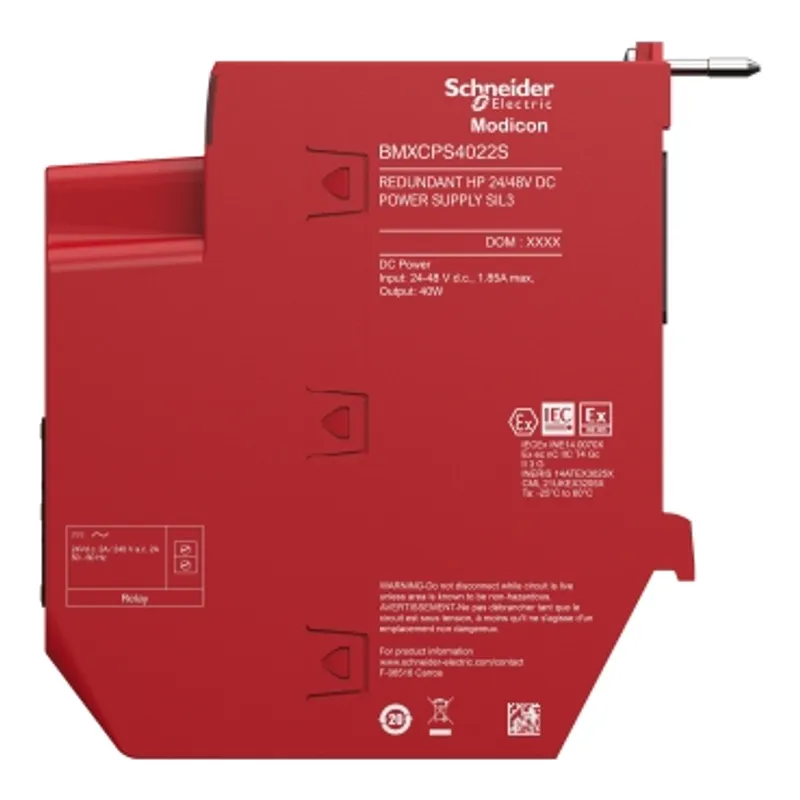

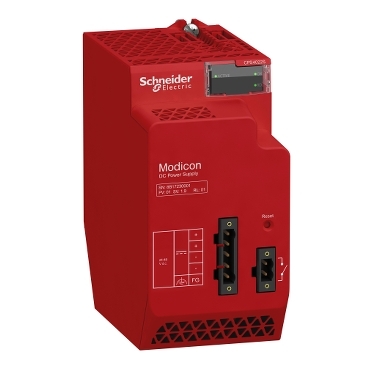

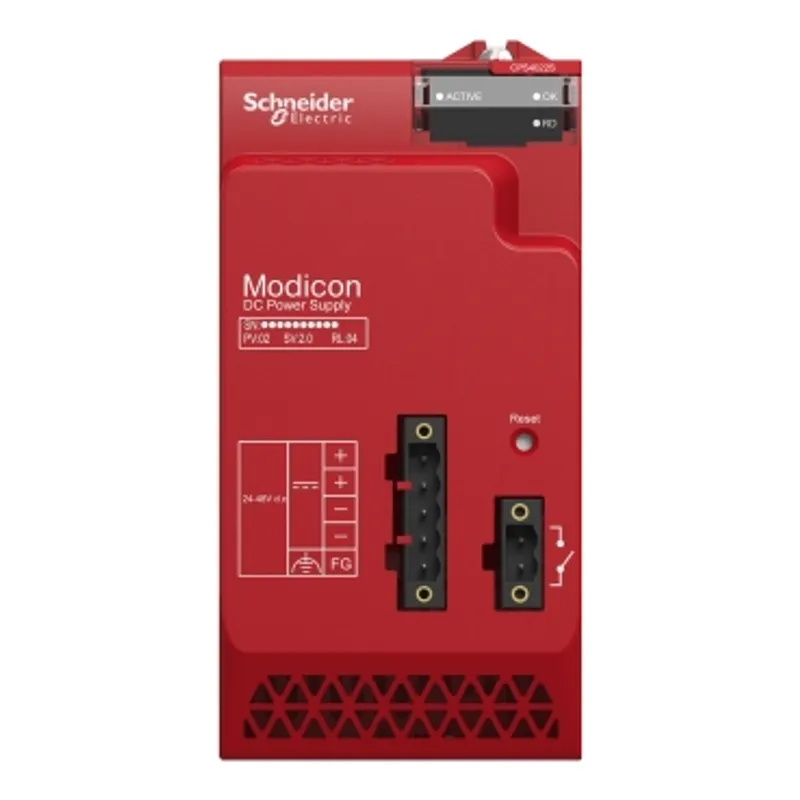

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). On the front face of the power supply, 2 connectors (2-way and 5-way) can take a removable terminal block. It converts 24…48 V DC current into 24 V DC and 3.3 V DC output voltages, distributed over the backplane. This safety power supply can provide advanced diagnostics that simplify maintenance by predicting when to replace power supply before it fails. It detects overvoltage, overload, and short-circuit conditions on 24 V DC and 3.3 V DC backplane lines. It can be installed in any rack, main or extended local rack, main or extended remote rack. It has a red coating specific to Safety products. For high-availability applications, two independent redundant power supplies can be used to increase the security of the power supply. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. The safety power supply is provided with Set of two caged removable terminal blocks. A set of two caged removable terminal blocks (5-way and 2-way) is included in the power supply package. The power supply has to be inserted in the leftmost dedicated slots on each rack (marked CPS). Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of product	Modicon X80
Product or component type	Power supply module
backplane compatibility	All backplane
advanced diagnostics available via network	Redundancy information, Redundancy test, Remaining lifetime, Temperature sensing, Uptime duration
Primary voltage	24...48 V
Supply circuit type	DC
Secondary power	18 W 3.3 V DC at -25…60 °C I/O module logic power supply, 40 W 24 V DC at -25…60 °C I/O module power supply and processor if 3.3 V not loaded
Primary voltage limit	18...62.4 V
Input current	1.9 A 24 V, 1 A 48 V
Inrush current	60 A 24 V, 60 A 48 V
I²t on activation	1 A².s 24 V, 3 A².s 48 V
It on activation	0.3 A.s 24 V, 0.4 A.s 48 V
MTBF reliability	721000 H
Protection type	Internal fuse not accessible for primary circuit, Overload protection for secondary circuit, Overvoltage protection for secondary circuit, Short-circuit protection for secondary circuit
Current at secondary voltage	1.67 A 24 V DC I/O module logic power supply, 5 A 3.3 V DC I/O module power supply and processor
Maximum power dissipation in W	8.5 W
Status LED	1 LED (green) presence of voltages (OK), 1 LED (green) redundancy OK, 1 LED (green) power supply status
Control type	RESET push-button cold restart
Electrical connection	1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth
Maximum cable distance between devices	10 m, 15 m
Insulation resistance	>= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Net weight	0.81 kg
Immunity to microbreaks	1 ms
Dielectric strength	1500 V primary/ground, 1500 V primary/secondary
Vibration resistance	3 gn
Shock resistance	15 gn
IP degree of protection	IP20
Directives	2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery, 2014/34/EU - ATEX directive
Product certifications	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, TÜV
Standards	IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0
Environmental characteristic	Hazardous location class I division 2, Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-25…60 °C
Relative humidity	5…95 % at 55 °C without condensation
Protective treatment	Conformal coating
Operating altitude	0...2000 m, 2000...5000 m with derating factor

Packaging

Package 1	1 PCE, 25.000 cm × 18.000 cm × 9.000 cm (L × W × H), 679.000 g
Package 2	6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.790 kg
