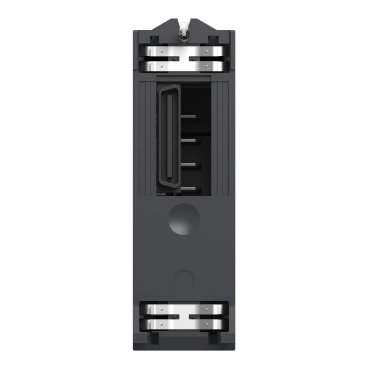

Schneider Electric BMXDAI0805
Discrete input module, Modicon X80, 8 inputs, 200 to 240V AC
- MPN
- BMXDAI0805
- EAN
- 3595864081595
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXDAI0805?
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels and it is supplied with 200 to 240V AC. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It has an external fuse per group of channel 0.5A fast blow protection type. This product is IP20 rated and offers 1716885 hours of MTBF. This discrete module has a weight of 0.12kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 1 standards. This module is compatible with Modicon M340 and Modicon M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Discrete input module |
| Discrete input number | 8 |
| Discrete input type | Isolated |
| Input type | Capacitive |
| Discrete input voltage | 200...240 V AC |
| Discrete input current | 10.4 mA |
| Input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2, With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 2 |
| Network frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Sensor power supply | 170...264 V |
| Current state 1 guaranteed | >= 6 mA |
| Current state 0 guaranteed | <= 4 mA |
| Input impedance | 21000 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 4.73 W |
| AC activation response time | 10 ms |
| AC deactivation response time | 20 ms |
| Typical current consumption | 76 mA at 3.3 V DC, 93.6 mA at 24 V DC |
| Current consumption | <= 126 mA at 3.3 V DC, <= 154.8 mA at 24 V DC |
| MTBF reliability | 1700000 H |
| Protection type | 1 external fuse per group of channel0.5 A fast blow |
| Voltage detection threshold | > 164 V AC sensor OK, < 80 V AC sensor fault |
| Status LED | 1 LED (green) module operating (RUN), 1 LED per channel (green) channel diagnostic, 1 LED (red) module error (ERR), 1 LED (red) module I/O |
| Net weight | 0.12 kg |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 min |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Standard version |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
Packaging
| Package 1 | 1 PCE, 11.800 cm × 11.800 cm × 5.500 cm (L × W × H), 158.000 g |
| Package 2 | 15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.700 kg |
