Schneider Electric BMXCPS4022

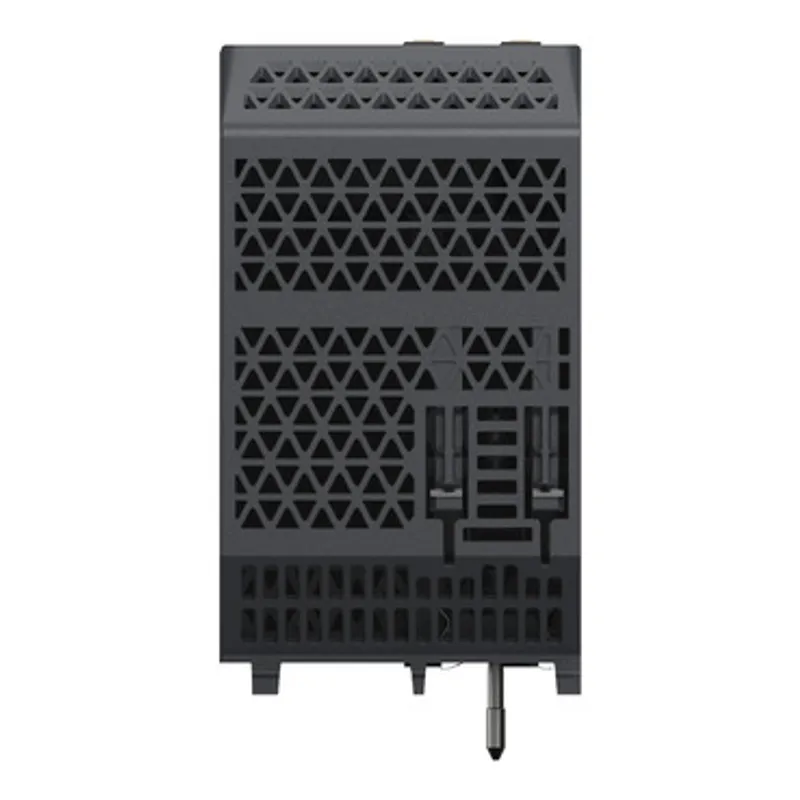

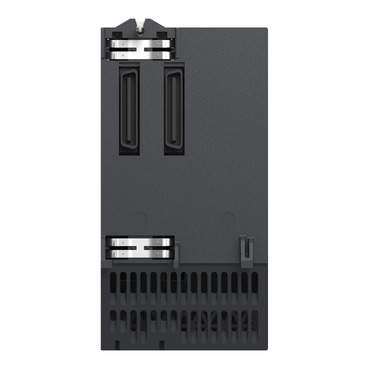

Redundant power supply module, Modicon X80, 24 to 48V DC

MPN: BMXCPS4022
EAN: 3606481179074
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXCPS4022?

This power supply is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This redundant power supply module has a primary voltage of 24V to 48V DC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.81kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. The product must be installed on the rack and fixed with 2 screws. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Specifications

Range of product	Modicon X80
Product or component type	Power supply module
backplane compatibility	All backplane
advanced diagnostics available via network	Redundancy information, Redundancy test, Temperature sensing, Remaining lifetime, Uptime duration
Primary voltage	24...48 V
Supply circuit type	DC
Secondary power	18 W 3.3 V DC at 0…60 °C I/O module logic power supply, 40 W 24 V DC at 0…60 °C I/O module power supply and processor if 3.3 V not loaded
Primary voltage limit	18...62.4 V
Input current	1.9 A 24 V, 1 A 48 V
Inrush current	60 A 48 V, 60 A 24 V
I²t on activation	0.4 A².s 24 V, 1.9 A².s 48 V
It on activation	0.05 A.s 24 V, 0.08 A.s 48 V
MTBF reliability	752000 H
Protection type	Internal fuse not accessible for primary circuit, Overload protection for secondary circuit, Overvoltage protection for secondary circuit, Short-circuit protection for secondary circuit
Current at secondary voltage	5.5 A 3.3 V DC I/O module logic power supply, 1.67 A 24 V DC I/O module power supply and processor
Maximum power dissipation in W	8.5 W
Status LED	1 LED (green) presence of voltages (OK), 1 LED (green) redundancy OK, 1 LED (green) power supply status
Control type	RESET push-button cold restart
Electrical connection	1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth
Maximum cable distance between devices	10 m, 15 m
Insulation resistance	>= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Net weight	0.81 kg
Immunity to microbreaks	1 ms
Dielectric strength	1500 V primary/ground, 1500 V primary/secondary
IP degree of protection	IP20
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Environmental characteristic	3C3 conforming to IEC 60721-3-3, 3C4 conforming to IEC 60721-3-3
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	0…60 °C
Relative humidity	10…95 % without condensation

Packaging

Package 1	1 PCE, 25.500 cm × 18.000 cm × 9.500 cm (L × W × H), 666.000 g
Package 2	6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.680 kg
