Schneider Electric

Schneider Electric BMXAMM0600

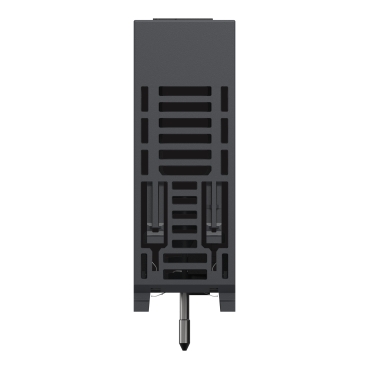

Analog high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative

MPN
BMXAMM0600
EAN
3595863966268
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXAMM0600?

This analog non isolated input and output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 input channels and 2 output channels. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1364412 hours of MTBF. This analog module has a weight of 0.155kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Specifications

Specifications

Range of productModicon X80
Product or component typeMixed analog I/O module
Electrical connection20 ways 1 connector
Isolation between channelsNon isolated
Input levelHigh level
Analogue input number4
Analogue input typeCurrent 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1...5 V
Analogue input resolution12 bits 0...20 mA, 12 bits 0...5 V, 12 bits 1...5 V, 12 bits 4...20 mA, 13 bits 0...10 V, 14 bits +/- 10 V
Permitted overload on inputs+/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V
Input impedance250 Ohm
Precision of internal conversion resistor0.1 % - 15 ppm/°C
Type of filterFirst order digital filtering by firmware
Fast read cycle time1 ms + 1 ms x number of channels used
Nominal read cycle time5 ms for 4 channels
Measurement error0.25 % of full scale 0...20 mA 25 °C output, 0.25 % of full scale 4...20 mA 25 °C output, <= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale 0...10 V 0...60 °C input, <= 0.35 % of full scale 0...5 V 0...60 °C input, <= 0.35 % of full scale 1...5 V 0...60 °C input, <= 0.5 % of full scale 0...20 mA 0...60 °C input, <= 0.5 % of full scale 4...20 mA 0...60 °C input, <= 0.6 % of full scale +/- 10 V 0...60 °C output, <= 0.6 % of full scale 0...20 mA 0...60 °C output, <= 0.6 % of full scale 4...20 mA 0...60 °C output, 0.25 % of full scale +/- 10 V 25 °C output, 0.25 % of full scale +/- 10 V 25 °C input, 0.25 % of full scale 0...10 V 25 °C input, 0.25 % of full scale 0...5 V 25 °C input, 0.25 % of full scale 1...5 V 25 °C input, 0.35 % of full scale 0...20 mA 25 °C input, 0.35 % of full scale 4...20 mA 25 °C
Temperature drift100 ppm/°C +/- 10 V output, 100 ppm/°C 0...20 mA output, 100 ppm/°C 4...20 mA output, 30 ppm/°C +/- 10 V input, 30 ppm/°C 0...10 V input, 30 ppm/°C 0...5 V input, 30 ppm/°C 1...5 V input, 50 ppm/°C 0...20 mA input, 50 ppm/°C 4...20 mA input
RecalibrationFactory calibrated on outputs, Internal on inputs
Minimum crosstalk attenuation70 dB
Common mode rejection80 dB
Isolation voltage1400 V DC between channels and ground, 1400 V DC between channels and bus, 750 V DC between group of I/O channels
Output levelHigh level
Analogue output number2
Analogue output typeCurrent: 0...20 mA, Current: 4...20 mA, Voltage: +/- 10 V
Analogue output resolution11 bits, 0...20 mA, 11 bits, 4...20 mA, 12 bits, +/- 10 V
Conversion time<= 2 ms
Maximum conversion value+/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V input, 0...30 mA 0...20 mA input, 0...30 mA 4...20 mA input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 1...5 V input, 0...24 mA 0...20 mA output, 0...24 mA 4...20 mA output
Fallback modePredefined, Configurable
MTBF reliability1400000 H
Operating altitude0...2000 m, 2000...5000 m with derating factor
Status LED1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O
Net weight0.155 kg
Power consumption in W2.6 W 24 V DC typical, 3.2 W 24 V DC maximum, 0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Current consumption240 mA at 3.3 V DC
Vibration resistance3 gn
Shock resistance30 gn
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation0…60 °C
Relative humidity5…95 % at 55 °C without condensation
IP degree of protectionIP20
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certificationsCE, RCM, CSA, EAC, Merchant Navy, UL
StandardsIEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Protective treatmentStandard version

Packaging

Package 11 PCE, 11.600 cm × 11.000 cm × 5.500 cm (L × W × H), 172.000 g
Package 215 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.882 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BMXAMM0600: frequently asked questions

When can BMXAMM0600 be shipped?

BMXAMM0600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXAMM0600 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXAMM0600 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXAMM0600, subject to availability and destination.
