Schneider Electric BMXAMI0410H

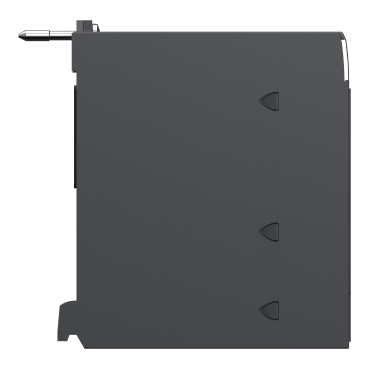

Analog isolated high level input module, Modicon X80, 4 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
- MPN
- BMXAMI0410H
- EAN
- 3595864025568
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXAMI0410H?
This analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 input channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with 20-way connector for electrical connection. This product is IP20 rated and offers 1208015 hours of MTBF. This analog module has a weight of 0.143kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Analog input module |
| Product specific application | For severe environments |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Isolated |
| Input level | High level |
| Analogue input number | 4 |
| Analogue input type | Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage +/- 5 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1...5 V |
| Analog/digital conversion | 24 bits |
| Analogue input resolution | 16 bits |
| Permitted overload on inputs | +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 90 mA +/- 20 mA, +/- 90 mA 0...20 mA, +/- 90 mA 4...20 mA |
| Input impedance | 10 MOhm in voltage mode, 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Type of filter | First order digital filtering |
| Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Nominal read cycle time | 5 ms for 4 channels |
| Measurement error | 0.075 % of full scale +/- 10 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.15 % of full scale +/- 20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale 4...20 mA 25 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale 4...20 mA - 25...70 °C |
| Temperature drift | 15 ppm/°C +/- 10 V, 15 ppm/°C +/- 5 V, 15 ppm/°C 0...10 V, 15 ppm/°C 0...5 V, 15 ppm/°C 1...5 V, 30 ppm/°C +/- 20 mA, 30 ppm/°C 0...20 mA, 30 ppm/°C 4...20 mA |
| Recalibration | Internal |
| Minimum crosstalk attenuation | 80 dB |
| Common mode rejection | 90 dB |
| Digital value format | - 32768 to + 32767 in maximum user scale, +/- 10000 by default |
| Isolation voltage | 300 V DC between channels, 1400 V DC between channels and ground, 1400 V DC between channels and bus |
| Measurement resolution | 0.35 mV +/- 10 V, 0.35 mV +/- 5 V, 0.35 mV 0...10 V, 0.35 mV 0...5 V, 0.35 mV 1...5 V, 0.92 µA +/- 20 mA, 0.92 µA 0...20 mA, 0.92 µA 4...20 mA |
| Maximum conversion value | +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 5 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, 0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA |
| MTBF reliability | 1200000 H |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O |
| Net weight | 0.143 kg |
| Power consumption in W | 0.82 W 24 V DC typical, 1.30 W 24 V DC maximum, 0.32 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum |
| Current consumption | 150 mA at 3.3 V DC, 45 mA at 24 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE, RCM, CSA, EAC, Merchant Navy, UL, ATEX, IEC-Ex |
| Standards | IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Environmental characteristic | Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2, Hazardous location |
| Protective treatment | Conformal coating |
Packaging
| Package 1 | 1 PCE, 11.900 cm × 11.700 cm × 5.400 cm (L × W × H), 180.000 g |
| Package 2 | 15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.077 kg |
No matching specifications
