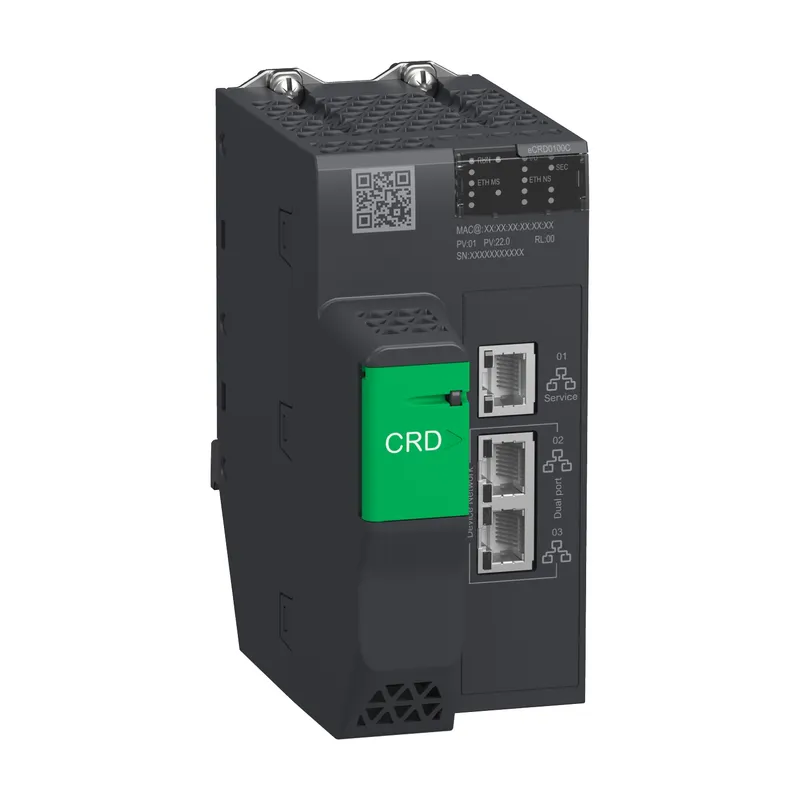

Schneider Electric BMECRD0100C

Remote IO, EcoStruxure Automation Expert, Modicon X80 adapter for dPAC, Ethernet, conformal coated

MPN: BMECRD0100C
EAN: 3606482196742
Category: Modicon M580

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Schneider Electric BMECRD0100C?

The Modicon X80 Ethernet Remote IO adapter for dPAC is part of the EcoStruxure Automation Expert hardware controller range. It is a high performance dPAC controller that supports the Modicon X80 I/O catalog. The Ethernet Remote IO adapter supports up to 1024 discrete I/O channels, 256 analogue I/O channels and 4 local racks of Modicon X80 I/O. The Ethernet Remote IO adapter is compatible with all Modicon X80 racks, power supplies, and Modicon X80 I/Os. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 and IEC/EN/UL/CSA 61010-2-201, IEC/EN 61000-6-5, IEC/EN 61850-3, EN 50155/IEC 60571, CE ATEX (2014/34/EU), 2014/35/EU, 2014/30/EU and 2006/42/EC standards. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	EcoStruxure Automation Expert
Product or component type	DPAC module
Device application	X80 Ethernet RIO drop adaptor
Product specific application	For remote I/O modules
Condition of use	SoftdPAC required
Protective treatment	Conformal coating

Complementary

Bus type	Bus X across the remote backplane; Ethernet across the remote backplane
Product compatibility	0…1024 discrete channel; 0…256 analog channel; HART module
Integrated connection type	1 Ethernet TCP/IP for service or distributed equipment; 2 Ethernet TCP/IP for Ethernet RIO Network (RSTP)
Transmission rate	10/100 Mbit/s
Port Ethernet	10/100BASE-TX
Communication network type	IPv4 (internet protocol); IPv6 (internet protocol)
Communication port protocol	EtherNet/IP
Communication service	Ethernet/IP adapter; RSTP (Ring topology support); Ethernet RIO network; Quality of Service (QoS); DHCP client; TFTP client; FTP client; FDR client; NTP client
Cybersecurity	Firmware signature
Exchange mode	Half duplex, full duplex, autonegotiation, auto MDIX
Function available	Input data is collected and published to the remote I/O head adaptor; Output modules are updated with the data received from remote I/O head adaptor; System time stamping; I/O extension rack
Topology	Ring
Local signalling	1 LED (green) for module active (RUN); 1 LED (red) for I/O error (I/O); 1 LED (green/red) for module status (Mod Status); 1 LED (green/red) for network communication status (Net Status); 1 LED (green) for download in progress (DL); 1 LED (green/red) for cyber security (SEC)
Current consumption	295 mA
Input voltage	24 V DC
Module format	Double
fixing mode	By screws
Mounting mode	Rack-mounted
Width	64 mm
Height	131 mm
Depth	131 mm
Net weight	0.849 kg

Environment

Marking	CE
Directives	2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2014/34/EU - ATEX directive
Product certifications	CE; UKCA; RCM; CULus; EAC; Merchant Navy; Hazardous location class 1, division 2; ATEX zone 2/22; IECEx zone 2/22
Standards	EN/IEC 61131-2; EN/IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G; EN/IEC 60079-0; UL 121201; CSA C22.2 No 213
Environmental characteristic	Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant level 2 conforming to IEC 68252; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
IP degree of protection	IP20
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Operating altitude	0...2000 m
Relative humidity	5…95 % without condensation
