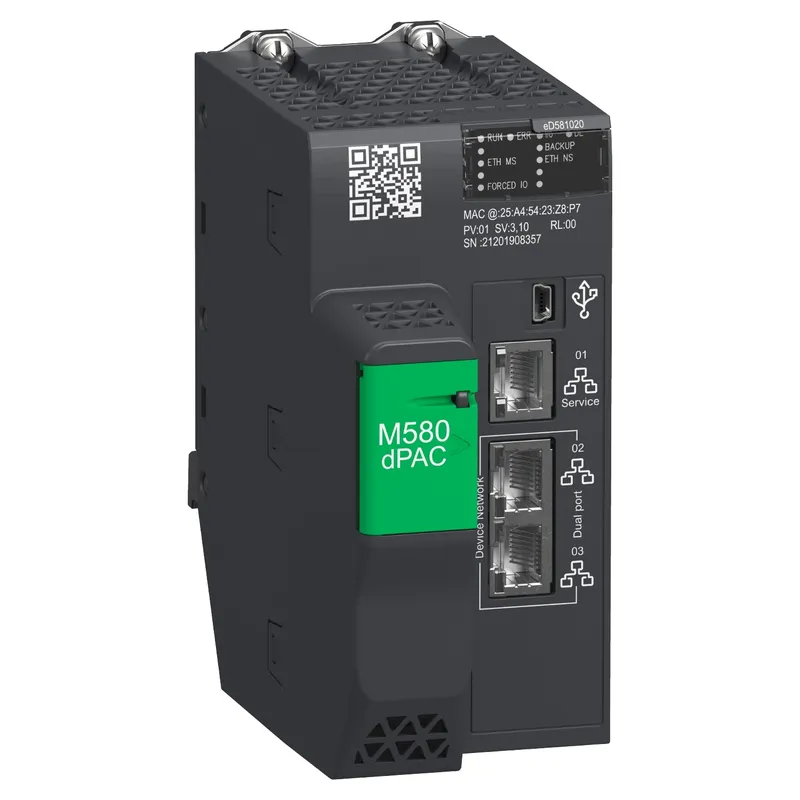

Schneider Electric BMED581020C
Modicon M580 dPAC conformal coated module
- MPN
- BMED581020C
- EAN
- 3606481907189
- Category
- Modicon M580
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMED581020C?
The conformal coated Modicon M580 dPAC is part of the EcoStructure Automation Expert controller range. It is a high performance dPAC controller that supports the Modicon X80 I/O catalog. The controller supports up to 1024 discrete I/O channels, 256 analogue I/O channels and 4 local racks of Modicon X80 I/O. It is a high-performance, ruggedized IEC 61499 compliant field controller based on the widely successful Modicon M580 ePAC. It includes 64MB ECC RAM for programs and data and supports Modbus/TCP, Ethernet/IP and OPC UA and auto discovery. The controler is compatible with most Modicon X80 racks, power supplies and I/O. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 and IEC/EN/UL/CSA 61010-2-201, IEC/EN 61000-6-5, IEC/EN 61850-3, EN 50155/IEC 60571, CE ATEX (2014/34/EU), 2014/35/EU, 2014/30/EU and 2006/42/EC standards. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M580 |
| Product or component type | Processor module |
Complementary
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 1024 I/O |
| Local I/O processor capacity (analog) | 256 I/O |
| Integrated connection type | 1 Ethernet TCP/IP for service port; 2 Ethernet TCP/IP for device network |
| Number of distributed equipment | 64 |
| Memory description | Integrated RAM, 64 MB for program and data |
| Current consumption | 295 mA at 24 V DC |
| MTBF reliability | 600000 H |
| Marking | CE |
Environment
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m; 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2006/42/EC - machinery |
| Product certifications | CE; UL; CSA; EAC |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; IACS E10 |
| Environmental characteristic | Hazardous location class I division 2 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN); 1 LED (red) processor or system fault (ERR); 1 LED (red) I/O module fault (I/O); 1 LED (green) download in progress (DL); 1 LED (red) I/O values overrided by user (FORCED IO); 1 LED (green/red) ETH MS (Ethernet port configuration status); 1 LED (green/red) Eth NS (Ethernet network status) |
| Net weight | 0.849 kg |
