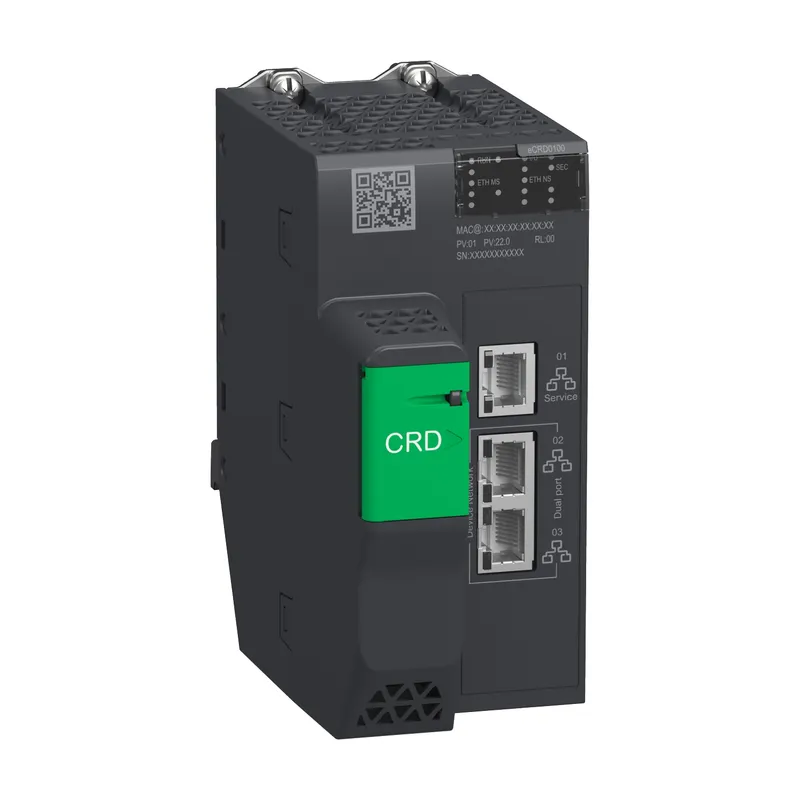

Schneider Electric BMECRD0100
Remote IO, EcoStruxure Automation Expert, Modicon X80 adapter for dPAC, Ethernet
- MPN
- BMECRD0100
- EAN
- 3606482196735
- Category
- Modicon M580
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMECRD0100?
The Modicon X80 Ethernet Remote IO adapter for dPAC is part of the EcoStruxure Automation Expert hardware controller range. It is a high performance dPAC controller that supports the Modicon X80 I/O catalog. The Ethernet Remote IO adapter supports up to 1024 discrete I/O channels, 256 analogue I/O channels and 4 local racks of Modicon X80 I/O. The Ethernet Remote IO adapter is compatible with all Modicon X80 racks, power supplies, and Modicon X80 I/Os. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 and IEC/EN/UL/CSA 61010-2-201, IEC/EN 61000-6-5, IEC/EN 61850-3, EN 50155/IEC 60571, CE ATEX (2014/34/EU), 2014/35/EU, 2014/30/EU and 2006/42/EC standards. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | EcoStruxure Automation Expert |
| Product or component type | DPAC module |
| Device application | X80 Ethernet RIO drop adaptor |
| Product specific application | For remote I/O modules |
| Condition of use | SoftdPAC required |
Complementary
| Bus type | Bus X across the remote backplane; Ethernet across the remote backplane |
| Product compatibility | 0…1024 discrete channel; 0…256 analog channel; HART module |
| Integrated connection type | 1 Ethernet TCP/IP for service or distributed equipment; 2 Ethernet TCP/IP for Ethernet RIO Network (RSTP) |
| Transmission rate | 10/100 Mbit/s |
| Port Ethernet | 10/100BASE-TX |
| Communication network type | IPv4 (internet protocol); IPv6 (internet protocol) |
| Communication port protocol | EtherNet/IP |
| Communication service | Ethernet/IP adapter; RSTP (Ring topology support); Ethernet RIO network; Quality of Service (QoS); DHCP client; TFTP client; FTP client; FDR client; NTP client |
| Cybersecurity | Firmware signature |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Function available | Input data is collected and published to the remote I/O head adaptor; Output modules are updated with the data received from remote I/O head adaptor; System time stamping; I/O extension rack |
| Topology | Ring |
| Local signalling | 1 LED (green) for module active (RUN); 1 LED (red) for I/O error (I/O); 1 LED (green/red) for module status (Mod Status); 1 LED (green/red) for network communication status (Net Status); 1 LED (green) for download in progress (DL); 1 LED (green/red) for cyber security (SEC) |
| Current consumption | 295 mA |
| Input voltage | 24 V DC |
| Module format | Double |
| fixing mode | By screws |
| Mounting mode | Rack-mounted |
| Width | 64 mm |
| Height | 131 mm |
| Depth | 131 mm |
| Net weight | 0.849 kg |
Environment
| Marking | CE |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE; UKCA; RCM; CULus; EAC; Merchant Navy; Hazardous location class 1, division 2 |
| Standards | EN/IEC 61131-2; EN/IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G; UL 121201; CSA C22.2 No 213 |
| Environmental characteristic | Standard environment |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m |
| Relative humidity | 5…95 % without condensation |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMECRD0100: frequently asked questions
When can BMECRD0100 be shipped?
BMECRD0100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMECRD0100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMECRD0100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMECRD0100, subject to availability and destination.
More Schneider Electric parts
Schneider Electric

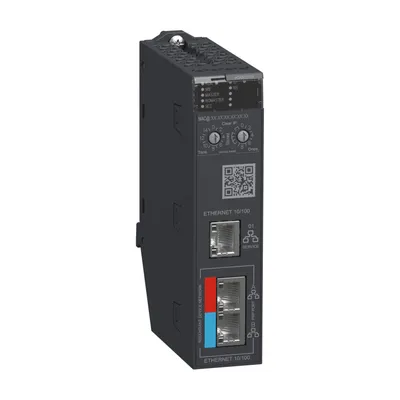

BMECRA31310HModicon X80 RIO Harsh Environment Drop redundant communication adapter PRP
