Schneider Electric AK2GA69

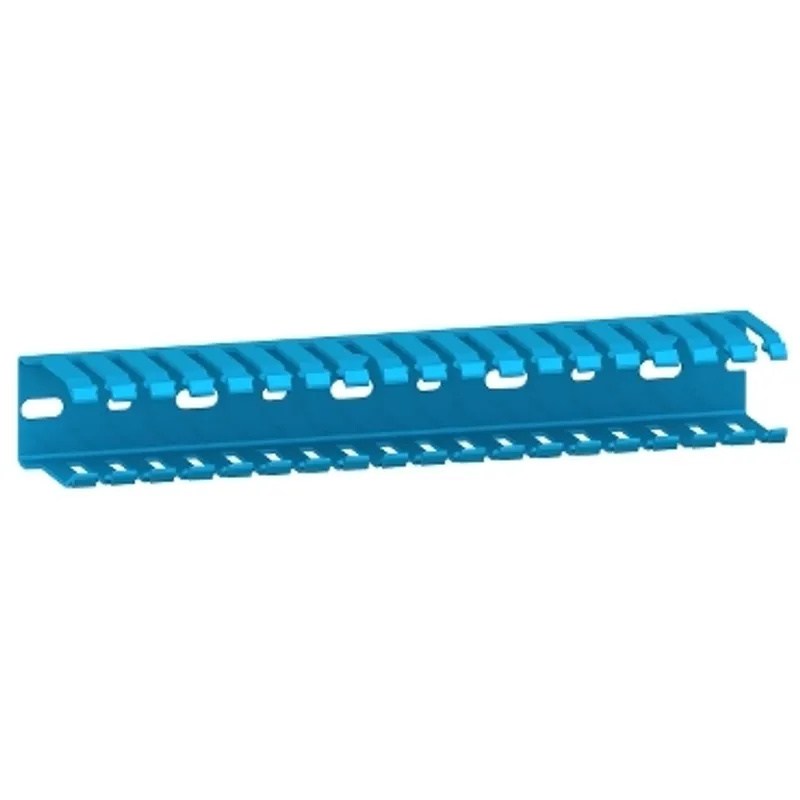

Cable duct - 90 x 60 mm - without cover - blue
- MPN
- AK2GA69
- EAN
- 3389110570564
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original AK2GA69 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AK2GA69?
Spacial CRN, S3D/Thalassa PLA, PLS, PLM cable duct without cover. 89 x 60x 2000mm. Cabling accessory. (-5 to 60)°C temp for operation. Set of 8. PVC (polyvinyl chloride) made. Blue RAL 5000. 961 °C fire resistance, VDE 0506, DIN 43659, VDE 0660, NF C68-102 standards.
Specifications
Specifications
| Product or component type | Cable duct |
| Accessory / separate part category | Cabling accessories |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLA, PanelSeT PLS, PanelSeT PLM |
| Device composition | Without cover |
| Quantity per set | Set of 8 |
| Colour | Blue (RAL 5000) |
| fixing mode | Clip-on support, By screws |
| Material | PVC (polyvinyl chloride) |
| Height | 90 mm |
| Length | 2000 mm |
| Width | 60 mm |
| Net weight | 1.2 kg |
| Total number of wires | 400 |
| Ambient air temperature for operation | -5…60 °C |
| Flame retardance | V-0 conforming to UL 94 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1/1 |
| Standards | NF C 68-102, VDE 0506, VDE 0660, DIN 43659 |
Packaging
| Package 1 | 1 PCE, 200.000 cm × 14.500 cm × 1.600 cm (L × W × H), 1.075 kg |
| Package 2 | 8 CAR, 200.500 cm × 18.000 cm × 14.000 cm (L × W × H), 8.600 kg |
| Package 3 | 304 PAL, 201.000 cm × 120.000 cm × 103.000 cm (L × W × H), 663.200 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AK2GA69: frequently asked questions
Can I still buy the AK2GA69 now that it is discontinued?
Yes. Schneider Electric has discontinued the AK2GA69, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AK2GA69 be shipped?
AK2GA69 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AK2GA69 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AK2GA69 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AK2GA69, subject to availability and destination.
