Schneider Electric AK2GD2525

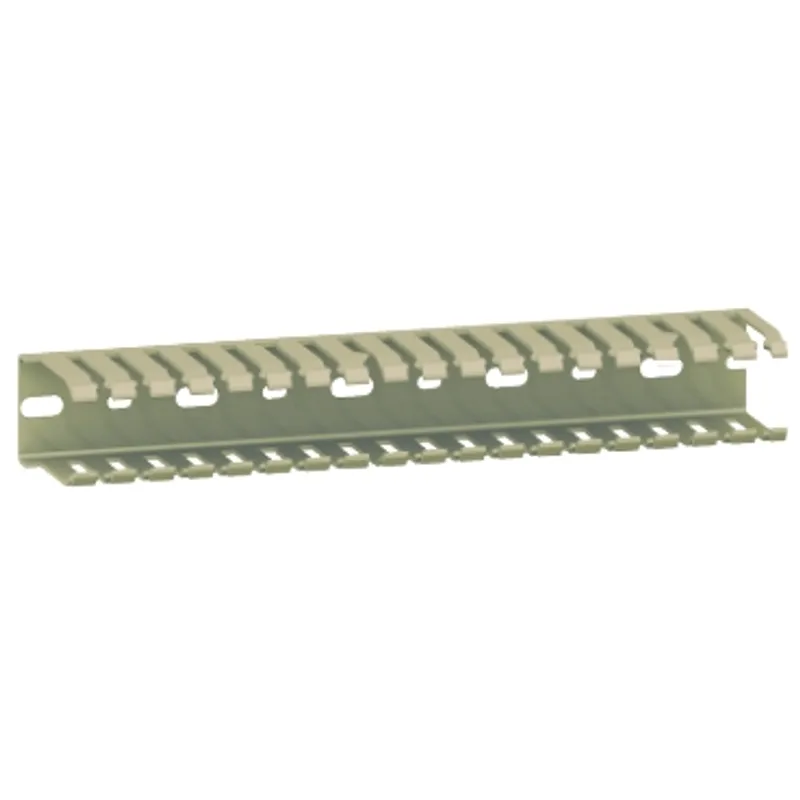

Cable duct - 25 x 25 mm - without cover - grey
- MPN
- AK2GD2525
- EAN
- 3389110570335
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AK2GD2525?
Set of 8 grey PVC cable ducts without cover, measuring 25 mm in height and 25 mm in width. Designed for cable management applications and compatible with PanelSeT enclosures.
Specifications
Specifications
| Product or component type | Cable duct |
| Accessory / separate part category | Cabling accessories |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLA, PanelSeT PLS, PanelSeT PLM |
| Device composition | Without cover |
| Quantity per set | Set of 8 |
| Colour | Grey (RAL 7030) |
| fixing mode | Clip-on support, By screws |
| Material | PVC (polyvinyl chloride) |
| Height | 25 mm |
| Length | 2000 mm |
| Width | 25 mm |
| Net weight | 0.26 kg |
| Total number of wires | 25 |
| Ambient air temperature for operation | -5…60 °C |
| Flame retardance | V-0 conforming to UL 94 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1/1 |
| Standards | VDE 0660, VDE 0506, DIN 43659 |
Packaging
| Package 1 | 1 PCE, 200.500 cm × 0.810 cm × 4.500 cm (L × W × H), 250.000 g |
| Package 2 | 8 CAR, 200.500 cm × 6.500 cm × 4.500 cm (L × W × H), 2.000 kg |
| Package 3 | 456 PAL, 120.000 cm × 200.500 cm × 33.000 cm (L × W × H), 114.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AK2GD2525: frequently asked questions
When can AK2GD2525 be shipped?
AK2GD2525 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AK2GD2525 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AK2GD2525 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AK2GD2525, subject to availability and destination.
