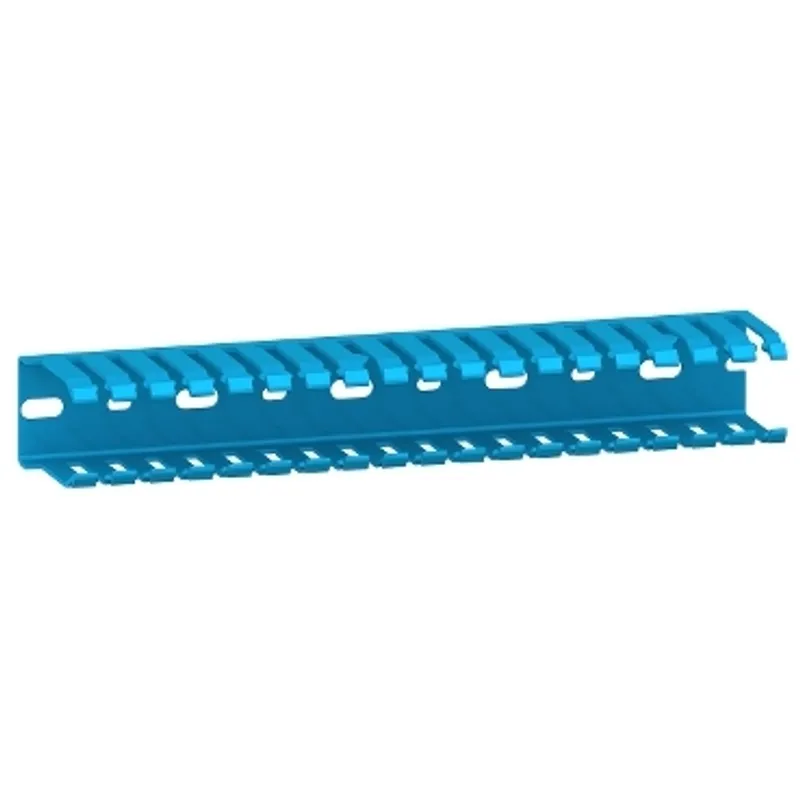

Cable duct - 55 x 30 mm - without cover - blue
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.8 kg |
Shipping & availability
When can AK2GA35 be shipped?
AK2GA35 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AK2GA35 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AK2GA35 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AK2GA35, subject to availability and destination.
Spacial CRN, S3D/Thalassa PLA, PLS, PLM cable duct without cover. 55 x 30x 2000 mm. Cabling accessory. (-5 to 60)°C temp for operation. Set of 8. PVC (polyvinyl chloride) made. Blue RAL 5000. 961 °C fire resistance, VDE 0506, DIN 43659, VDE 0660, NF C68-102 standards.
Specifications
Specifications
| Product or component type | Cable duct |
| Accessory / separate part category | Cabling accessories |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLA, PanelSeT PLS, PanelSeT PLM |
| Device composition | Without cover |
| Quantity per set | Set of 8 |
| Colour | Blue (RAL 5000) |
| fixing mode | Clip-on support, By screws |
| Material | PVC (polyvinyl chloride) |
| Height | 55 mm |
| Length | 2000 mm |
| Width | 30 mm |
| Net weight | 0.8 kg |
| Total number of wires | 110 |
| Ambient air temperature for operation | -5…60 °C |
| Flame retardance | V-0 conforming to UL 94 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1/1 |
| Standards | DIN 43659, VDE 0506, VDE 0660, NF C 68-102 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 201.000 cm |
| Package 1 Width | 1.370 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 536.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 201.000 cm |
| Package 2 Width | 11.000 cm |
| Package 2 Length | 8.000 cm |
| Package 2 Weight | 4.288 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 448 |
| Package 3 Height | 70.000 cm |
| Package 3 Width | 202.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 273.000 kg |
| Warranty | 18 months |
