Schneider Electric AK2GD12575

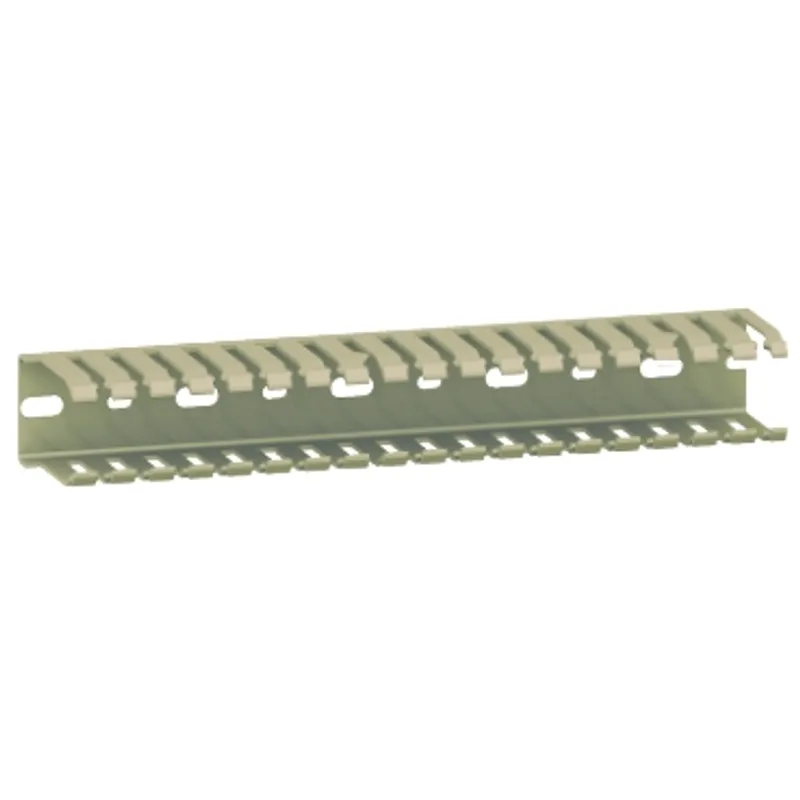

Cable duct - 75 x 125 mm - without cover - grey
- MPN
- AK2GD12575
- EAN
- 3389110570496
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AK2GD12575?
Set of 8 grey PVC cable ducts without cover, measuring 75 mm in height and 125 mm in width. Designed for cable management applications and compatible with PanelSeT enclosures.
Specifications
Specifications
| Product or component type | Cable duct |
| Accessory / separate part category | Cabling accessories |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLA, PanelSeT PLS, PanelSeT PLM |
| Device composition | Without cover |
| Quantity per set | Set of 8 |
| Colour | Grey (RAL 7030) |
| fixing mode | By screws, Clip-on support |
| Material | PVC (polyvinyl chloride) |
| Height | 75 mm |
| Length | 2000 mm |
| Width | 125 mm |
| Net weight | 1.36 kg |
| Total number of wires | 700 |
| Ambient air temperature for operation | -5…60 °C |
| Flame retardance | V-0 conforming to UL 94 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1/1 |
| Standards | VDE 0660, VDE 0506, DIN 43659 |
Packaging
| Package 1 | 1 PCE, 26.000 cm × 15.500 cm × 25.060 cm (L × W × H), 1.562 kg |
| Package 2 | 8 CAR, 26.000 cm × 15.500 cm × 200.500 cm (L × W × H), 12.496 kg |
| Package 3 | 96 PAL, 120.000 cm × 200.500 cm × 65.000 cm (L × W × H), 182.000 kg |
