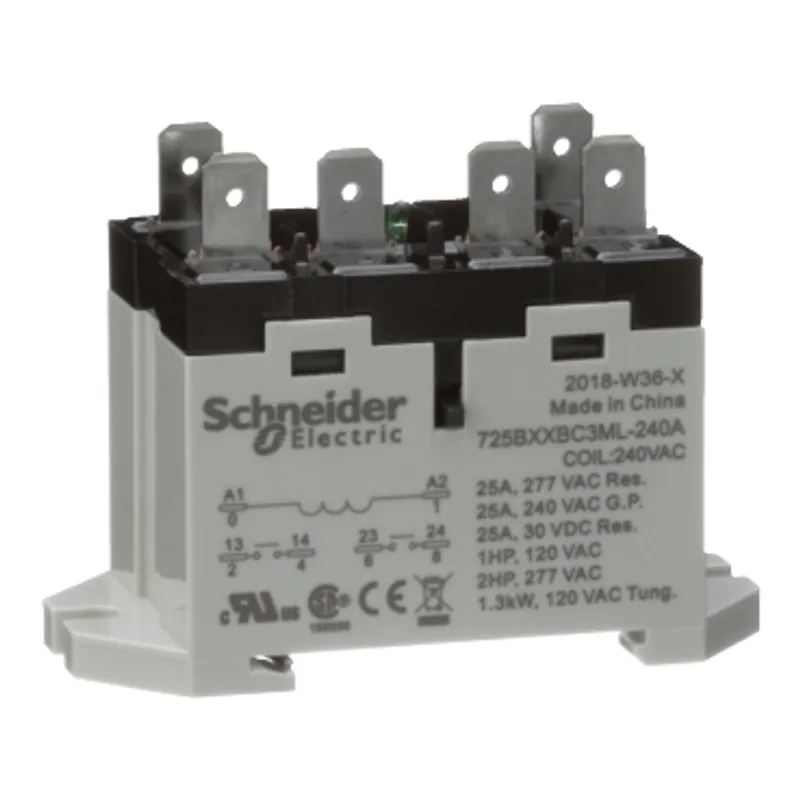

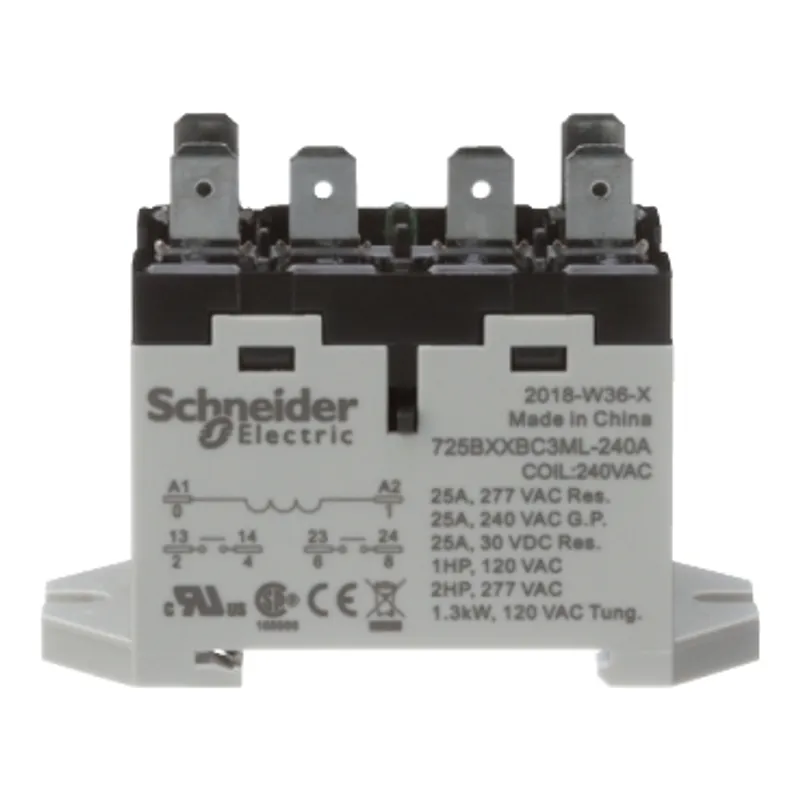

Power relay, SE Relays, 25A, 2NO, 240VAC, LED push button, blade terminals, DIN or panel mount

Name: Schneider Electric 725BXXBC3ML-240A – Power relay, SE Relays, 25A, 2NO, 240VAC, LED push button, blade terminals, DIN or panel mount
Brand: Schneider Electric
SKU: 725BXXBC3ML-240A

MPN: 725BXXBC3ML-240A · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Legacy Power Relays
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	120 kg

Shipping & availability

When can 725BXXBC3ML-240A be shipped?

725BXXBC3ML-240A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 725BXXBC3ML-240A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 725BXXBC3ML-240A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 725BXXBC3ML-240A, subject to availability and destination.

Schneider Electric Power relay, SE Relays, 25A, 2NO, 240VAC, LED push button, blade terminals, DIN or panel mount, manufacturer part number 725BXXBC3ML-240A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range of product	Harmony Electromechanical Relays
Series name	725 series
Product or component type	DIN rail/panel mount relay
Contacts type and composition	2 NO
Relay type	Power relay
Status LED	With
[Uc] control circuit voltage	240 V AC
Network frequency	50/60 Hz
[Ithe] conventional enclosed thermal current	25 A
Local signalling	LED indicator test button
class number	725
Minimum switching current	100 mA at 5 V DC
Nominal input voltage	204...264 V AC 50/60 Hz
Electrical durability	100000 cycles resistive load conforming to IEC
Dielectric strength	4000 V AC between coil and contact, 2000 V AC between poles
Control type	Test button
Coil resistance	21000 Ohm
Average coil consumption	2.50 VA
Wire stripping length	8 mm
Response time	30 ms
Associated fuse rating	32 A gG at 400 V coordination type 2 for power circuit
Short-circuit current	3 kA
Average pole impedence	2 mOhm
Maximum switching voltage	240 V conforming to CE, 277 V conforming to UL
Drop-out voltage threshold	AC
Rated power in W	1.3 kW 120 V tungsten
Rated power in hp	1 hp at 120 V AC, 2 hp at 277 V AC
[Ie] rated operational current	25 A at 277 V AC (on resistive load) conforming to UL, 25 A at 240 V AC (general purpose) conforming to UL, 25 A at 30 V DC (on resistive load) conforming to UL, 25 A at 240 V AC (on resistive load) conforming to IEC, 25 A at 28 V DC (on resistive load) conforming to IEC
Mechanical durability	5000000 cycles
Mounting support	DIN rail, Panel
Contacts material	Silver alloy contacts
Shape of pin	Flat (faston type)

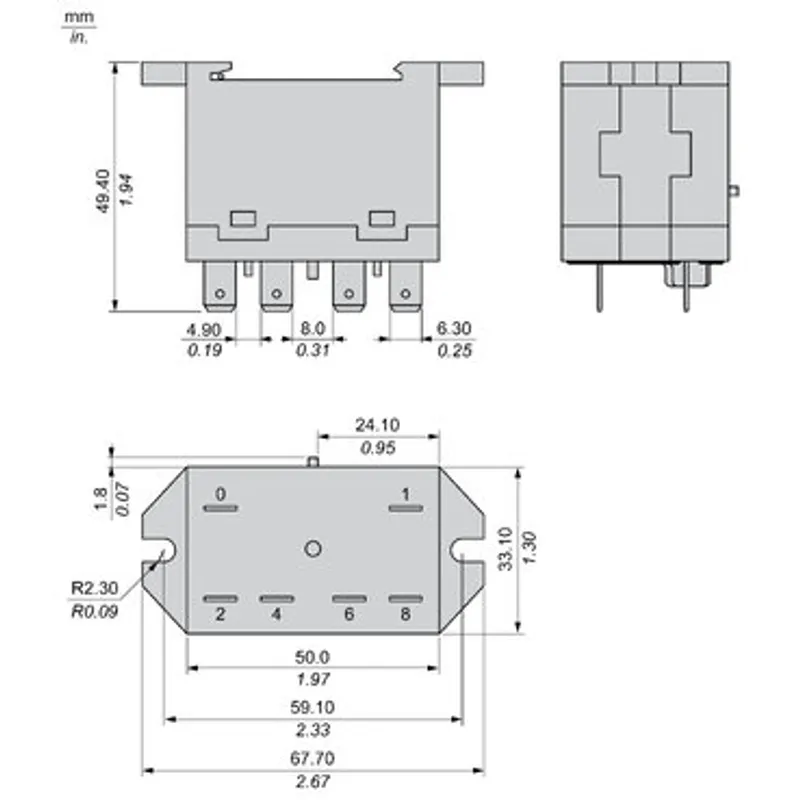

Width	34.9 mm
Height	67.7 mm
Depth	49.4 mm
Net weight	120 g
Standards	IEC 60947-1, UL 60947-4-1A
Product certifications	UL, CSA, CE
Ambient air temperature for storage	-55…100 °C
Ambient air temperature for operation	-20…55 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.94 cm
Package 1 Width	3.31 cm
Package 1 Length	6.77 cm
Package 1 Weight	120.0 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	7.6 cm
Package 2 Width	14.6 cm
Package 2 Length	31.9 cm
Package 2 Weight	1.2 kg
Unit Type of Package 3	CAR
Number of Units in Package 3	100
Package 3 Height	33.0 cm
Package 3 Width	31.0 cm
Package 3 Length	36.0 cm
Package 3 Weight	12.0 kg
Warranty (in months)	18
