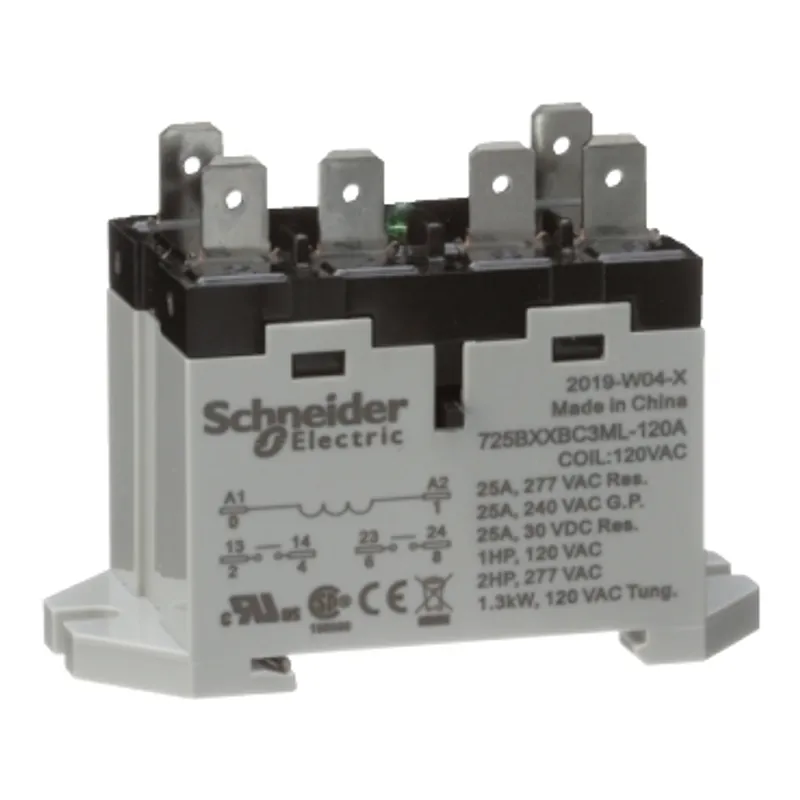

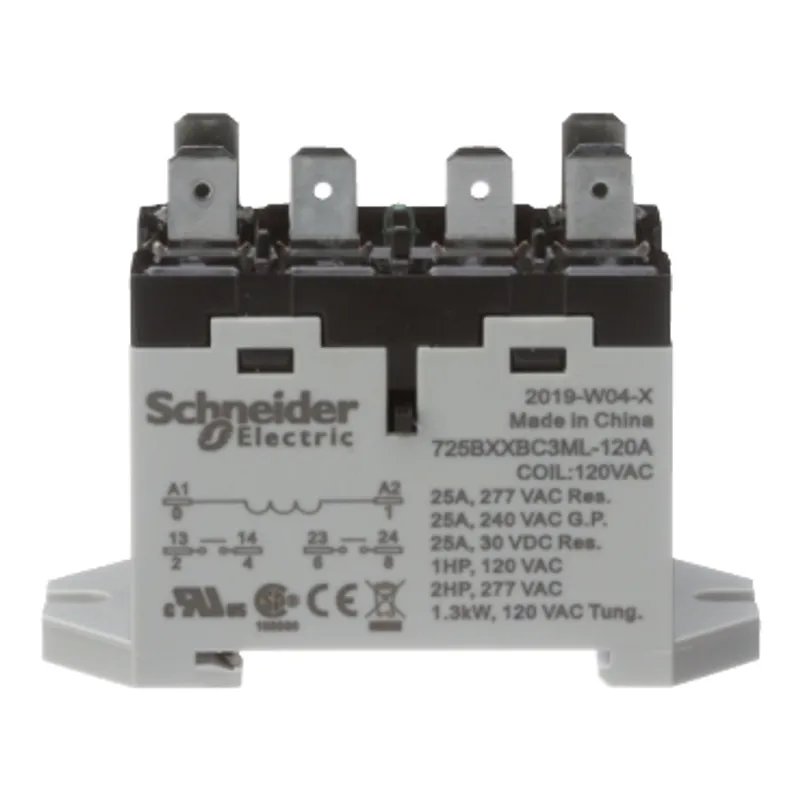

Schneider Electric 725BXXBC3ML-120A
Power relay, SE Relays, 25A, 2NO, 120VAC, LED push button, blade terminals, DIN or panel mount
- MPN
- 725BXXBC3ML-120A
- Category
- Legacy Power Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric 725BXXBC3ML-120A?
This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with Flat (Faston type) terminals supporting DIN rail or Panel mounting. It’s a 25A 2 NO contact configuration mechanical relay with nominal coil voltage of 120Vac and coil resistance of 5200Ω. The multiple mounting options increases functionality and ease-of-use. It has a side-mounted spring return pushbutton for testing the contacts. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | 725 series |
| Product or component type | DIN rail/panel mount relay |
| Contacts type and composition | 2 NO |
| Relay type | Power relay |
| Status LED | With |
| [Uc] control circuit voltage | 120 V AC |
| Network frequency | 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 25 A |
| Local signalling | LED indicator test button |
| class number | 725 |
| Minimum switching current | 100 mA at 5 V DC |
| Nominal input voltage | 102...132 V AC 50/60 Hz |
| Electrical durability | 100000 cycles resistive load conforming to IEC |
| Dielectric strength | 4000 V AC between coil and contact, 2000 V AC between poles |
| Control type | Test button |
| Coil resistance | 5200 Ohm |
| Average coil consumption | 2.50 VA |
| Wire stripping length | 8 mm |
| Response time | 30 ms |
| Associated fuse rating | 32 A gG at 400 V coordination type 2 for power circuit |
| Short-circuit current | 3 kA |
| Average pole impedence | 2 mOhm |
| Maximum switching voltage | 240 V conforming to CE, 277 V conforming to UL |
| Drop-out voltage threshold | AC |
| Rated power in W | 1.3 kW 120 V tungsten |
| Rated power in hp | 1 hp at 120 V AC, 2 hp at 277 V AC |
| [Ie] rated operational current | 25 A at 277 V AC (on resistive load) conforming to UL, 25 A at 240 V AC (general purpose) conforming to UL, 25 A at 30 V DC (on resistive load) conforming to UL, 25 A at 240 V AC (on resistive load) conforming to IEC, 25 A at 28 V DC (on resistive load) conforming to IEC |
| Mechanical durability | 5000000 cycles |
| Mounting support | DIN rail, Panel |
| Contacts material | Silver alloy contacts |
| Shape of pin | Flat (faston type) |

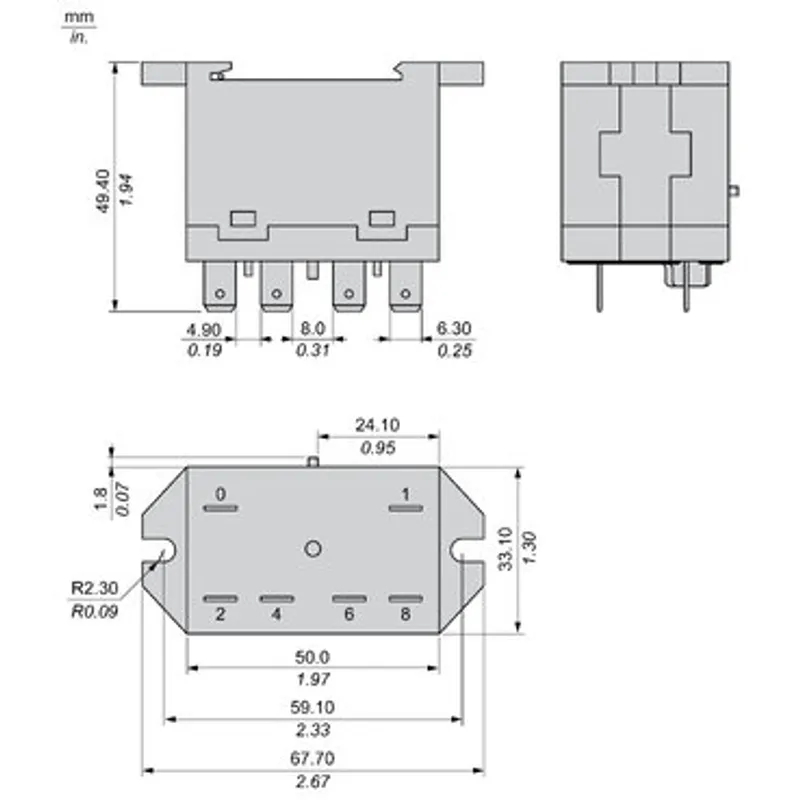

| Width | 34.9 mm |
| Height | 67.7 mm |
| Depth | 49.4 mm |
| Net weight | 120 g |
| Standards | IEC 60947-1, UL 60947-4-1A |
| Product certifications | UL, CSA, CE |
| Ambient air temperature for storage | -55…100 °C |
| Ambient air temperature for operation | -20…55 °C |
Packaging
| Package 1 | 1 PCE, 7.112 cm × 3.556 cm × 5.08 cm (L × W × H), 90.719 g |
| Package 2 | 10 BB1, 31.9 cm × 14.6 cm × 7.6 cm (L × W × H), 1.2 kg |
| Package 3 | 100 CAR, 36 cm × 31 cm × 33 cm (L × W × H), 12 kg |
