725AXXSC3ML-24APower relay, SE Relays, 30A, 1NO, 24VAC, LED push button, screw terminals, DIN or panel mount
Schneider Electric 725BXXBM4L-24D

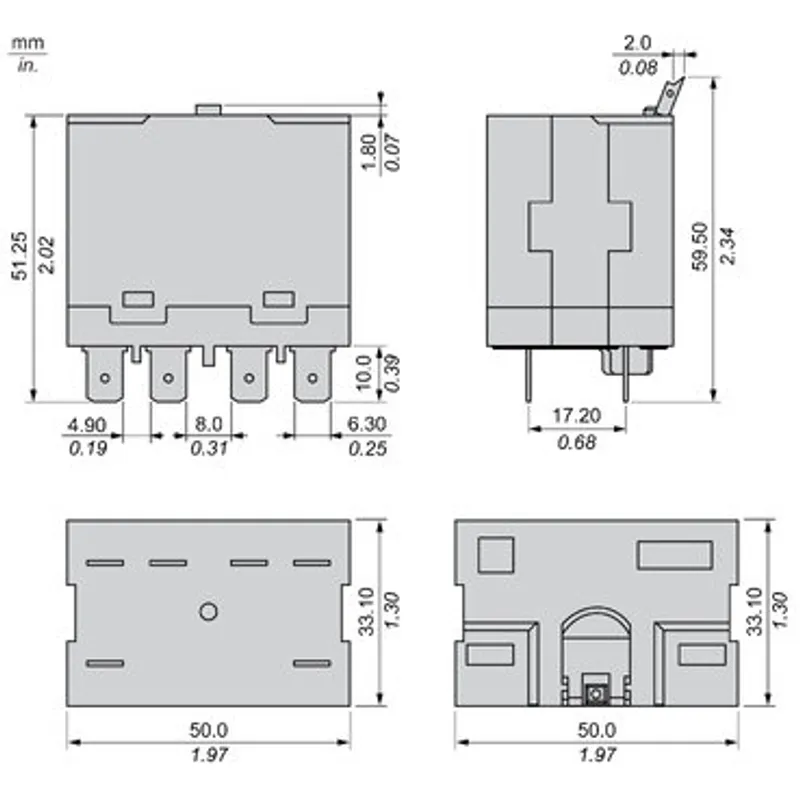

Power relay, SE Relays, 25A, 2NO, 24VDC, LED, flag indicator, locking push button, blade terminal, plug-in socket mount
- MPN
- 725BXXBM4L-24D
- Category
- Legacy Power Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric 725BXXBM4L-24D?
This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with Flat (Faston type) terminals supporting Plug-in socket mounting. It’s a 25A 2 NO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 300Ω. The full-feature cover offers push-to-test button, lock-down door, LED, flag indicators, and ID tag to simplify and expedite installation and testing. The push-to-test spring return button helps in testing the contacts and the lock-down door enables forced maintaining of the contacts for testing purposes. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Socket, Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | 725 series |
| Product or component type | Plug-in relay |
| Contacts type and composition | 2 NO |
| Relay type | Power relay |
| Status LED | With |
| [Uc] control circuit voltage | 24 V DC |
| Network frequency | 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 25 A |
| Local signalling | LED indicator lockable test button, Flag |
| class number | 725 |
| Minimum switching current | 100 mA at 5 V DC |
| Nominal input voltage | 19.2...26.4 V DC |
| Electrical durability | 100000 cycles resistive load conforming to IEC |
| Dielectric strength | 4000 V AC between coil and contact, 2000 V AC between poles |
| Control type | Lockable test button |
| Coil resistance | 300 Ohm |
| Average coil consumption | 1.90 W |
| Wire stripping length | 8 mm |
| Response time | 30 ms |
| Associated fuse rating | 32 A gG at 400 V coordination type 2 for power circuit |
| Short-circuit current | 3 kA |
| Average pole impedence | 2 mOhm |
| Maximum switching voltage | 240 V conforming to CE, 277 V conforming to UL |
| Drop-out voltage threshold | DC |
| Rated power in W | 1.3 kW 120 V tungsten |
| Rated power in hp | 1 hp at 120 V AC, 2 hp at 277 V AC |
| [Ie] rated operational current | 25 A at 277 V AC (on resistive load) conforming to UL, 25 A at 240 V AC (general purpose) conforming to UL, 25 A at 30 V DC (on resistive load) conforming to UL, 25 A at 240 V AC (on resistive load) conforming to IEC, 25 A at 28 V DC (on resistive load) conforming to IEC |
| Mechanical durability | 5000000 cycles |
| Mounting support | Plug-in |
| Contacts material | Silver alloy contacts |
| Shape of pin | Flat (faston type) |
| Width | 33.1 mm |
| Height | 50 mm |
| Depth | 53.05 mm |
| Net weight | 120 g |
| Standards | IEC 60947-1, UL 60947-4-1A |
| Product certifications | UL, CSA, CE |
| Ambient air temperature for storage | -55…100 °C |
| Ambient air temperature for operation | -20…55 °C |
Packaging
| Package 1 | 1 PCE, 6.77 cm × 3.31 cm × 4.94 cm (L × W × H), 120.0 g |
| Package 2 | 10 BB1, 31.9 cm × 14.6 cm × 7.6 cm (L × W × H), 1.2 kg |
| Package 3 | 100 CAR, 36.0 cm × 31.0 cm × 33.0 cm (L × W × H), 12.0 kg |
