What is the Schneider Electric 725AXXSC3ML-12D?

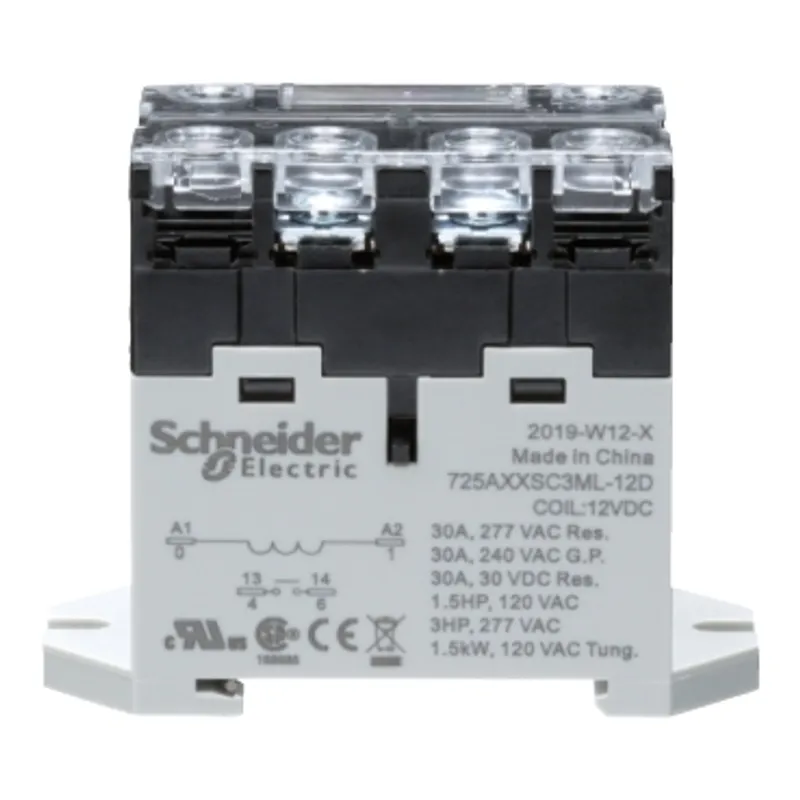

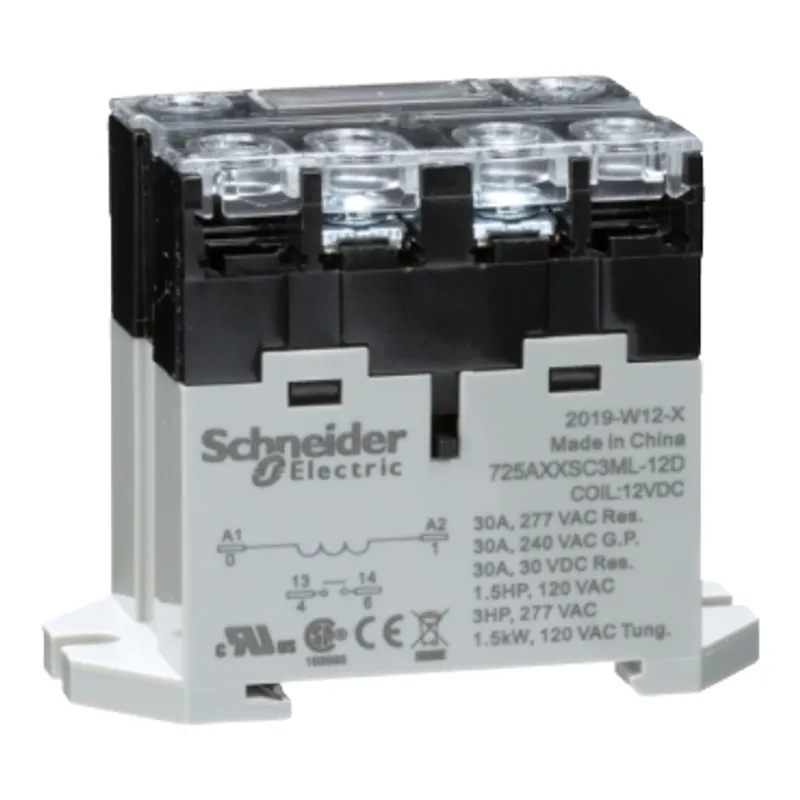

This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with screw terminals supporting DIN rail or Panel mounting. It’s a 30A 1 NO contact configuration mechanical relay with nominal coil voltage of 12Vdc and coil resistance of 75Ω. The touch-proof covers on screw terminals provides IP20 degree of protection. It has a side-mounted spring return pushbutton for testing the contacts. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | 725 series |
| Product or component type | DIN rail/panel mount relay |
| Contacts type and composition | 1 NO |
| Relay type | Power relay |
| Status LED | With |
| [Uc] control circuit voltage | 12 V DC |
| Network frequency | 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 30 A |
| Local signalling | LED indicator test button |
| class number | 725 |
| Minimum switching current | 100 mA at 5 V DC |
| Nominal input voltage | 9.6...13.2 V DC |
| Electrical durability | 100000 cycles resistive load conforming to IEC |
| Dielectric strength | 4000 V AC between coil and contact |
| Control type | Test button |
| Coil resistance | 75 Ohm |
| Average coil consumption | 1.90 W |
| Wire stripping length | 8 mm |
| Response time | 30 ms |
| Associated fuse rating | 32 A gG at 400 V coordination type 2 for power circuit |
| Short-circuit current | 3 kA |
| Average pole impedence | 2 mOhm |
| Maximum switching voltage | 240 V conforming to CE, 277 V conforming to UL |
| Drop-out voltage threshold | DC |
| Rated power in W | 1.5 kW 120 V tungsten |
| Rated power in hp | 3 hp at 277 V AC, 1.5 hp at 120 V AC |
| [Ie] rated operational current | 30 A at 277 V AC (on resistive load) conforming to UL, 30 A at 240 V AC (general purpose) conforming to UL, 30 A at 30 V DC (on resistive load) conforming to UL, 30 A at 240 V AC (on resistive load) conforming to IEC, 30 A at 28 V DC (on resistive load) conforming to IEC |
| Mechanical durability | 5000000 cycles |
| Tightening torque | 10.6...15 lb.in, 1.2...1.7 N.m |
| Mounting support | DIN rail, Panel |
| Contacts material | Silver alloy contacts |
| Shape of pin | Screw |

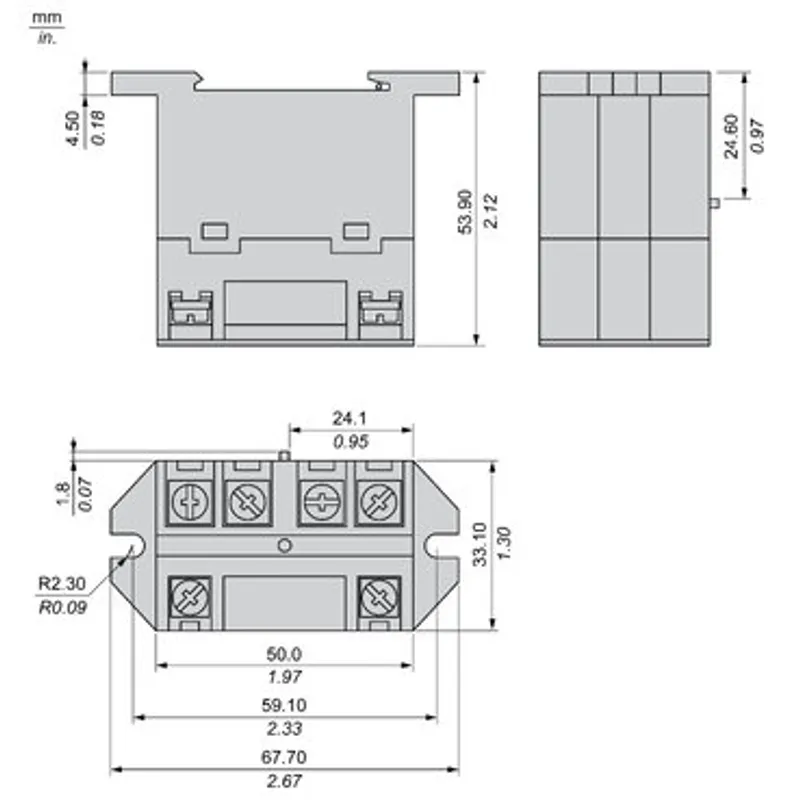

| Width | 34.9 mm |
| Height | 67.7 mm |
| Depth | 53.9 mm |
| Net weight | 120 g |
| Standards | IEC 60947-1, UL 60947-4-1A |
| Product certifications | UL, CSA, CE |
| Ambient air temperature for storage | -55…100 °C |
| Ambient air temperature for operation | -20…55 °C |
| IP degree of protection | IP20 |
Packaging
| Package 1 | 1 PCE, 6.858 cm × 3.556 cm × 5.588 cm (L × W × H), 113.399 g |
| Package 2 | 10 BB1, 31.9 cm × 14.6 cm × 7.6 cm (L × W × H), 1.2 kg |
| Package 3 | 100 CAR, 36 cm × 31 cm × 33 cm (L × W × H), 12 kg |
