Switch disconnector, Compact INS250, 250A, with red rotary handle and yellow front, 3 poles

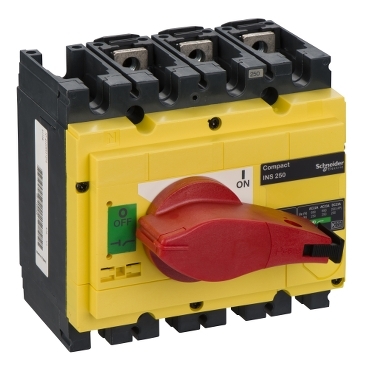

This Compact INS250 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 250A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 125VDC with 2 Poles in series. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS250 is a class II insulation level front-face device as per IEC 60664 standard.
| Range | ComPact |
| Product or component type | Switch disconnector |
| Product name | ComPacT INS |
| Poles description | 3P |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | AC-22A: 250 A AC 50/60 Hz 220/240 V, AC-22A: 250 A AC 50/60 Hz 380/415 V, AC-22A: 250 A AC 50/60 Hz 440/480 V, AC-22A: 250 A AC 50/60 Hz 480 V NEMA, AC-22A: 250 A AC 50/60 Hz 500/525 V, AC-22A: 250 A AC 50/60 Hz 660/690 V, AC-23A: 250 A AC 50/60 Hz 220/240 V, AC-23A: 250 A AC 50/60 Hz 380/415 V, AC-23A: 250 A AC 50/60 Hz 440/480 V, AC-23A: 250 A AC 50/60 Hz 480 V NEMA, AC-23A: 250 A AC 50/60 Hz 500/525 V, AC-23A: 250 A AC 50/60 Hz 660/690 V, DC-22A: 250 A DC 125 V 2 poles in series, DC-23A: 250 A DC 125 V 2 poles in series |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Ith] conventional free air thermal current | 250 A at 60 °C |
| [Icm] rated short-circuit making capacity | 30 kA switch-disconnector alone 690 V AC at 50/60 Hz, 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage | 125 V DC, 690 V AC 50/60 Hz |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Visible break | No |
| Pollution degree | 3 |
| Control type | Red and yellow rotary handle |
| Handle colour | Red |
| Mounting mode | Fixed |
| Mounting support | Plate, Rail |
| Upside connection | Front |
| Downside connection | Front |
| Maximum power | AC-23: 132 kW at 380/415 V AC 50/60 Hz, AC-23: 150 kW at 440 V AC 50/60 Hz, AC-23: 150 kW at 480 V AC 50/60 Hz (NEMA), AC-23: 160 kW at 500/525 V AC 50/60 Hz, AC-23: 210 kW at 660/690 V AC 50/60 Hz, AC-23: 75 kW at 220/240 V AC 50/60 Hz, AC-23: 75 kW at 230 V AC 50/60 Hz (NEMA) |
| Rated duty | Uninterrupted |
| [Icw] rated short-time withstand current | 1.8 kA during 30 s conforming to IEC 60947-3, 2.2 kA during 20 s conforming to IEC 60947-3, 4.9 kA during 3 s conforming to IEC 60947-3, 8.5 kA during 1 s conforming to IEC 60947-3 |
| Mechanical durability | 15000 cycles |
| Electrical durability | AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 690 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 690 V AC 50/60 Hz, DC-22A: 1500 cycles 125 V DC 2 poles in series, DC-23A: 1500 cycles 125 V DC 2 poles in series |
| Connection pitch | 35 mm |
| Height | 136 mm |
| Width | 140 mm |
| Depth | 96 mm |
| Net weight | 2 kg |
| Standards | IEC 60947-1, IEC 60947-3 |
| Product certifications | KEMA-KEUR, CCC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Package 1 | 1 PCE, 16.000 cm × 14.000 cm × 17.000 cm (L × W × H), 2.240 kg |
| Package 2 | 9 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 20.926 kg |
