Switch disconnector, Compact INS250-160, 160A, with red rotary handle and yellow front, 4 poles

MPN
31125
EAN
3303430311256
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original 31125 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 31125?

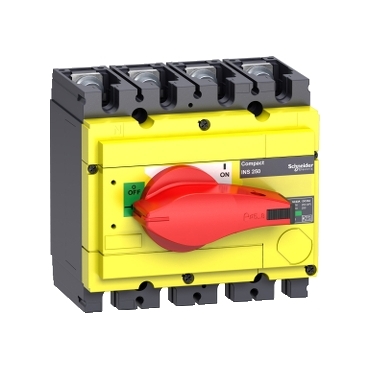

This Compact INS250-160 is a 4 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 200A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS250-160 is a class II insulation level front-face device as per IEC 60664 standard.

Specifications

Specifications

RangeComPact
Product or component typeSwitch disconnector
Product nameComPacT INS
Poles description4P
Network typeDC, AC
Network frequency50/60 Hz
[Ie] rated operational currentAC-22A: 160 A AC 50/60 Hz 220/240 V, AC-22A: 160 A AC 50/60 Hz 380/415 V, AC-22A: 160 A AC 50/60 Hz 440/480 V, AC-22A: 160 A AC 50/60 Hz 480 V NEMA, AC-22A: 160 A AC 50/60 Hz 500/525 V, AC-22A: 160 A AC 50/60 Hz 660/690 V, AC-23A: 160 A AC 50/60 Hz 220/240 V, AC-23A: 160 A AC 50/60 Hz 380/415 V, AC-23A: 160 A AC 50/60 Hz 440/480 V, AC-23A: 160 A AC 50/60 Hz 480 V NEMA, AC-23A: 160 A AC 50/60 Hz 500/525 V, AC-23A: 160 A AC 50/60 Hz 660/690 V, DC-22A: 160 A DC 125 V 2 poles in series, DC-22A: 160 A DC 250 V 4 poles in series, DC-23A: 160 A DC 125 V 2 poles in series, DC-23A: 160 A DC 250 V 4 poles in series
[Ui] rated insulation voltage800 V AC 50/60 Hz
[Ith] conventional free air thermal current160 A at 60 °C
[Icm] rated short-circuit making capacity30 kA switch-disconnector alone 690 V AC at 50/60 Hz, 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
[Ue] rated operational voltage250 V DC, 690 V AC 50/60 Hz
Suitability for isolationYes
Contact position indicatorYes
Visible breakNo
Pollution degree3
Control typeRed and yellow rotary handle
Handle colourRed
Mounting modeFixed
Mounting supportRail, Plate
Upside connectionFront
Downside connectionFront
Maximum powerAC-23: 110 kW at 500/525 V AC 50/60 Hz, AC-23: 45 kW at 220/240 V AC 50/60 Hz, AC-23: 45 kW at 230 V AC 50/60 Hz (NEMA), AC-23: 75 kW at 380/415 V AC 50/60 Hz, AC-23: 90 kW at 440 V AC 50/60 Hz, AC-23: 90 kW at 480 V AC 50/60 Hz (NEMA), AC-23: 90 kW at 660/690 V AC 50/60 Hz
Rated dutyUninterrupted
[Icw] rated short-time withstand current1.8 kA during 30 s conforming to IEC 60947-3, 2.2 kA during 20 s conforming to IEC 60947-3, 4.9 kA during 3 s conforming to IEC 60947-3, 8.5 kA during 1 s conforming to IEC 60947-3
Mechanical durability15000 cycles
Electrical durabilityAC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 690 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 690 V AC 50/60 Hz, DC-22A: 1500 cycles 250 V DC 4 poles in series, DC-23A: 1500 cycles 250 V DC 4 poles in series
Connection pitch35 mm
Height136 mm
Width140 mm
Depth96 mm
Net weight2.2 kg
StandardsIEC 60947-1, IEC 60947-3
Product certificationsCCC, KEMA-KEUR
IP degree of protectionIP40 conforming to IEC 60529
IK degree of protectionIK07 conforming to EN 50102
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-50…85 °C

Packaging

Package 11 PCE, 16.800 cm × 16.100 cm × 13.800 cm (L × W × H), 2.495 kg
Package 24 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.468 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

31125: frequently asked questions

Can I still buy the 31125 now that it is discontinued?

Yes. Schneider Electric has discontinued the 31125, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 31125 be shipped?

31125 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 31125 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 31125 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 31125, subject to availability and destination.
