Schneider Electric 31118

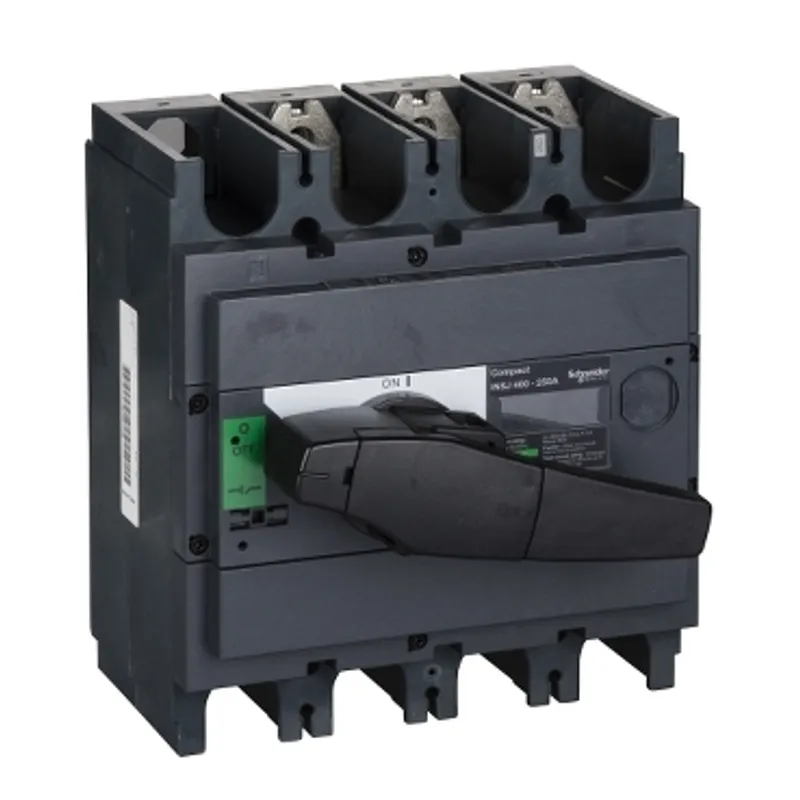

Switch disconnector, Interpact INSJ400, 3 poles, 250A

MPN
31118
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 31118?

Schneider Electric switch disconnector, Interpact INSJ400, 3 poles, 250A, manufacturer part number 31118. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangeComPact
Product nameINSJ400
Switch-disconnector nameInterpact INSJ400
Poles description3P
Network typeAC
Network frequency50/60 Hz
[Ie] rated operational current250 A AC 50/60 Hz 600 V
[Uimp] rated impulse withstand voltage8 kV
[Icm] rated short-circuit making capacity100 kA protected by circuit breaker NSJ400 - 400A 480 V AC at 50/60 Hz, 150 kA protected by circuit breaker NSJ400 - 400A 240 V AC at 50/60 Hz, 20 kA protected by any protection device 600 V AC at 50/60 Hz, 25 kA protected by circuit breaker NSJ400 - 400A 600 V AC at 50/60 Hz, 50 kA with class T or RK fuses 400 A 600 V AC at 50/60 Hz
[Ue] rated operational voltage600 V AC 50/60 Hz
Suitability for isolationYes
Contact position indicatorYes
Control typeRotary handle
Mounting modeFixed
Mounting supportPlate
Upside connectionFront
Downside connectionRear, Front
Mechanical durability5000 cycles conforming to UL 489
Electrical durability1000 cycles full load
Height205 mm
Width185 mm
Depth130 mm
Net weight4.6 kg
StandardsUL 489, CSA C22.2 No 5.2

Packaging

Package 11 PCE, 22.800 cm × 20.000 cm × 19.200 cm (L × W × H), 5.014 kg
Package 22 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.466 kg

31118: frequently asked questions

When can 31118 be shipped?

31118 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 31118 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 31118 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 31118, subject to availability and destination.
