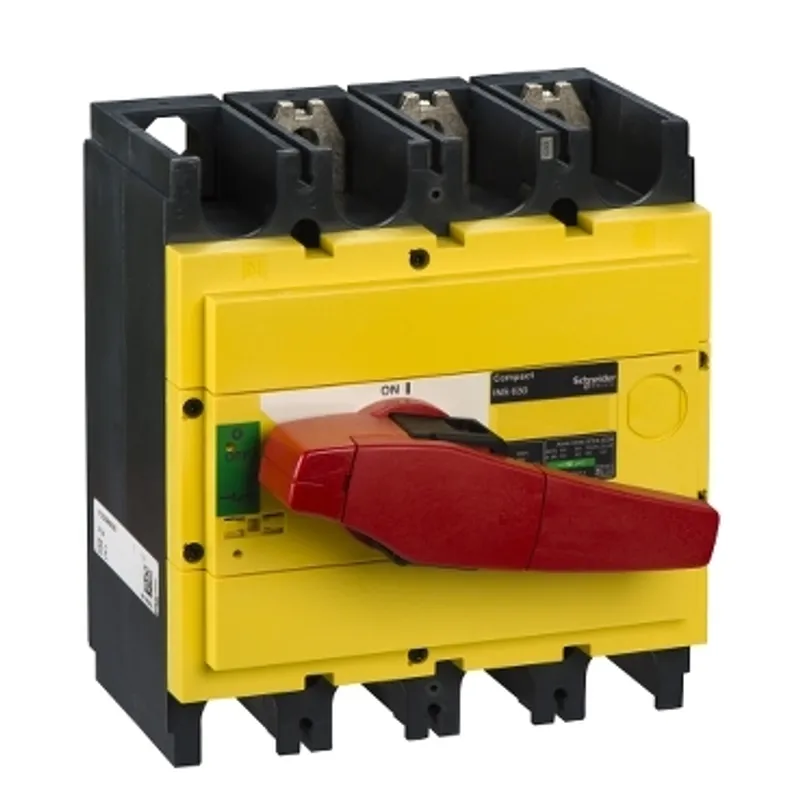

Switch disconnector, Compact INS630, 630A, with red rotary handle and yellow front, 3 poles

MPN
31134
EAN
3303430311348
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original 31134 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 31134?

This Compact INS630 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 630A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 125VDC with 2 Poles in series. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS630 is a class II insulation level front-face device as per IEC 60664 standard.

Specifications

Specifications

RangeComPact
Product or component typeSwitch disconnector
Product nameComPacT INS
Poles description3P
Network typeDC, AC
Network frequency50/60 Hz
[Ie] rated operational currentAC-22A: 630 A AC 50/60 Hz 220/240 V, AC-22A: 630 A AC 50/60 Hz 380/415 V, AC-22A: 630 A AC 50/60 Hz 440/480 V, AC-22A: 630 A AC 50/60 Hz 480 V NEMA, AC-22A: 630 A AC 50/60 Hz 500/525 V, AC-22A: 630 A AC 50/60 Hz 660/690 V, AC-23A: 630 A AC 50/60 Hz 220/240 V, AC-23A: 630 A AC 50/60 Hz 380/415 V, AC-23A: 630 A AC 50/60 Hz 440/480 V, AC-23A: 630 A AC 50/60 Hz 480 V NEMA, AC-23A: 630 A AC 50/60 Hz 500/525 V, AC-23A: 630 A AC 50/60 Hz 660/690 V, DC-22A: 550 A DC 125 V 2 poles in series, DC-23A: 550 A DC 125 V 2 poles in series, DC-23B: 630 A DC 125 V 2 poles in series
[Ui] rated insulation voltage800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV, 8 kV conforming to IEC 60947-3
[Ith] conventional free air thermal current630 A at 60 °C
[Icm] rated short-circuit making capacity330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz, 50 kA switch-disconnector alone 690 V AC at 50/60 Hz
[Ue] rated operational voltage125 V DC, 690 V AC 50/60 Hz
Suitability for isolationYes
Contact position indicatorYes
Visible breakNo
Pollution degree3
Control typeRed and yellow rotary handle
Handle colourRed
Mounting modeFixed
Mounting supportPlate, Rail
Upside connectionFront
Downside connectionFront
Maximum powerAC-23: 200 kW at 220/240 V AC 50/60 Hz, AC-23: 200 kW at 230 V AC 50/60 Hz (NEMA), AC-23: 315 kW at 380/415 V AC 50/60 Hz, AC-23: 375 kW at 480 V AC 50/60 Hz (NEMA), AC-23: 400 kW at 440 V AC 50/60 Hz, AC-23: 400 kW at 500/525 V AC 50/60 Hz, AC-23: 560 kW at 660/690 V AC 50/60 Hz
Rated dutyUninterrupted
[Icw] rated short-time withstand current11.5 kA during 3 s conforming to IEC 60947-3, 20 kA during 1 s conforming to IEC 60947-3, 4 kA during 30 s conforming to IEC 60947-3, 4.9 kA during 20 s conforming to IEC 60947-3
Mechanical durability10000 cycles
Electrical durabilityAC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 690 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 690 V AC 50/60 Hz, DC-23A: 1000 cycles 125 V DC 2 poles in series, DC-23B: 200 cycles 125 V DC 2 poles in series
Connection pitch45 mm
Height205 mm
Width185 mm
Depth120 mm
Net weight4.6 kg
StandardsIEC 60947-3, IEC 60947-1
Product certificationsKEMA-KEUR, CCC
IP degree of protectionIP40 conforming to IEC 60529
IK degree of protectionIK07 conforming to EN 50102
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-50…85 °C

Packaging

Package 11 PCE, 22.500 cm × 19.500 cm × 19.000 cm (L × W × H), 5.001 kg
Package 22 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.422 kg
Package 316 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 95.376 kg
