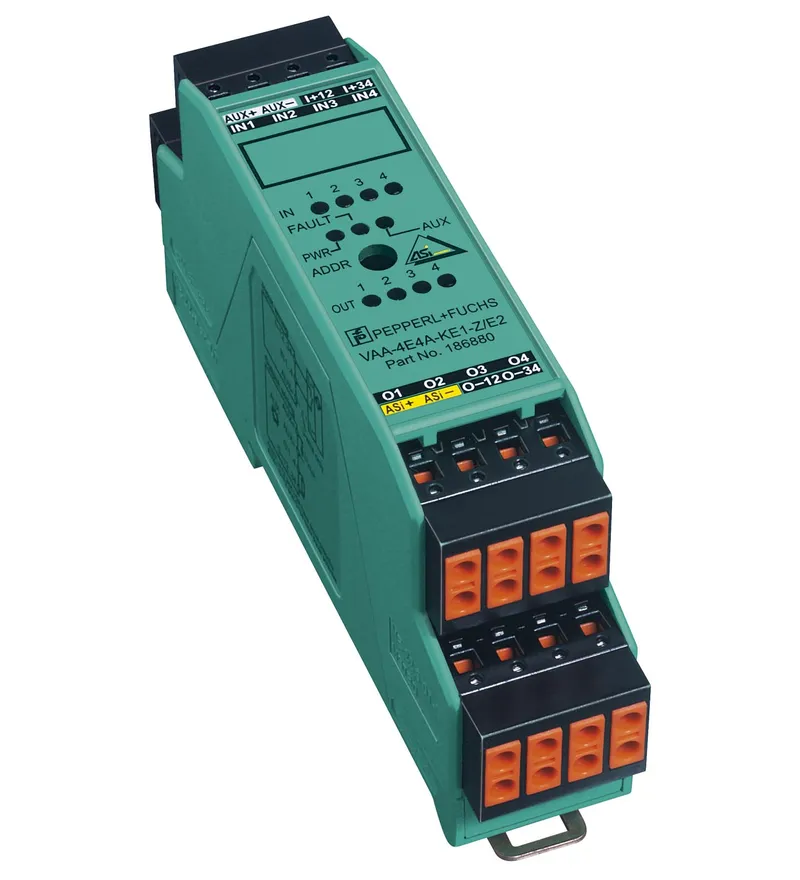

AS-Interface sensor/actuator module VAA-4E4A-KE1-Z/E2 — photo 2 of 4

AS-Interface sensor/actuator module VAA-4E4A-KE1-Z/E2 — photo 3 of 4

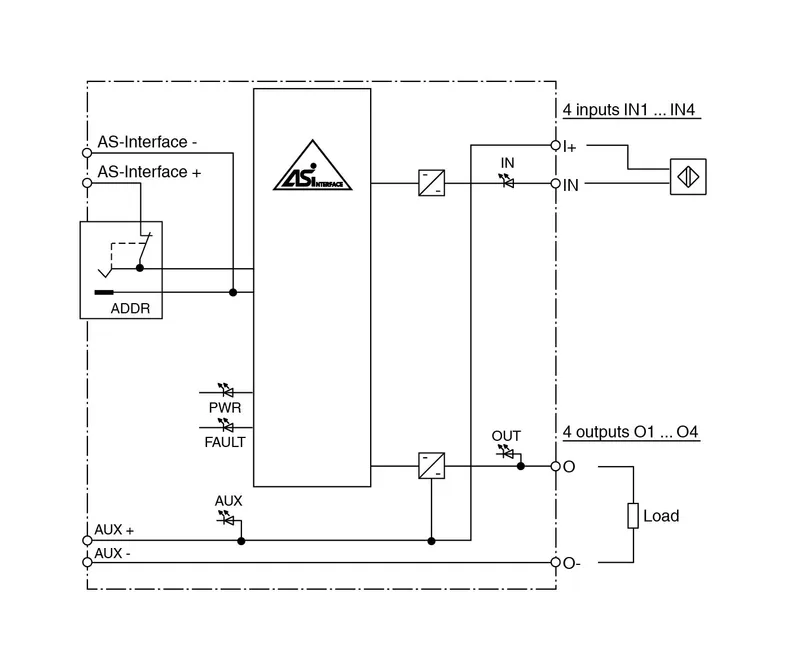

AS-Interface sensor/actuator module VAA-4E4A-KE1-Z/E2 — photo 4 of 4

Available on request

Pepperl Fuchs VAA-4E4A-KE1-Z/E2 – AS-Interface sensor/actuator module

MPN: VAA-4E4A-KE1-Z/E2 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VAA-4E4A-KE1-Z/E2 be shipped?

VAA-4E4A-KE1-Z/E2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VAA-4E4A-KE1-Z/E2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VAA-4E4A-KE1-Z/E2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAA-4E4A-KE1-Z/E2, subject to availability and destination.

• Housing with removable terminals

• Communication monitoring

• Inputs for 2-wire sensors and mechanical contacts

• Addressing jack

• Power supply of the inputs and outputs from the external auxiliary voltage

• Function display for bus, ext. auxiliary voltage, inputs and outputs

KE1 switch cabinet module, 4 inputs and 4 outputs

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	186880
Node type	Standard node
AS-Interface specification	V3.0
Required gateway specification	≥ V2.0
Profile	S-7.0
IO code	7
ID code	0
ID1 code	F
ID2 code	E
UL File Number	E87056
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LED FAULT	error display; LED red red: communication error or address is 0 red flashing: overload of outputs
LED PWR	AS-Interface voltage; LED green
LED AUX	ext. auxiliary voltage UAUX; dual LED green/red green: voltage OK red: reverse voltage
LED IN	switching state (input); 4 LED yellow
LED OUT	Switching state (output); 4 LED yellow

Electrical specifications

Auxiliary voltage (output)	20 ... 30 V DC PELV UAUX
Rated operating voltage	26.5 ... 31.6 V from AS-Interface Ue
Rated operating current	≤ 40 mA Ie
Protection class	III
Surge protection	UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV)

Input

Number/Type	4 inputs for 2-wire sensors (PNP), DC or for mechanical contacts
Supply	from external auxiliary voltage UAUX
Input current	≤ 8 mA (limited internally)
Switching point	according to DIN EN 61131-2 (Type 2)
0 (unattenuated)	≤ 2 mA
1 (attenuated)	≥ 4 mA
Signal delay	< 2 ms (input/AS-Interface)
Signal frequency	≤ 250 Hz

Output

Number/Type	4 electronic outputs, PNP, overload and short-circuit proof
Supply	from external auxiliary voltage UAUX
Voltage	≥ (UAUX - 0.5 V)
Current	0.5 A per output , 2 A per module
Usage category	DC-13

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

IEC 62026-2:2015 EN 61326-1:2006

Standard conformity

Degree of protection	EN 60529:2000
Fieldbus standard	EN 62026-2:2013
Input	EN 61131-2:2015
Emitted interference	EN 55011:2009
AS-Interface	EN 62026-2:2013
Noise immunity	EN 61326-1:2006

Ambient conditions

Ambient temperature	-25 ... 60 °C (-13 ... 140 °F)
Storage temperature	-25 ... 85 °C (-13 ... 185 °F)
Relative humidity	90 % , non-condensing
Pollution degree	2

Mechanical specifications

Degree of protection	IP20
Connection	removable spring double terminalsrated connection capacity:rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 1.5 mm2recommended tools for 1.5 mm2: PxC CRIMPFOX ZA3 or Weidmüller PZ 6 roto
Material: Housing	PA 66-FR
Mass	80 g

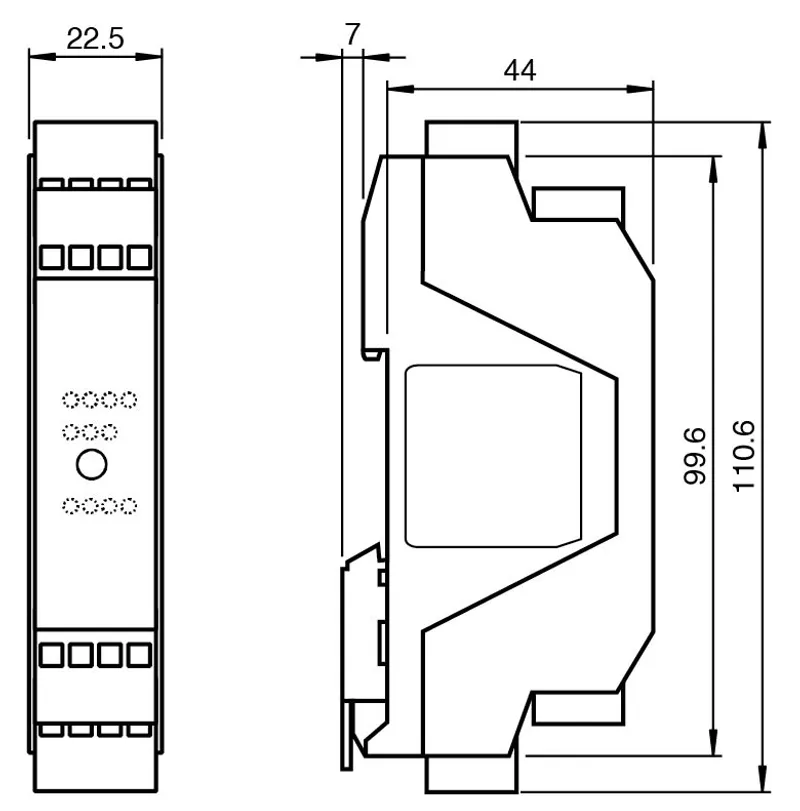

Dimensions: Height	48.5 mm
Dimensions: Width	22.5 mm
Dimensions: Length	99.6 mm
Mounting	DIN mounting rail
