Pepperl Fuchs VAA-4E4A-G2-ZA/EA2 – AS-Interface sensor/actuator module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VAA-4E4A-G2-ZA/EA2 be shipped?
VAA-4E4A-G2-ZA/EA2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VAA-4E4A-G2-ZA/EA2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VAA-4E4A-G2-ZA/EA2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAA-4E4A-G2-ZA/EA2, subject to availability and destination.
• AS-Interface certificate
• Degree of protection IP67
• Addressing jack
• Flat cable connection with cable piercing technique, variable flat cable guide
• Communication monitoring
• Inputs for 2-, 3-, and 4-wire sensors
• Power supply of outputs from the external auxiliary voltage
• Supply for inputs from AS-Interface
• Ground connection (FE) possible
• Function display for bus, ext. auxiliary voltage, inputs and outputs
• Detection of overload on sensor supply
• Detection of output overload

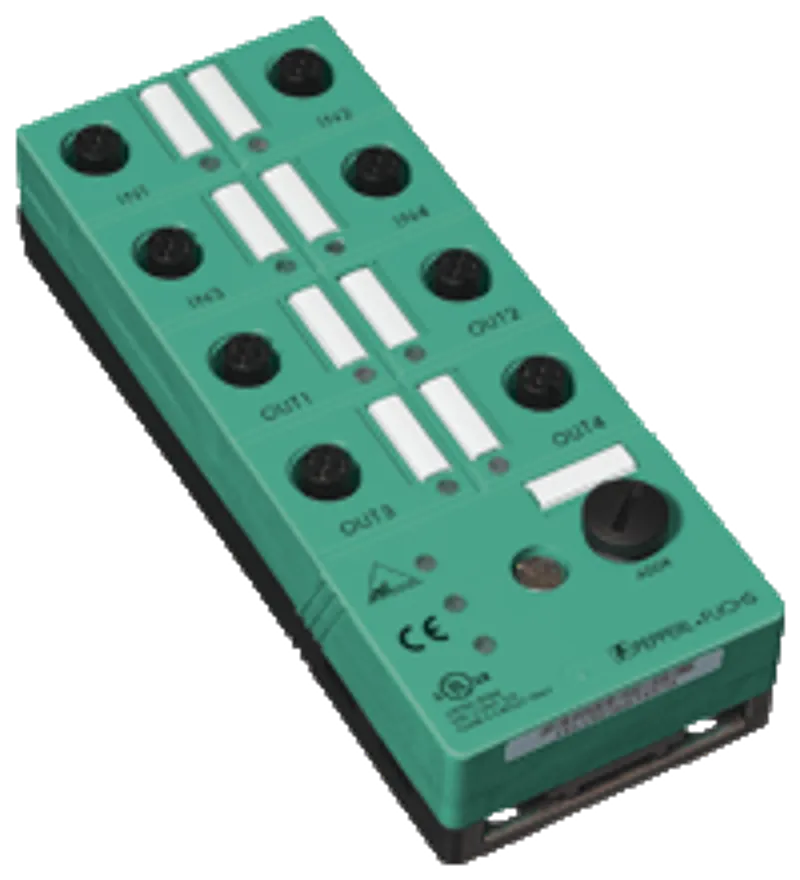

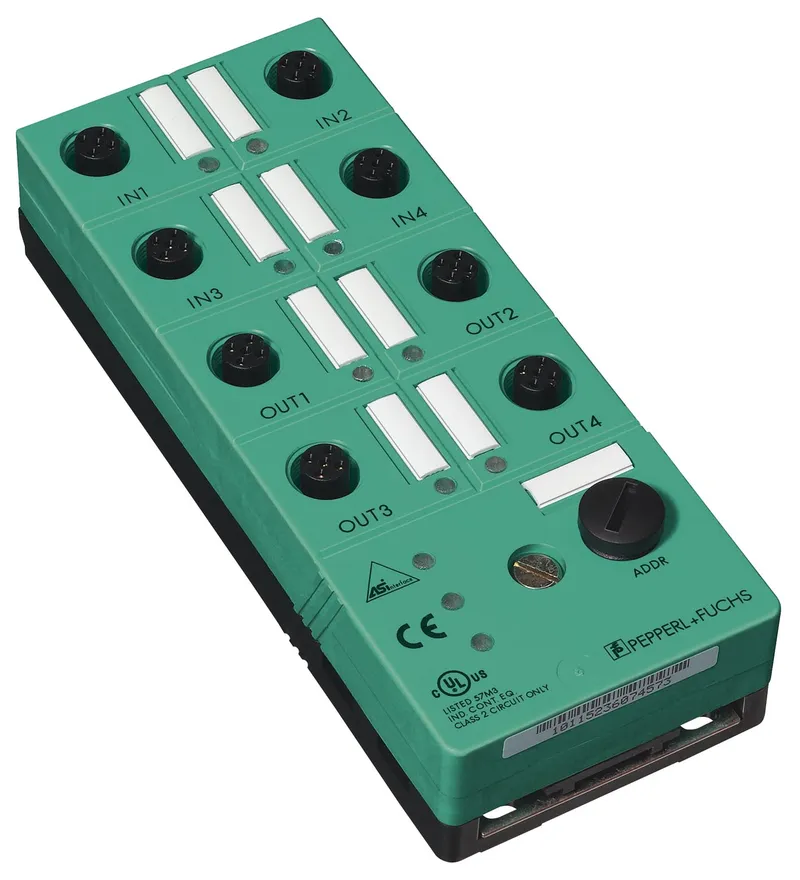

G2 flat module, 4 inputs (PNP) and 4 electronic outputs
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 188848 |
| Node type | Standard node |
| AS-Interface specification | V3.0 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-7.F |
| IO code | 7 |
| ID code | F |
| ID1 code | F |
| ID2 code | E |
| UL File Number | E223772 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED FAULT | error display; LED red red: communication error or address is 0 red flashing: overload of sensor power supply or outputs |
| LED PWR | AS-Interface voltage; LED green |
| LED AUX | ext. auxiliary voltage UAUX ; LED green |
| LED IN | switching state (input); 4 LED yellow |
| LED OUT | Switching state (output); 4 LED yellow |
Electrical specifications
| Auxiliary voltage (output) | 20 ... 30 V DC PELV UAUX |
| Rated operating voltage | 26.5 ... 31.6 V from AS-Interface Ue |
| Rated operating current | ≤ 40 mA (without sensors) / max. 220 mA Ie |
| Protection class | III |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) |
Input
| Number/Type | 4 inputs for 2- or 3-wire sensors (PNP), DC option 2 inputs for 4-wire sensors (PNP), DC |
| Supply | from AS-Interface |
| Voltage | 21 ... 31 V |
| Current loading capacity | ≤ 180 mA (TB ≤ 40 °C), ≤ 140 mA (TB ≤ 60 °C), , overload and short-circuit protected |
| Input current | ≤ 9 mA (limited internally) |
| Switching point | according to DIN EN 61131-2 (Type 2) |
| 0 (unattenuated) | ≤ 3 mA |
| 1 (attenuated) | ≥ 5 mA |
| Signal delay | < 2 ms (input/AS-Interface) |
| Signal frequency | ≤ 250 Hz |
Output
| Number/Type | 4 electronic outputs, PNP, overload and short-circuit proof |
| Supply | from external auxiliary voltage UAUX |
| Voltage | ≥ (UAUX - 0.5 V) |
| Current | 2 A per output Sum 4 A (TB ≤ 40 °C) Sum 3 A (TB ≤ 60 °C) |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2001 EN 61000-6-4:2001 |
Standard conformity
| Degree of protection | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013 |
| Input | EN 61131-2:2007 |
| Emitted interference | EN 61000-6-4:2001 |
| AS-Interface | EN 62026-2:2013 |
| Noise immunity | EN 61000-6-2:2001 |
Ambient conditions
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 85 % , non-condensing |
| Climatic conditions | For indoor use only |
| Altitude | ≤ 2000 m above MSL |
| Pollution degree | 3 |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | Cable piercing method flat cable yellow/flat cable black inputs/outputs: M12 round connector |
| Material: Housing | PBT |
| Mass | 150 g |
| Tightening torque, cable gland | 0.4 Nm |
| Mounting | Mounting plate |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VAA-4E4A-G2-ZA/EA2 | |
| Commissioning Instructions | PDF · 192 kB |

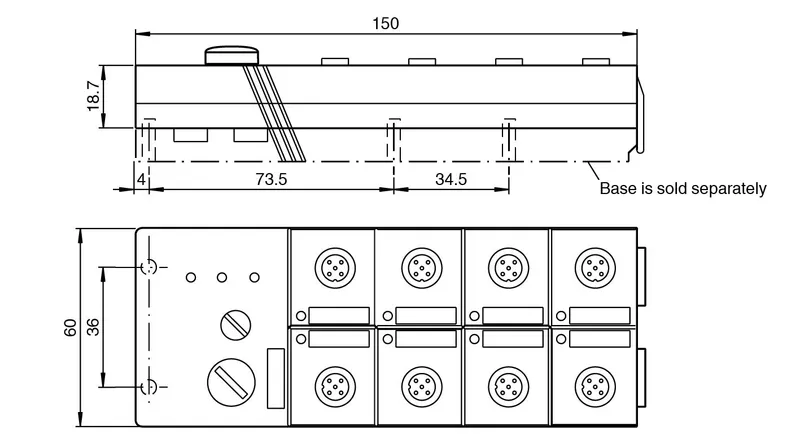

CAD & dimension drawings
| 3-D model (STEP) VBA-4E4A-G2-ZA/EA2 | STP · 229 kB |
Certificates (3)
| Canada, USA UL (CoC 20141115-E223772) | PDF · 349 kB |
| Worldwide AS-International Association (72401) | PDF · 642 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 120 kB |
More Pepperl Fuchs parts

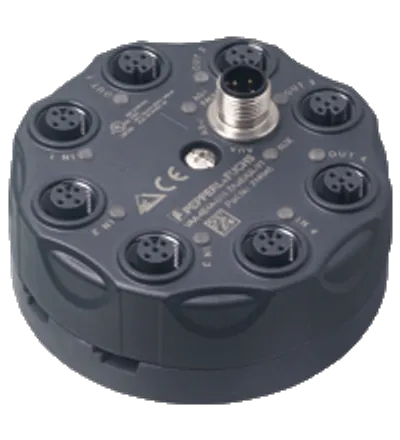

Available on requestAS-Interface sensor/actuator module VAA-4E4A-G11-ZAJ/EA2L-V1
Available on requestAS-Interface sensor/actuator module VAA-4E4A-G12-ZAJ/EA2LAvailable on requestAS-Interface sensor/actuator module VAA-4E4A-G12-ZAL/EA2L

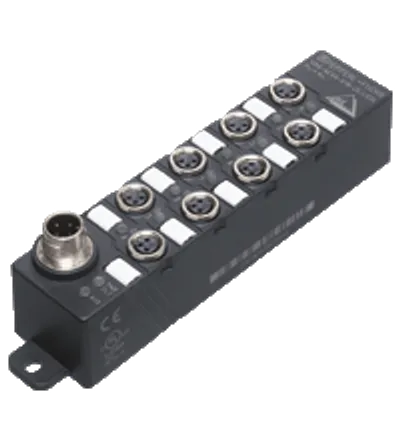

Available on requestAS-Interface sensor/actuator module VAA-4E4A-G16-ZEJ/E2L
Available on requestAS-Interface sensor/actuator module VAA-4E4A-G4-ZE/E2
Available on requestAS-Interface sensor/actuator module VAA-4E4A-KE-ZEJQ/E2L
Available on requestAS-Interface sensor/actuator module VAA-4E4A-KE-ZE/R

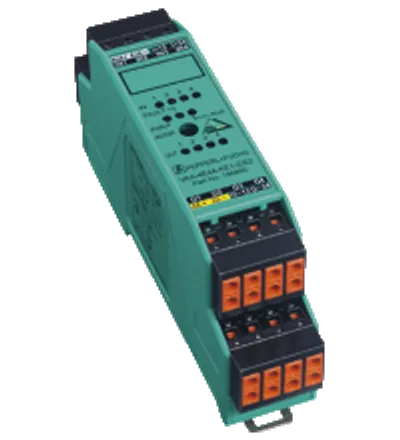

Available on requestAS-Interface sensor/actuator module VAA-4E4A-KE1-Z/E2
