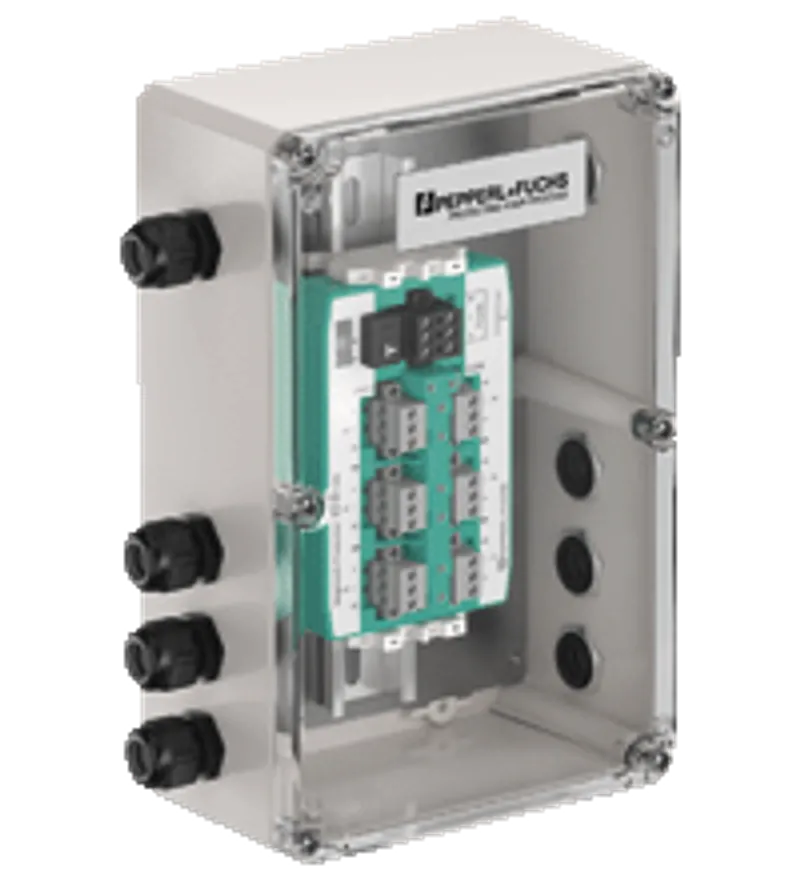

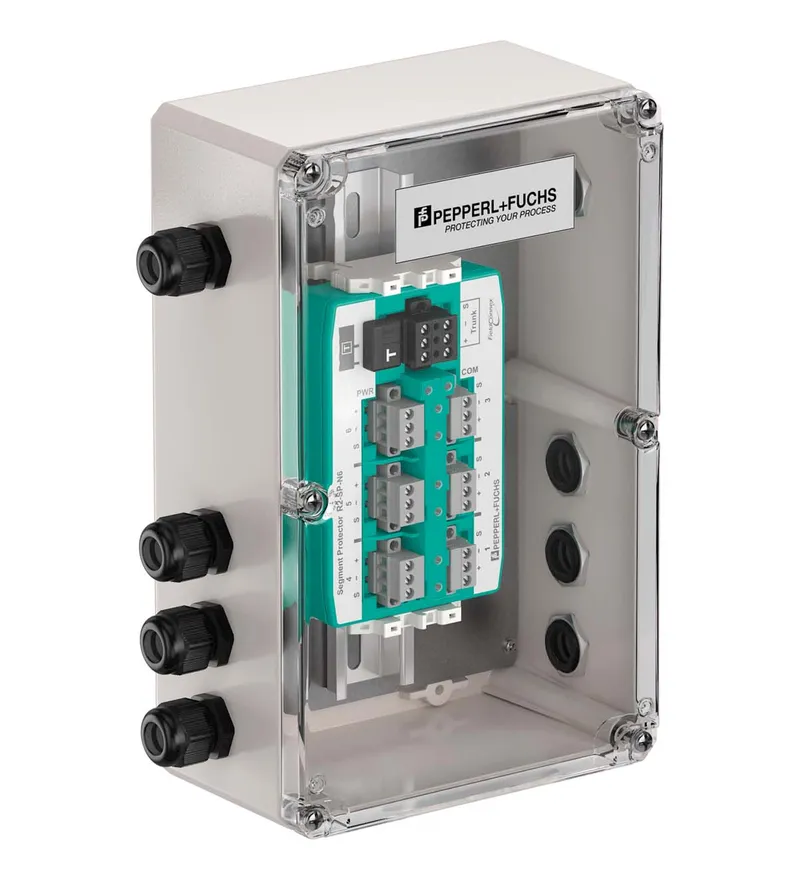

Pepperl Fuchs SPJB-**-PCW.***

Segment Protector Junction Box, Polycarbonate

MPN
SPJB-**-PCW.***
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs SPJB-**-PCW.***?

Intrinsically safe (Ex ic)/non-incendive outputs

Impact resistant polycarbonate, NEMA 4x

Configurable cable entries for trunk and spurs

Packaged solution

For FOUNDATION Fieldbus H1 and PROFIBUS PA

Installation in Class I, Division 2

Intrinsically safe (Ex ic)/non-incendive outputs, Impact resistant polycarbonate, NEMA 4x, Configurable cable entries for trunk and spurs, Packaged solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, USA, Canada, Device coupler location: Division 2 - high-power trunk, Instrument location / spur protection: Division 2 - all relevant types of protection, Function: Device coupler, Design / Mounting: Outside installation

Specifications

General specifications

Order code (Pepperl+Fuchs part number)T47945
Design / MountingOutside installation
Installed componentsSegment Protector R2-SP-IC* For technical data on installed electronic component see data sheet.
LifecycleActive (current Pepperl+Fuchs product)

Conformity

Degree of protectionEN 60529

Ambient conditions

Ambient temperature-35 ... 70 °C (-31 ... 158 °F)
Storage temperature-40 ... 85 °C (-40 ... 185 °F)
Relative humidity95 % , no moisture condensation

Mechanical specifications

Enclosure coverdetachable cover with retaining screws
Degree of protectionIP67, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13
Cable entrycable gland and stopping plug options see separate table
Material: Housingpolycarbonate, impact resistant
Material: SealPolyurethane (PUR) , one-piece
Material: Material thicknessenclosure body: 4 mm enclosure cover: 3 mm
Dimensions(W x H x D) 160 x 240 x 90 mm
Mountingholes Ø4.5 mm

SPJB-**-PCW.***: frequently asked questions

When can SPJB-**-PCW.*** be shipped?

SPJB-**-PCW.*** is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SPJB-**-PCW.*** in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SPJB-**-PCW.*** and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPJB-**-PCW.***, subject to availability and destination.

More Pepperl Fuchs parts

Pepperl Fuchs SPJB-**-AL*.*** – Segment Protector Junction Box, Aluminum
Pepperl Fuchs
SPJB-**-AL*.***

Segment Protector Junction Box, Aluminum

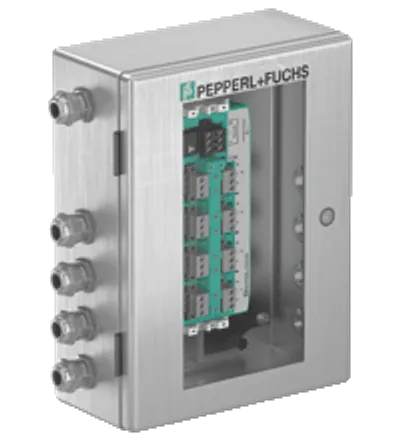

Pepperl Fuchs SPJB-**-SS*.*** – Segment Protector Junction Box, Stainless Steel
