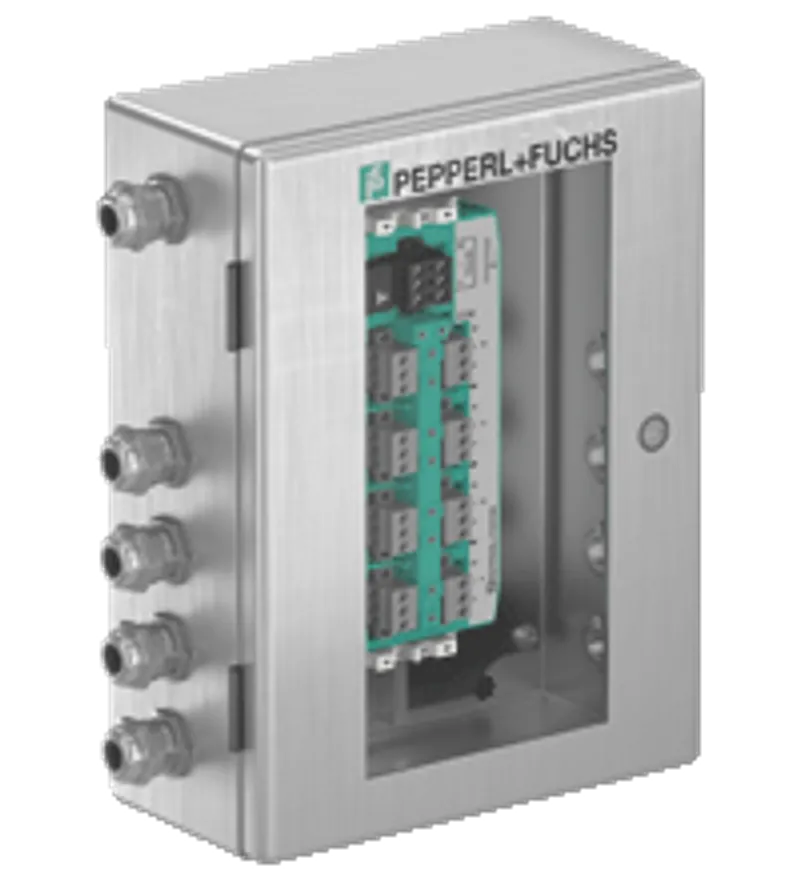

Segment Protector Junction Box, Stainless Steel SPJB-**-SS*.*** — photo 1 of 2

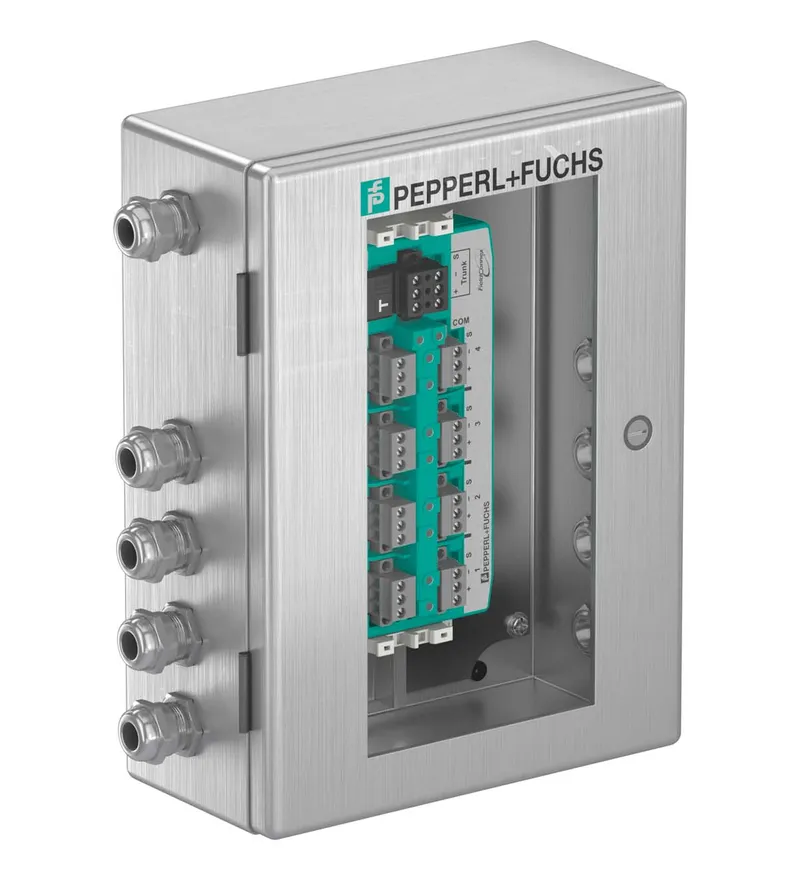

Segment Protector Junction Box, Stainless Steel SPJB-**-SS*.*** — photo 2 of 2

Available on request

Pepperl Fuchs SPJB-**-SS*.*** – Segment Protector Junction Box, Stainless Steel

MPN: SPJB-**-SS*.*** · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Ethernet Switches
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can SPJB-**-SS*.*** be shipped?

SPJB-**-SS*.*** is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SPJB-**-SS*.*** in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SPJB-**-SS*.*** and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPJB-**-SS*.***, subject to availability and destination.

• Intrinsically safe (Ex ic)/non-incendive outputs

• Stainless steel, brushed NEMA 4x

• Configurable cable entries for trunk and spurs

• Packaged solution

• For FOUNDATION Fieldbus H1 and PROFIBUS PA

• Installation in Class I, Division 2

Intrinsically safe (Ex ic)/non-incendive outputs, Stainless steel, brushed NEMA 4x, Configurable cable entries for trunk and spurs, Packaged solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, USA, Canada, Device coupler location: Division 2 - high-power trunk, Instrument location / spur protection: Division 2 - all relevant types of protection, Function: Device coupler, Design / Mounting: Outside installation

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T47944
Design / Mounting	Outside installation
Installed components	Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet.
Lifecycle	Active (current Pepperl+Fuchs product)

Conformity

Degree of protection

EN 60529

Ambient conditions

Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % , no moisture condensation

Mechanical specifications

Enclosure cover	hinged door with cam lock
Degree of protection	IP66, NEMA 4, NEMA 4X, NEMA 12
Cable entry	cable gland and stopping plug options see separate table
Material: Housing	Stainless steel 1.4404 / AISI 316L
Material: Surface	brushed finish
Material: Seal	oil-resistant, one piece
Material: Material thickness	enclosure body, enclosure cover: 1.6 mm window: 6 mm
Dimensions	(W x H x D) 203 x 254 x 102 mm window size: 197 x 95 mm
Mounting	thru-holes Ø6.4 mm
Grounding	grounding bolt on enclosure body and enclosure cover
