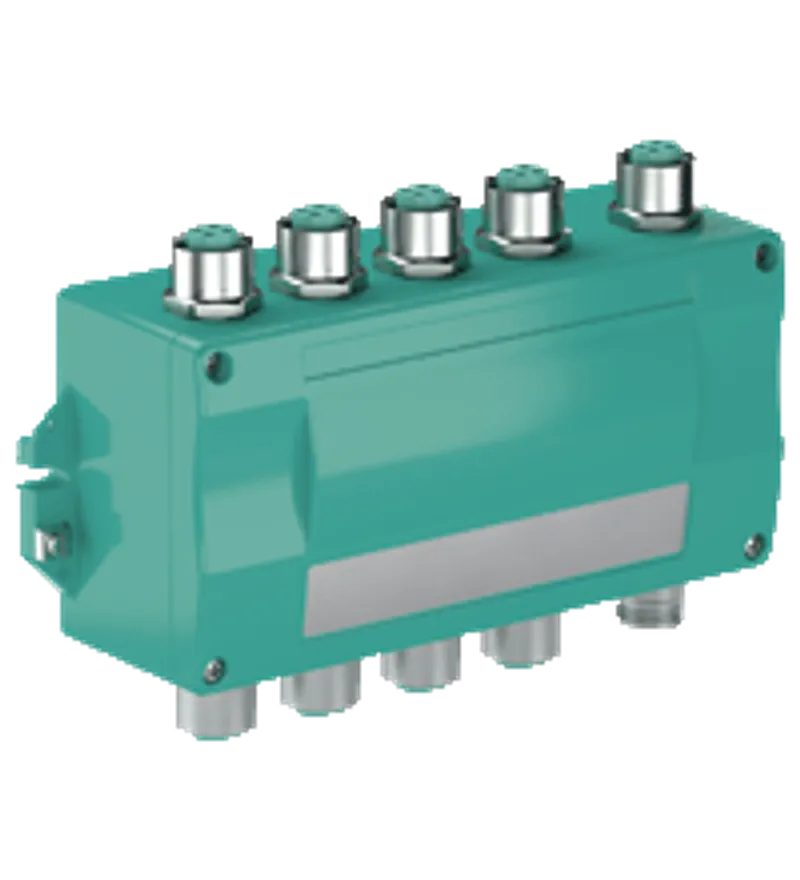

Segment Protector Junction Box, Aluminum SPJB-**-AL*.*** — photo 1 of 2

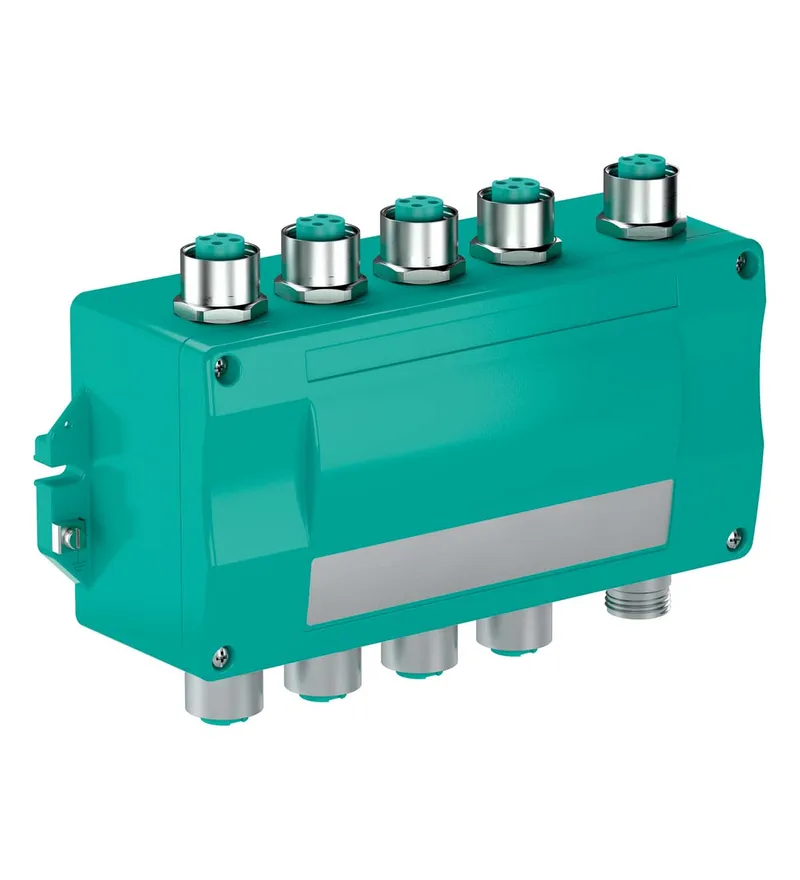

Segment Protector Junction Box, Aluminum SPJB-**-AL*.*** — photo 2 of 2

Available on request

Pepperl Fuchs SPJB-**-AL*.*** – Segment Protector Junction Box, Aluminum

MPN: SPJB-**-AL*.*** · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Ethernet Switches
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can SPJB-**-AL*.*** be shipped?

SPJB-**-AL*.*** is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SPJB-**-AL*.*** in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SPJB-**-AL*.*** and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPJB-**-AL*.***, subject to availability and destination.

• Intrinsically safe (Ex ic)/non-incendive outputs

• Anodized aluminum, IP67

• Configurable cable entries for trunk and spurs

• Packaged solution

• For FOUNDATION Fieldbus H1 and PROFIBUS PA

• Installation in Class I, Division 2

Intrinsically safe (Ex ic)/non-incendive outputs, Anodized aluminum, IP67, Configurable cable entries for trunk and spurs, Packaged solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, USA, Canada, Device coupler location: Division 2 - high-power trunk, Instrument location / spur protection: Division 2 - all relevant types of protection, Function: Device coupler, Design / Mounting: Outside installation

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T47948
Design / Mounting	Outside installation
Installed components	Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet.
Lifecycle	Active (current Pepperl+Fuchs product)

Conformity

Degree of protection

EN 60529

Ambient conditions

Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % , no moisture condensation

Mechanical specifications

Enclosure cover	detachable cover with retaining screws
Degree of protection	IP67
Cable entry	cable gland and stopping plug options see separate table
Material: Housing	Aluminum
Material: Surface	epoxy polyester paint
Material: Seal	Polyurethane (PUR) , one-piece
Material: Material thickness	enclosure body: 4 mm enclosure cover: 3 mm
Dimensions	(W x H x D) 114 x 258 x 84 mm
Mounting	panel mount with M6 slots
Grounding	grounding bolt on enclosure body and enclosure cover
