Pepperl Fuchs OMD25M-R2400-B23-V1V1D – 2-D LiDAR Sensor
MPN: OMD25M-R2400-B23-V1V1D · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OMD25M-R2400-B23-V1V1D be shipped?
OMD25M-R2400-B23-V1V1D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OMD25M-R2400-B23-V1V1D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OMD25M-R2400-B23-V1V1D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OMD25M-R2400-B23-V1V1D, subject to availability and destination.
• Compact design
• 360°-angle of measurement
• High operating range
• High pollution tolerance

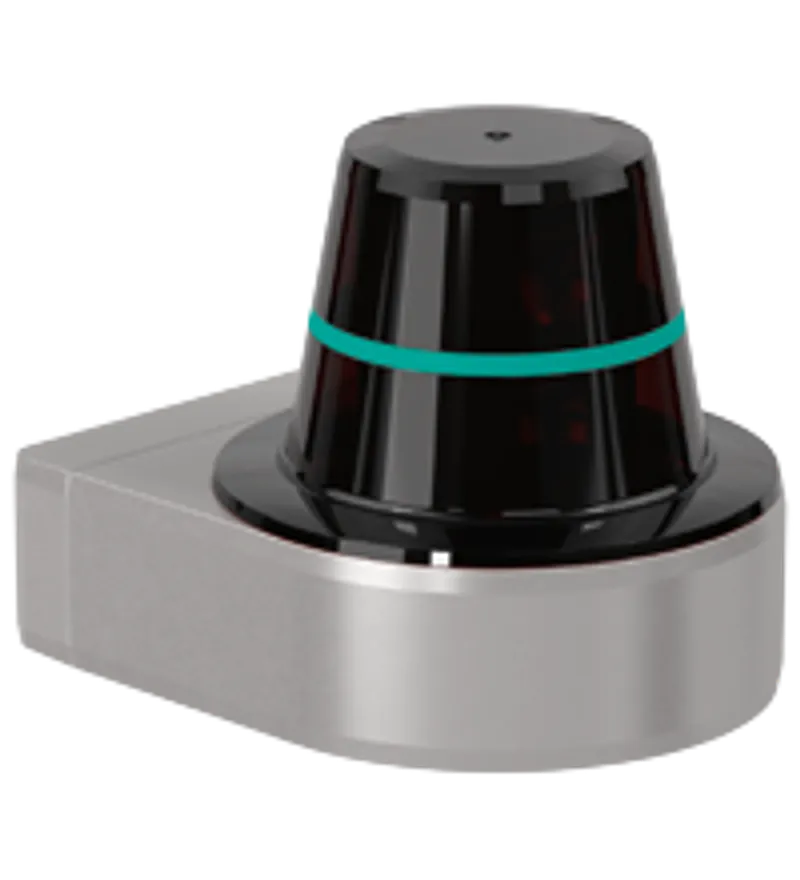

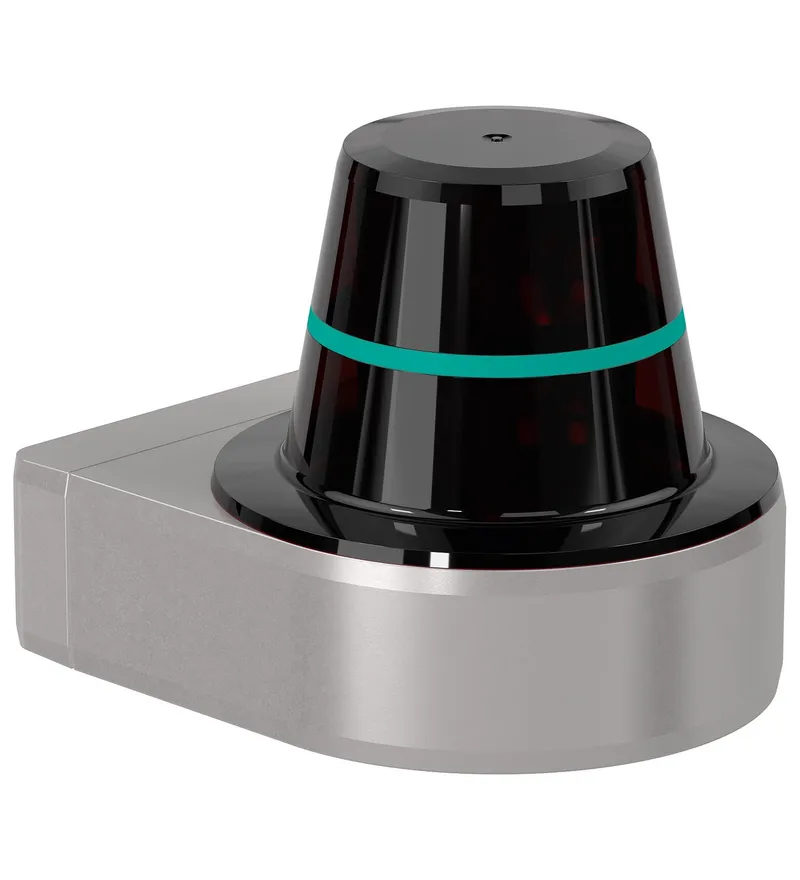

R2400, 2-D LiDAR sensor with a rugged device design for reliable measurement data, measuring range to object up to 25 m, Ethernet, Compact design, 360°-angle of measurement, High operating range, High pollution tolerance
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70182400-100001 |
| Measuring range | 0.1 ... 10 m (black 10%)0,1 … 25 m (white 90%) 0.1 … 40 m (reflector) Min. reflectivity 2.5% |
| Reference target | Kodak white (90%) |
| Light source | laser diode |
| Light type | modulated infrared light |
| Laser nominal ratings: Note | LASER RADIATION , DO NOT STARE INTO BEAM |
| Laser nominal ratings: Laser class | 1 |
| Laser nominal ratings: Wave length | 905 nm |
| Laser nominal ratings: Beam divergence | transversal 4 mrad , longitudinal 1 mrad |
| Laser nominal ratings: Pulse length | 5 ns |
| Laser nominal ratings: Repetition rate | 72 kHz |
| Laser nominal ratings: max. pulse energy | < 150 nJ |
| Measuring method | Pulse Ranging Technology (PRT) |
| Scan rate | 10 ... 20 s-1 |
| Scanning angle | 360° |
| Diameter of the light spot | 50 mm x 50 mm at 10 m |
| Ambient light limit | 80000 Lux |
| Resolution | 1 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 80 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green |
| Data flow indicator | LED yellow: active ethernet LED green: Ethernet link |
| Function indicator | LED red: fault |
Electrical specifications
| Operating voltage | 12 ... 30 V DC UB |
| Ripple | 10 % within the supply tolerance |
| No-load supply current | ≤ 290 mA / 24 V DC I0 |
| Protection class | III |
| Power consumption | < 7 W P0 |
| Time delay before availability | < 25 s tv |
Interface
| Interface type | Fast Ethernet |
| Protocol | HTTP , UDP/IP |
Conformity
| Electromagnetic compatibility | EN IEC 61000-6-2 EN IEC 61000-6-4 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Laser safety | EN 60825-1:2014 |
Measurement accuracy
| Measuring speed | 72000 measurements per second |
| Measured value noise | typ. ± 20 mm (1 sigma; max 20 mm; 0,1 m ... 8 m) |
| Angle resolution | 0.05 ° |
| Absolute accuracy | typ. ± 30 mm |
| Repeat accuracy | < 16 mm |
Approvals and certificates
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -30 ... 50 °C (-22 ... 122 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | 95 % , no moisture condensation |
Mechanical specifications
| Degree of protection | IP67 |

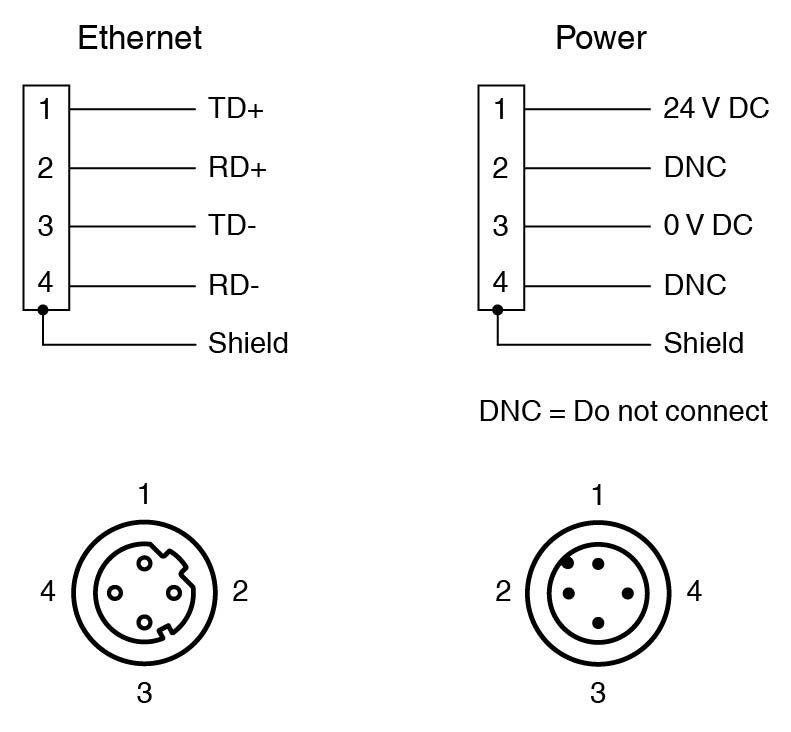

| Connection | 4-pin, M12x1 connector, standard (supply) , shield connected on both sides 4-pin, M12x1 socket, D-coded (LAN) |
| Material: Housing | PC + Aluminum |
| Material: Optical face | PC |
| Mass | approx. 0.55 kg |

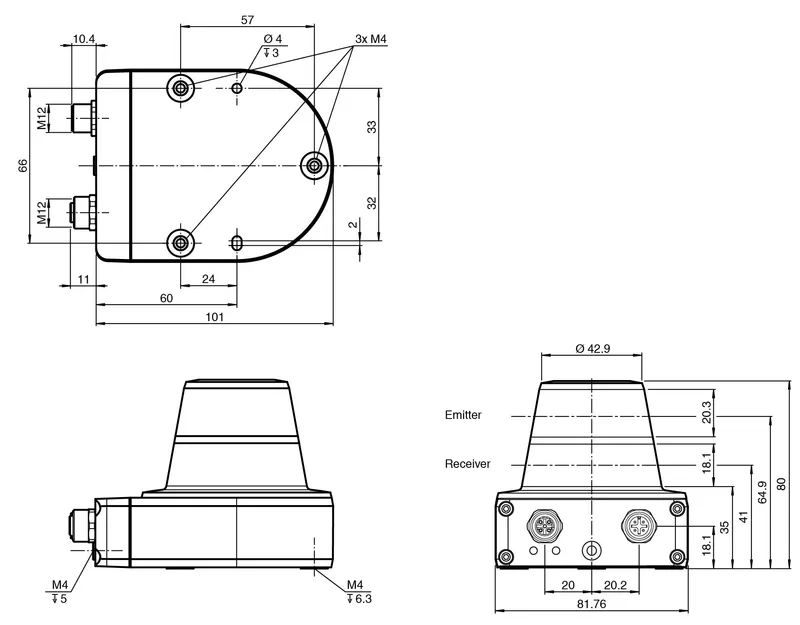

| Dimensions: Height | 80 mm |
| Dimensions: Width | 82 mm |
| Dimensions: Depth | 101 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet OMD25M-R2400-B23-V1V1D | |
| Commissioning Instructions | PDF · 141 kB |
Certificates (1)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 139 kB |
