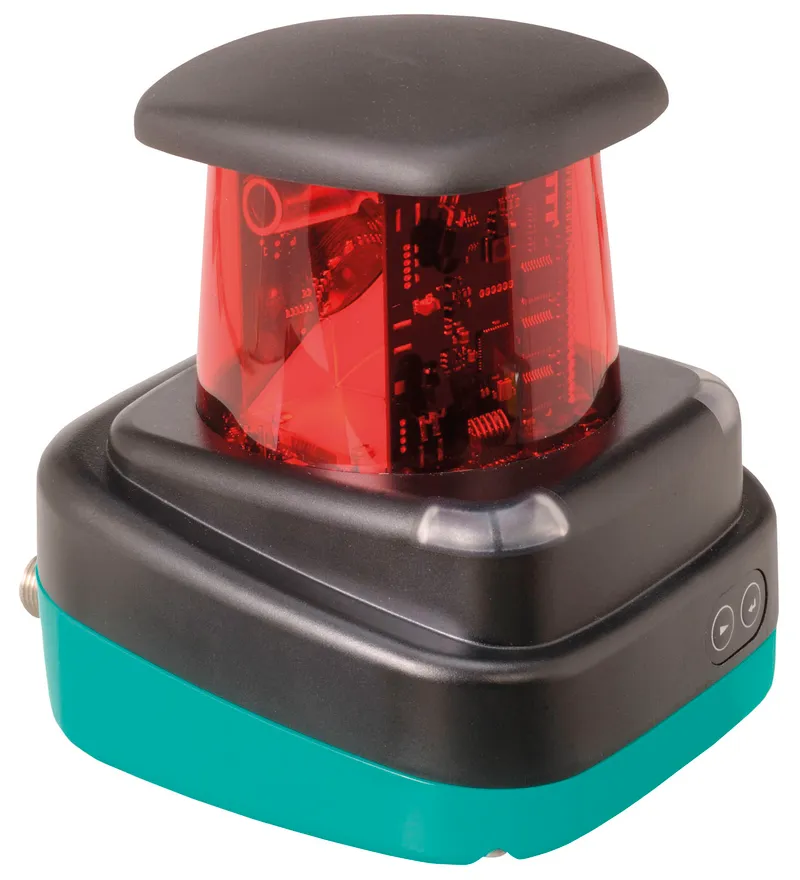

2-D LiDAR Sensor OMD15M-R2000-B23-V1V1D — photo 1 of 4

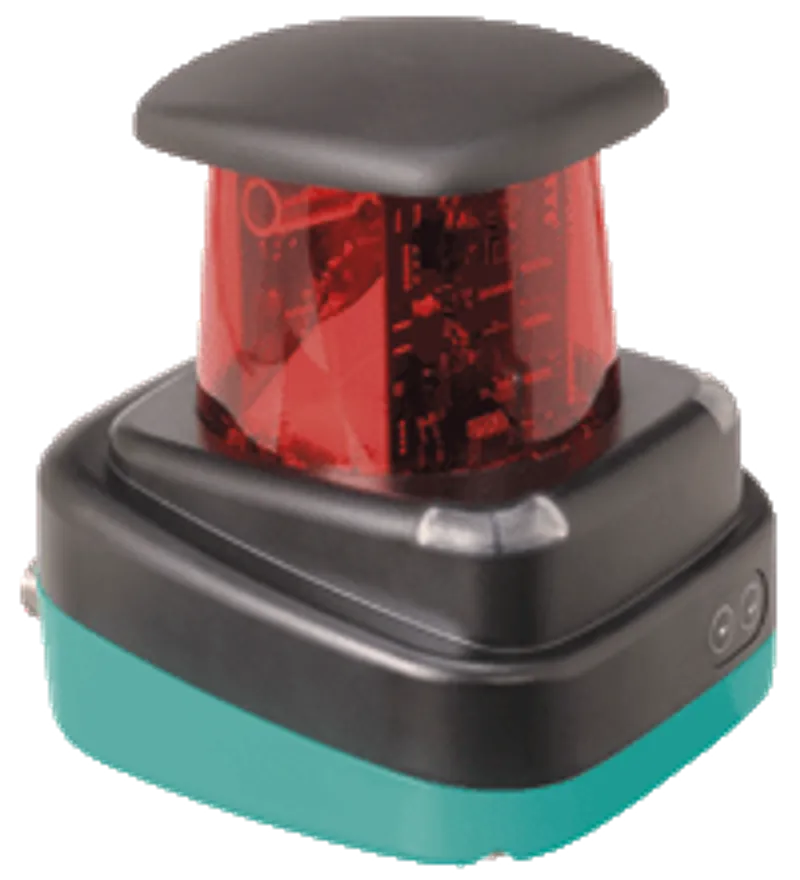

2-D LiDAR Sensor OMD15M-R2000-B23-V1V1D — photo 2 of 4

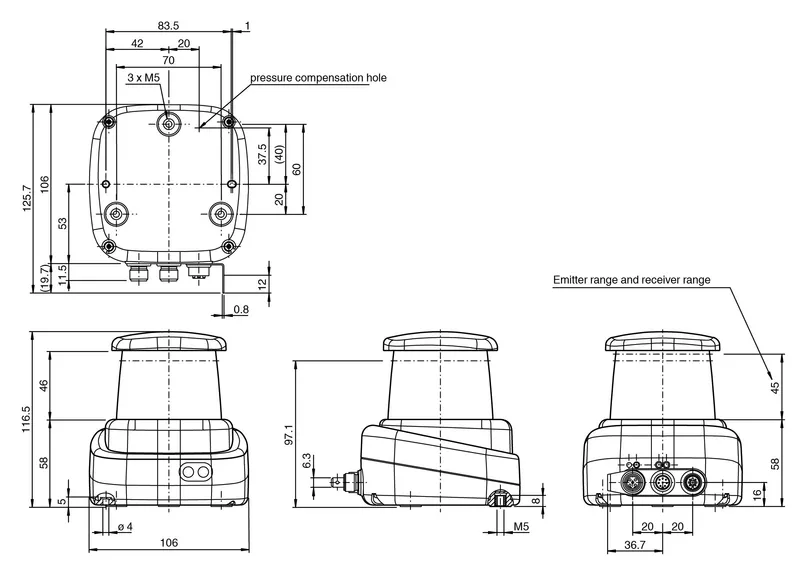

2-D LiDAR Sensor OMD15M-R2000-B23-V1V1D — photo 3 of 4

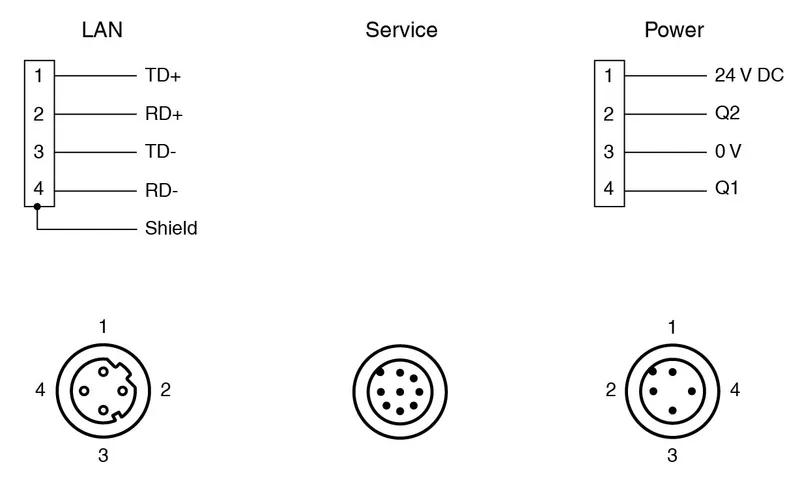

2-D LiDAR Sensor OMD15M-R2000-B23-V1V1D — photo 4 of 4

Available on request

Pepperl Fuchs OMD15M-R2000-B23-V1V1D – 2-D LiDAR Sensor

MPN: OMD15M-R2000-B23-V1V1D · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Automatic Doors and Access Systems
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can OMD15M-R2000-B23-V1V1D be shipped?

OMD15M-R2000-B23-V1V1D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up OMD15M-R2000-B23-V1V1D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for OMD15M-R2000-B23-V1V1D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OMD15M-R2000-B23-V1V1D, subject to availability and destination.

• Very high angle resolution

• Red laser as the light emitter

• Measuring method PRT (Pulse Ranging Technology)

• Flexible measured data filter

R2000 UHD, 2-D LiDAR sensor for precise and highly dynamic positioning, measuring range to object up to 15 m, Ethernet, Very high angle resolution, Red laser as the light emitter, Measuring method PRT (Pulse Ranging Technology), Flexible measured data filter

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70175247
Measuring range	0.5 ... 5 m (black 10%)0.2 ... 15 m (white 90 %) 0.2 to 60 m (reflector)
Light source	laser diode
Light type	modulated visible red light
Laser nominal ratings: Note	LASER LIGHT , DO NOT STARE INTO BEAM
Laser nominal ratings: Laser class	1
Laser nominal ratings: Wave length	660 nm
Laser nominal ratings: Beam divergence	1 mrad
Laser nominal ratings: Pulse length	5 ns
Laser nominal ratings: Repetition rate	250 kHz
Laser nominal ratings: max. pulse energy	< 4 nJ
Measuring method	Pulse Ranging Technology (PRT)
Scan rate	10 ... 50 s-1
Scanning angle	360°
Diameter of the light spot	< 20 mm at 10 m
Filter	Maximum, average, median, reflectivity
Ambient light limit	50000 Lux
Resolution	1 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	75 a
Mission Time (TM)	10 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

Operation indicator	LED green
Data flow indicator	LED yellow: active ethernet LED green: Ethernet link
Function indicator	LED red: fault LED yellow: Q1 + Q2
Control elements	2 Button
Parameterization indicator	24 x 252 pixels , red

Electrical specifications

Operating voltage	10 ... 30 V DC UB
Ripple	10 % within the supply tolerance
No-load supply current	≤ 400 mA / 24 V DC I0
Power consumption	< 10 W P0
Time delay before availability	< 40 s tv

Interface

Interface type	Fast Ethernet, 2 switching outputs
Protocol	HTTP , TCP/IP and UDP/IP

Input/Output

Input/output type

2 Inputs/Outputs , Independently configurable , short circuit/reverse polarity protected

Output

Switching threshold	low: Ua Ub - 2 V
Switching current	100 mA per output

Conformity

Product standard	EN 60947-5-2
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Laser safety	EN 60825-1:2014

Measurement accuracy

Measuring speed	250000 measurements per second
Measured value noise	typ. ± 12 mm (1 sigma; max. 15 mm) with measured value filter deactivated
Angle resolution	0.014 °
Absolute accuracy	typ. ± 25 mm
Repeat accuracy	< 12 mm

Approvals and certificates

Protection class	III
UL approval	cULus Listed, Class 2 Power Source, Type 1 enclosure
CCC approval	CCC approval / marking not required for products rated ≤36 V
FDA approval	IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.

Ambient conditions

Ambient temperature	-10 ... 50 °C (14 ... 122 °F)
Storage temperature	-20 ... 70 °C (-4 ... 158 °F)
Relative humidity	95 % , no moisture condensation

Mechanical specifications

Degree of protection	IP65
Connection	4-pin, M12x1 connector, standard (supply) ,8-pin, M12x1 connector, A-coded (MultiPort) ,4-pin, M12x1 socket, D-coded (LAN)
Material: Housing	ABS + PC + Aluminum
Material: Optical face	PMMA
Mass	approx. 0.8 kg
Dimensions: Height	116.5 mm
Dimensions: Width	106 mm
Dimensions: Length	106 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet OMD15M-R2000-B23-V1V1D	PDF
Brief Instructions - OMD*R2000	PDF · 822 kB
Instruction Manual	PDF · 150 kB
Manual	PDF · 4.5 MB

Certificates (3)

EU Declaration of Conformity (Pepperl+Fuchs)	PDF · 314 kB
UK Declaration of Conformity (Pepperl+Fuchs)	PDF · 235 kB
Canada USA UL Ordinary Location (UL-CA-L87056-31-91205102-0 / UL-US-L87056-11-91205102-0)	PDF · 558 kB
