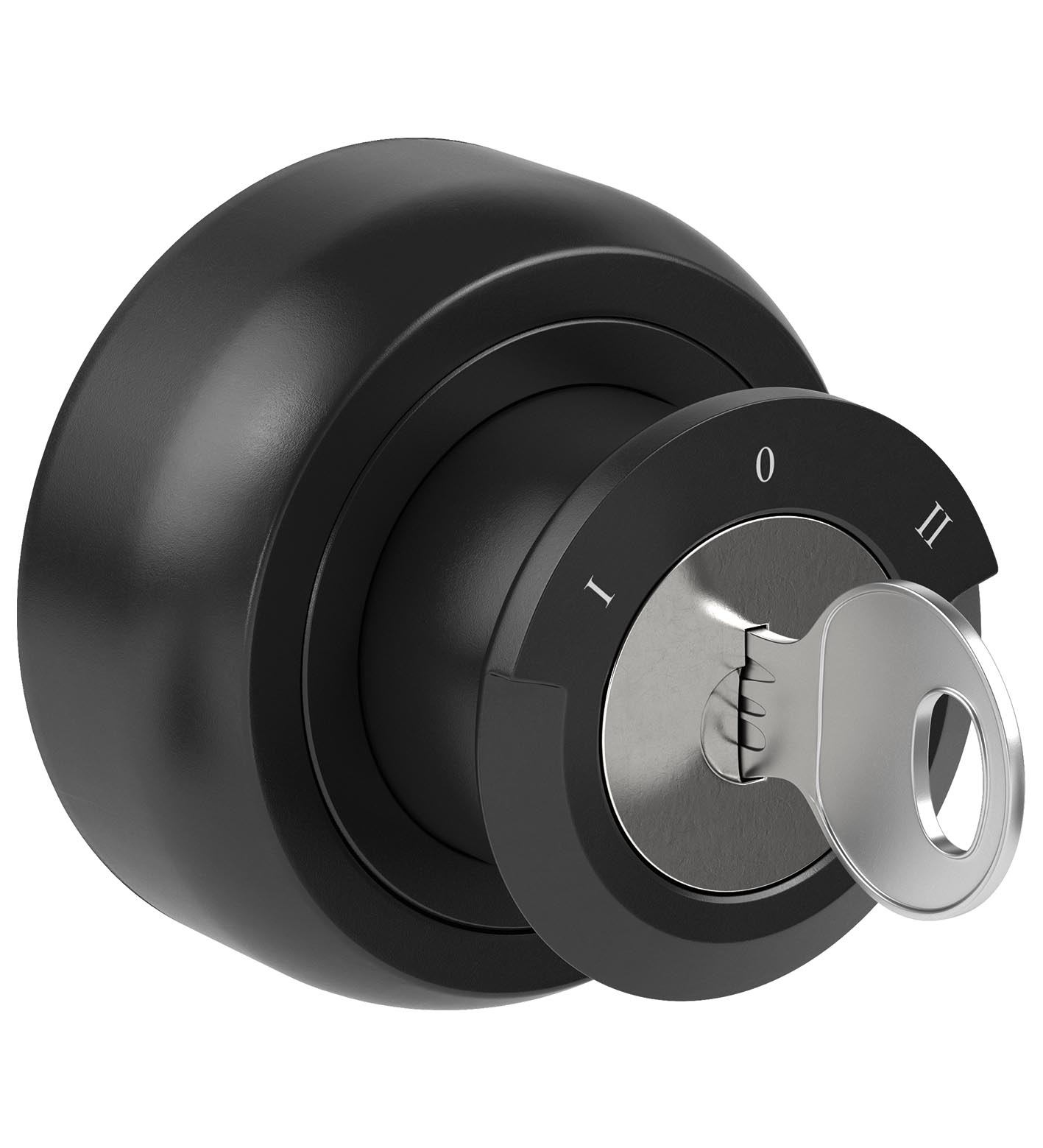

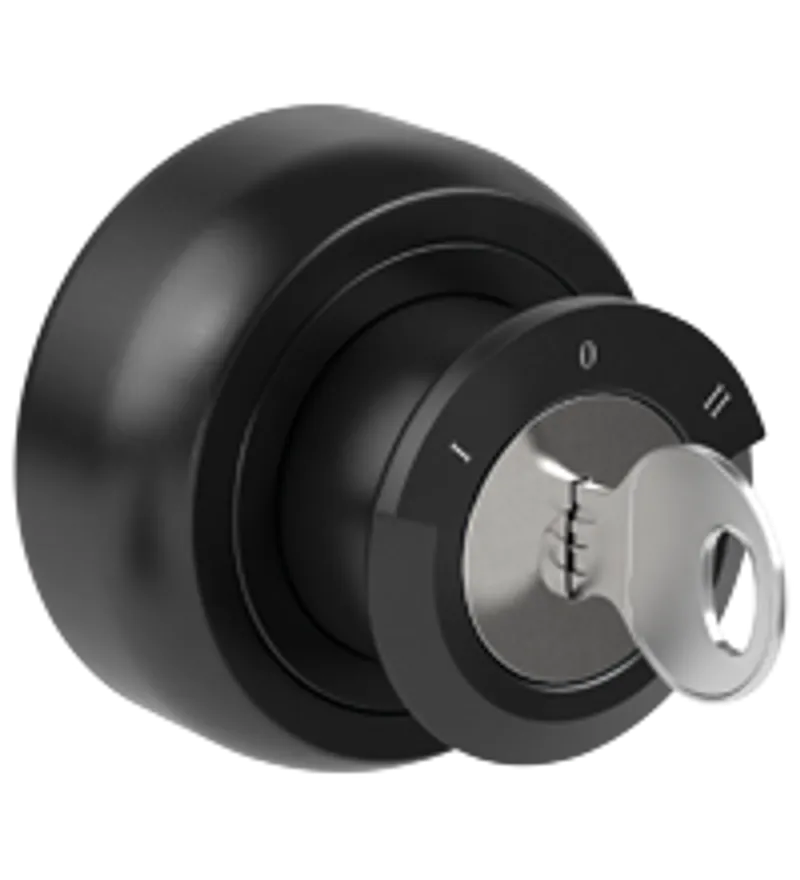

Pepperl Fuchs CFP.K3S.SP – Actuator Head Ex e - Key Control Switch

MPN: CFP.K3S.SP · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can CFP.K3S.SP be shipped?

CFP.K3S.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CFP.K3S.SP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CFP.K3S.SP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFP.K3S.SP, subject to availability and destination.

• 3 switching positions with center OFF

• Labeling 'I - 0 - II'

• Both sides spring return

• Key release

• Component for appropriately certified Ex e enclosures

• For use with base-mounted contact modules

• Ex e and Ex tb certified

• Polyamide

3 switching positions with center OFF, Labeling 'I - 0 - II', Both sides spring return, Key release, Component for appropriately certified Ex e enclosures, For use with base-mounted contact modules, Ex e and Ex tb certified, Polyamide, Function: key switch rotary actuator, Housing: Polyamide (PA), Marking: [exsign] II 2 GD , Ex e IIC Gb , Ex tb IIIC Db

Specifications

Electrical specifications

Order code (Pepperl+Fuchs part number)	290139
Function	key switch rotary actuator
Color	black
Switching configuration	3 position changeover with center OFF
Operator action	spring - engage - spring
Labeling	I - 0 - II
Lifecycle	Active (current Pepperl+Fuchs product)

Mechanical specifications

Degree of protection	IP66
Material: Housing	Polyamide (PA)
Material: Finish	inherent color black
Material: Washer gasket	silicone
Mass	46 g

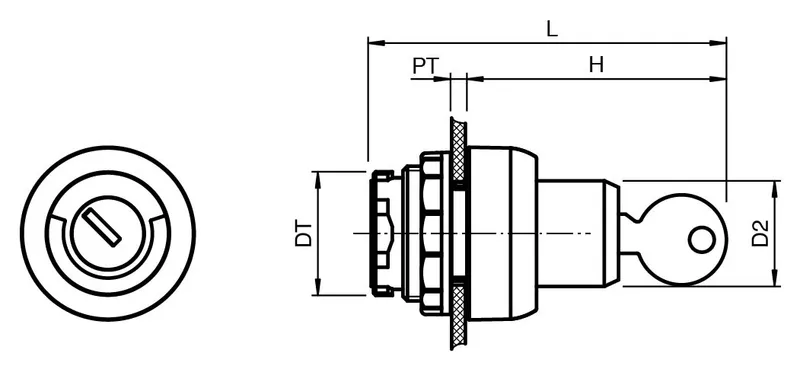

Dimensions: Actuator head diameter (D2)	39 mm
Dimensions: Panel wall thickness (PT)	1 ... 6 mm
Dimensions: Diameter thru-hole (DT)	30.6 mm
Dimensions: Length outside enclosure (H)	33.3 mm
Dimensions: Total length (L)	53.6 mm
Tightening torque	2.8 ... 3.4 Nm
Mounting	use with base-mounted contact modules

Ambient conditions

Ambient temperature	-40 ... 55 °C (-40 ... 131 °F)
Service temperature	-40 ... 65 °C (-40 ... 149 °F)

Data for application in connection with hazardous areas

EU-type examination certificate	CML 16 ATEX 3339U
Marking	II 2 GD Ex e IIC Gb Ex tb IIIC Db

International approvals

IECEx approval

IECEx CML 16.0114U

Conformity

Degree of protection

EN 60529

General information

Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
Enclosure type	LR*
