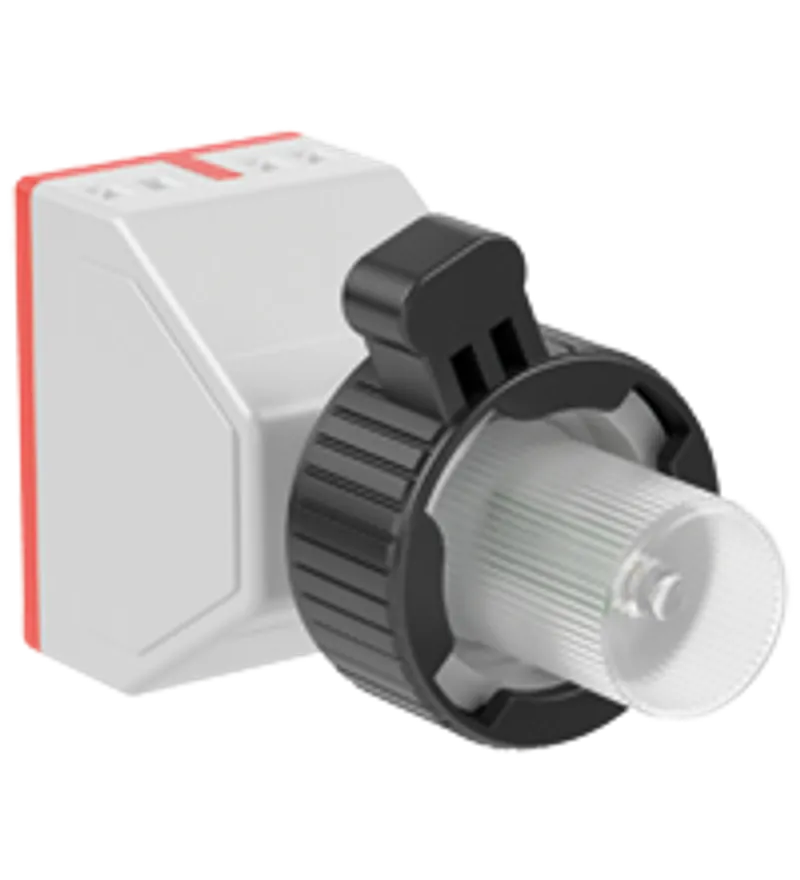

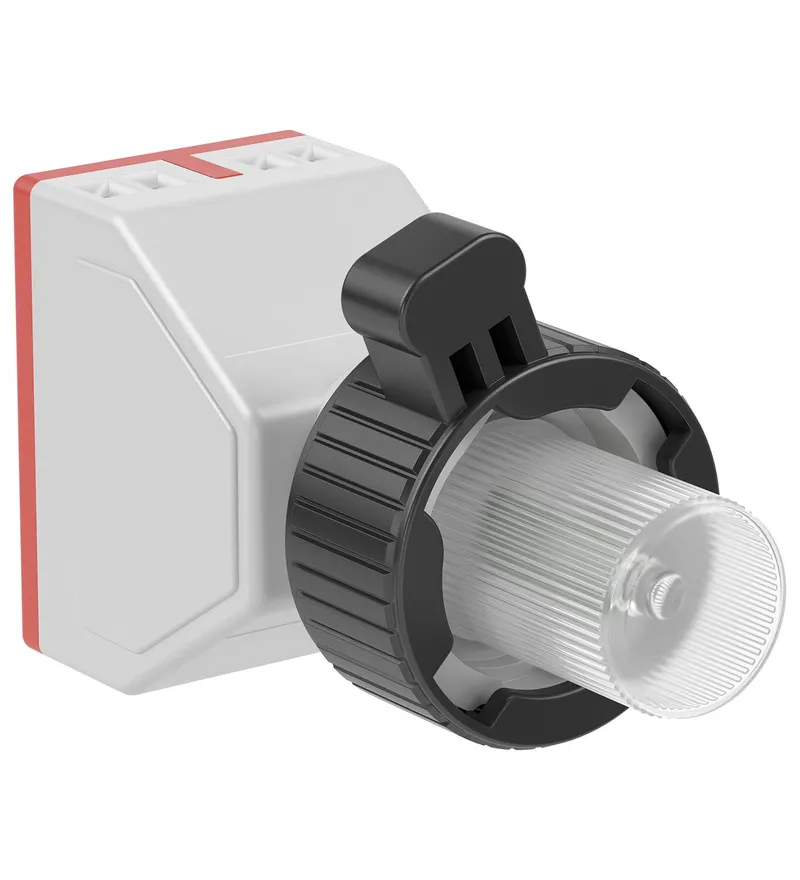

Pepperl Fuchs CFP.GE.SP – LED Module Ex e, Cover-mounted
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CFP.GE.SP be shipped?
CFP.GE.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CFP.GE.SP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CFP.GE.SP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFP.GE.SP, subject to availability and destination.
• 10 ... 28 V AC/DC
• Component for appropriately certified Ex e enclosures
• Mounting on enclosure cover
• Ex de certified
• Polyamide
10 ... 28 V AC/DC, Component for appropriately certified Ex e enclosures, Mounting on enclosure cover, Ex de certified, Polyamide, Function: LED module, Housing: Polyamide (PA), Marking: [exsign] II 2 G , Ex de IIC Gb
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290228 |
| Operating voltage | 28 V max. AC/DC |
| Power consumption | 1 W max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque | 0.8 Nm |
| Function | LED module |
| Rated operating voltage | 10 ... 28 V AC/DC |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP20 |
| Material: Housing | Polyamide (PA) |
| Mass | 71 g |

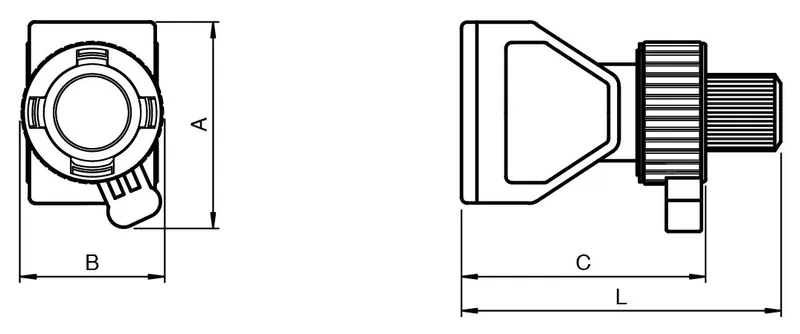

| Dimensions: External dimension (A) | 54 mm |
| Dimensions: External dimension (B) | 37 mm |
| Dimensions: External dimension (C) | 63 mm |
| Dimensions: Total length (L) | 88 mm |
| Mounting | cover-mounted via actuator head |
Ambient conditions
| Service temperature | -40 ... 90 °C (-40 ... 194 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking | II 2 G Ex de IIC Gb |
International approvals
| IECEx approval | IECEx CML 16.0114U |
Conformity
| Degree of protection | EN 60529 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | SR.CS* |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet CFP.GE.SP | |
| Manual | PDF · 501 kB |
Certificates (1)
| Europe CML ATEX Category 1 G ATEX Category 2 G Ex e Ex tb (CML 16 ATEX 3339U) | PDF · 184 kB |
More Pepperl Fuchs parts
Available on requestCapacitive sensor CCN5-F46A-E2Available on requestCapacitive sensor CCN5-F46A-E3
Available on requestActuator Head Assembly CFM.C.R20B.K01.SP
Available on requestBlanking Plug (Ex e) CFP.BK.SP
Available on requestLED Module Ex e and Ex i, Cover-mounted CFP.GI.SP
Available on requestActuator Head Ex e - Key Control Switch CFP.K3S.SP
Available on requestLED Module Ex e, Base-mounted CFP.L.SP

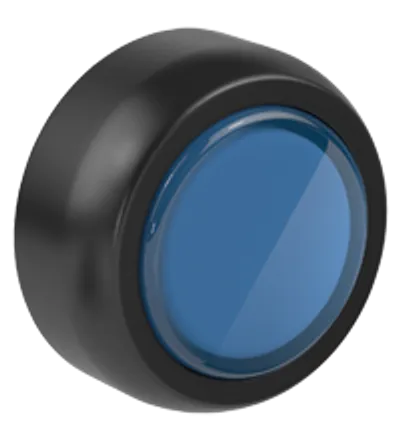

Available on requestActuator Head Ex e - LED Indicator CFP.LB.SP
