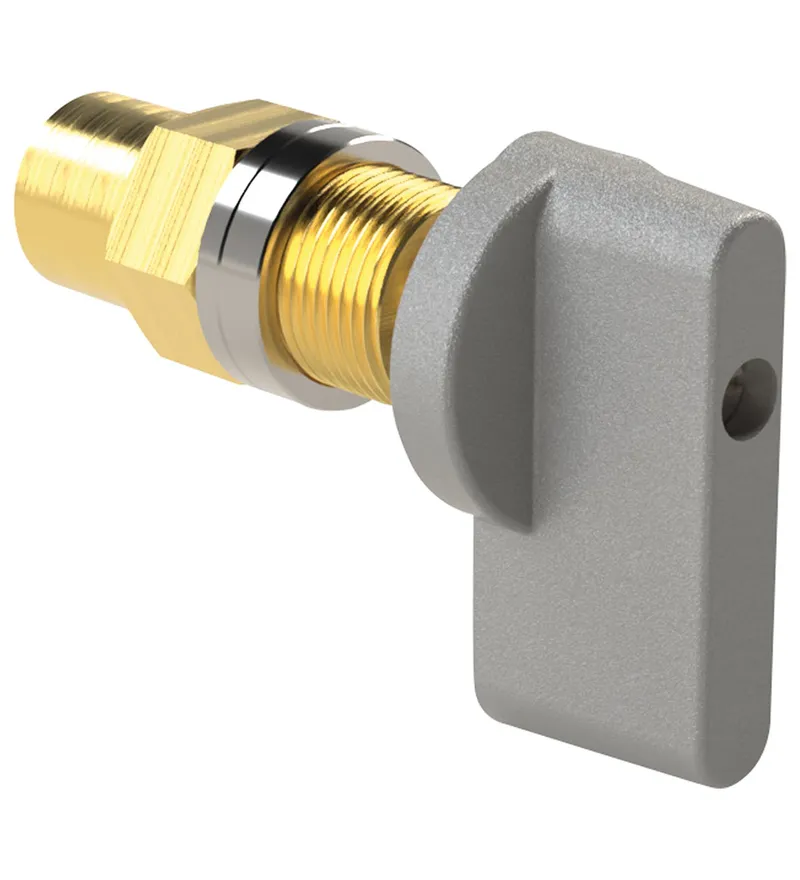

Pepperl Fuchs CFM.C.R20B.K01.SP – Actuator Head Assembly
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Control Units (Ex e) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CFM.C.R20B.K01.SP be shipped?
CFM.C.R20B.K01.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CFM.C.R20B.K01.SP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CFM.C.R20B.K01.SP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFM.C.R20B.K01.SP, subject to availability and destination.
• Component for appropriately certified Ex d enclosures
• Ex db and Ex tb certified
• Polyamide and brass nickel-plated
Component for appropriately certified Ex d enclosures, Ex db and Ex tb certified, Polyamide and brass nickel-plated, Function: Rotary actuator for 6 mm square shaft , Housing: Handle : Aluminum LM6 , shaft: brass, Marking: [exsign] II 2 GD , Ex db IIC Gb , Ex tb IIIC Db
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 70182757 |
| Function | Rotary actuator for 6 mm square shaft |
| Switching configuration | According to internal component |
| Operator action | According to internal component |
| Labeling | none |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Thread size (TD) | M20 |
| Degree of protection | IP66 |
| Material: Housing | Handle : Aluminum LM6 shaft: brass |
| Material: Finish | Handle : powder coated |
| Mass | 58 g |
| Mechanical life | 10000000 switching operations |

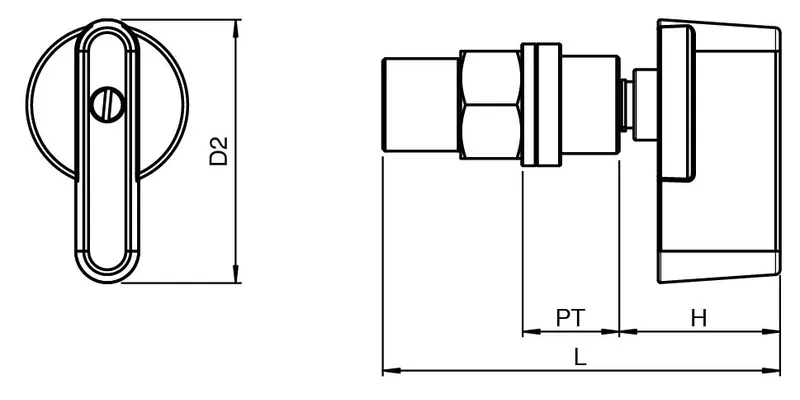

| Dimensions: Actuator head diameter (D2) | 54 mm |
| Dimensions: Panel wall thickness (PT) | 12 ... 20 mm |
| Dimensions: Length outside enclosure (H) | 33 mm |
| Dimensions: Total length (L) | 81.5 mm |
| Tightening torque | 5 Nm |
| Mounting | use with lid-mounted contact modules |
Ambient conditions
| Service temperature | -60 ... 120 °C (-76 ... 248 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 17 ATEX 1341U |
| Marking | II 2 GD Ex db IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx CML 17.0181U |
| UKCA approval | CML 21 UKEX 1422U |
Conformity
| Degree of protection | EN 60529 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | EJB , EJBX , GUB , GUBX |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet CFM.C.R20B.K01.SP |
