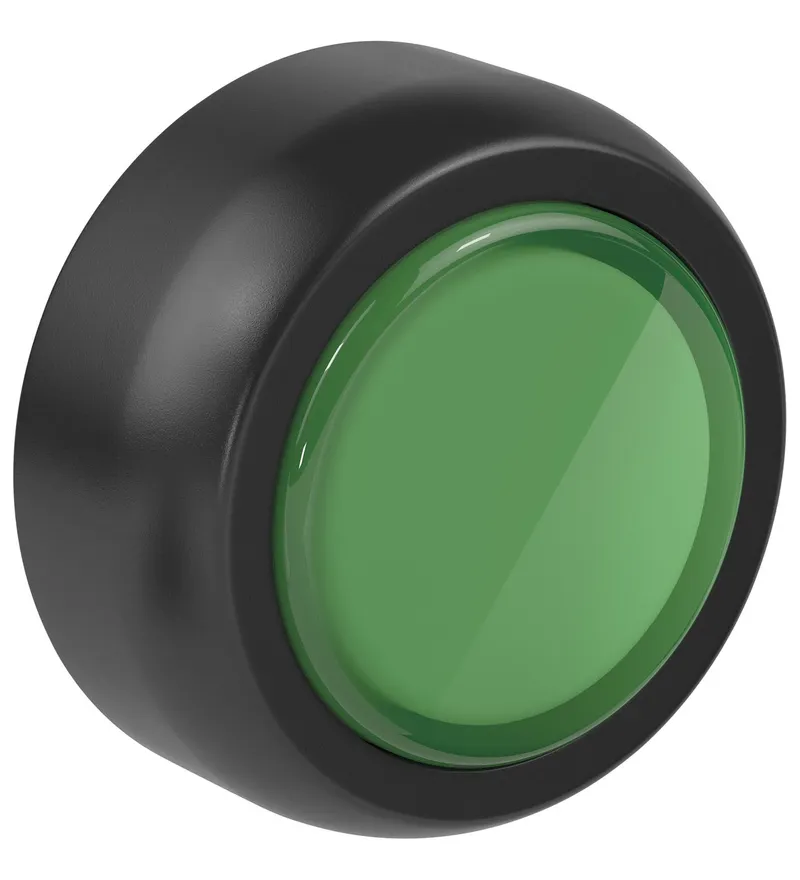

Pepperl Fuchs CFP.LG.SP – Actuator Head Ex e - LED Indicator
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CFP.LG.SP be shipped?
CFP.LG.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CFP.LG.SP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CFP.LG.SP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFP.LG.SP, subject to availability and destination.
• Color green
• Component for appropriately certified Ex e enclosures
• Ex e and Ex tb certified
• Polyamide
Color green, Component for appropriately certified Ex e enclosures, Ex e and Ex tb certified, Polyamide, Function: LED indicator, Housing: Polyamide (PA), Marking: [exsign] II 2 GD , Ex e IIC Gb , Ex tb IIIC Db
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290085 |
| Function | LED indicator |
| Lens color | green |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP66 |
| Material: Housing | Polyamide (PA) |
| Material: Finish | inherent color black |
| Material: Washer gasket | silicone |
| Mass | 20 g |
| Dimensions: Actuator head diameter (D2) | 39 mm |
| Dimensions: Panel wall thickness (PT) | 1 ... 6 mm |
| Dimensions: Diameter thru-hole (DT) | 30.6 mm |
| Dimensions: Length outside enclosure (H) | 23.6 mm |
| Dimensions: Total length (L) | 43 mm |
| Tightening torque | 2.8 ... 3.4 Nm |
| Mounting | use with base-mounted and cover-mounted contact modules |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| Service temperature | -40 ... 65 °C (-40 ... 149 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx CML 16.0114U |
Conformity
| Degree of protection | EN 60529 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* SR*.CS* GR.CS* |
Accessories
| Optional accessories | CFP.TP |
