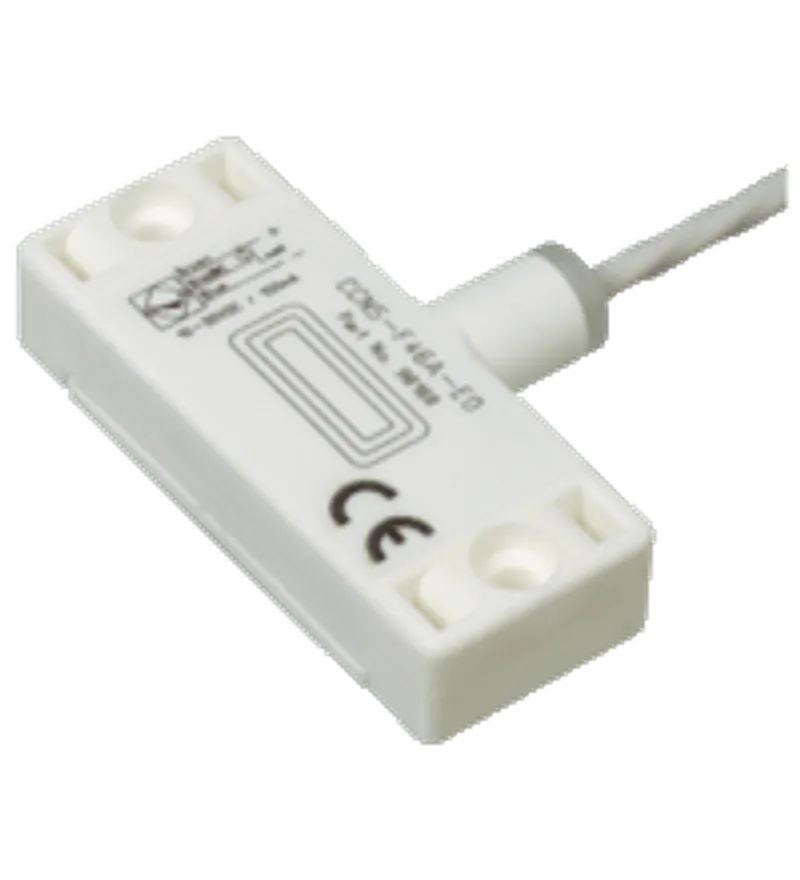

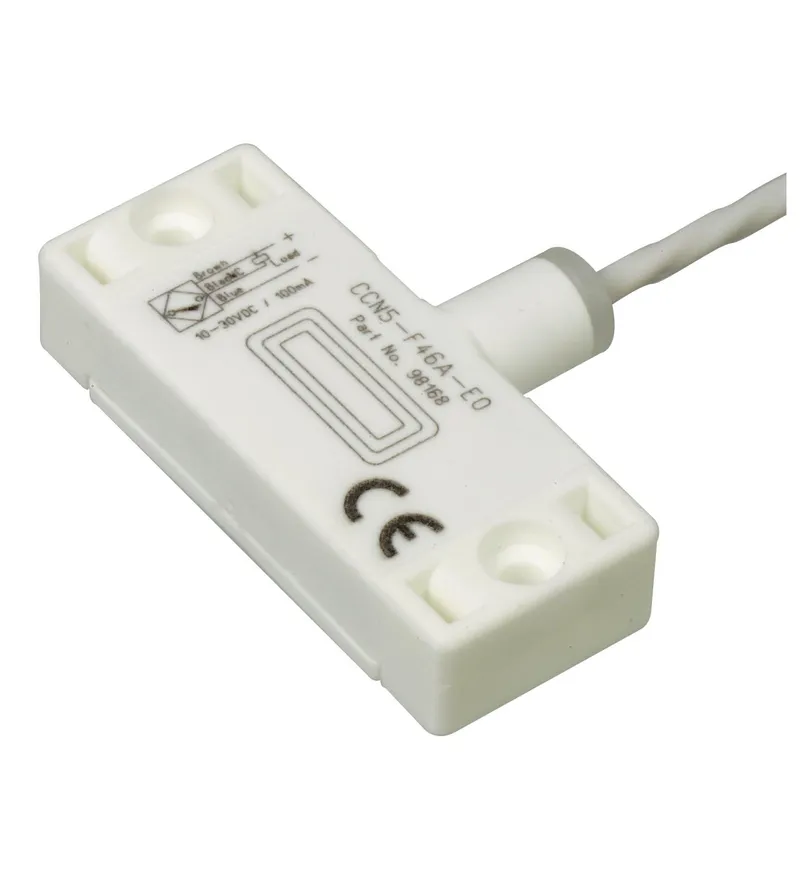

Pepperl Fuchs CCN5-F46A-E2 – Capacitive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Capacitive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CCN5-F46A-E2 be shipped?
CCN5-F46A-E2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CCN5-F46A-E2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CCN5-F46A-E2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CCN5-F46A-E2, subject to availability and destination.
• 5 mm non-flush

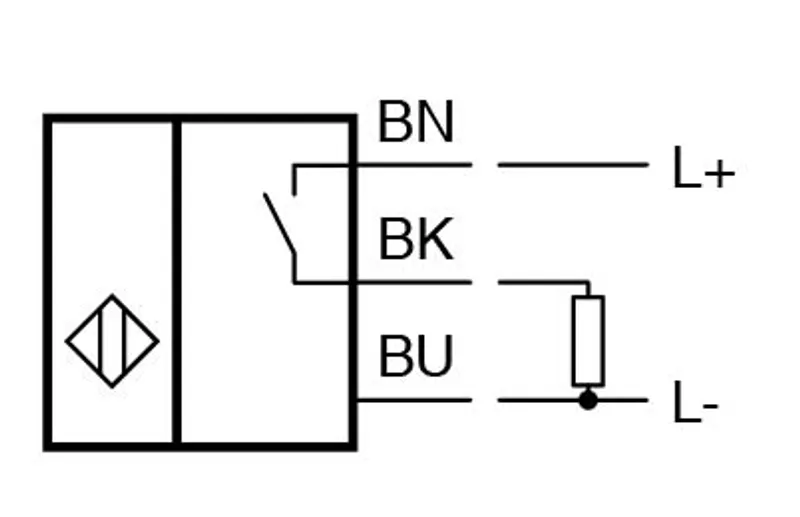

• 3-wire DC
• Flat housing
• Chemically resistant PVDF housing
• Mounting slots for cable ties
• Degree of protection IP68
• Thru-holes for screw mounting
Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PVDF, Degree of protection: IP68
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 096566 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 5 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 3.5 mm sa |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Installation conditions: B | 0 mm |
| Installation conditions: C | 10 mm |
| Installation conditions: F | 20 mm / 50 mm |
| Operating voltage | 10 ... 30 V DC UB |
| Switching frequency | 0 ... 10 Hz f |
| Hysteresis | 1 ... 10 % typ. 5 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2 V Ud |
| Operating current | 0 ... 100 mA IL |
| Lowest operating current | 0 mA Im |
| Off-state current | 0 ... 0.5 mA typ. 0.01 mA Ir |
| Off-state current TU =40 °C, switching element off | ≤ 100 µA |
| No-load supply current | ≤ 15 mA I0 |
| Time delay before availability | ≤ 50 ms tv |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 672 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Enclosure Type Rating: Type 1 |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | PVDF |
| Sensing face | PVDF |
| Degree of protection | IP68 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 3 mm - 0.2 mm |
| Cable: Bending radius | > 12 x cable diameter |
| Cable: Material | FEP |
| Cable: Color | white |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.14 mm2 |
| Cable: Length | 2 m L |

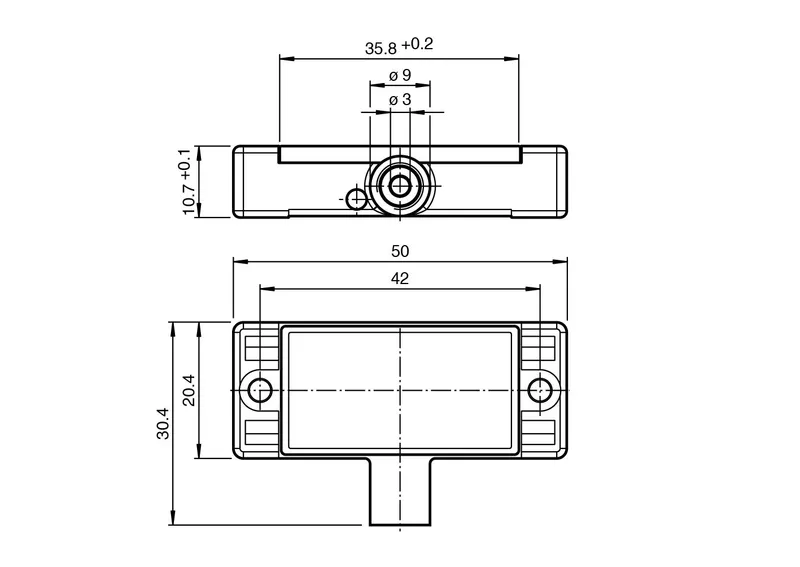

| Dimensions: Height | 10.5 mm |
| Dimensions: Width | 50 mm |
| Dimensions: Length | 30.4 mm |
| Note | cable tensile strength 20 N |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet CCN5-F46A-E2 | |
| Installation conditions | PDF · 224 kB |
CAD & dimension drawings
| EPLAN macro CCN5-F46A-E2 | EDZ · 61 kB |
| 3-D model (STEP) CCN5-F46A-E0 | STP · 119 kB |
Certificates (4)
More Pepperl Fuchs parts

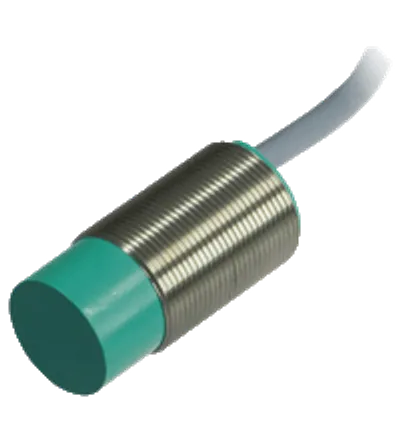

Available on requestCapacitive sensor CCN15-30GS60-E2

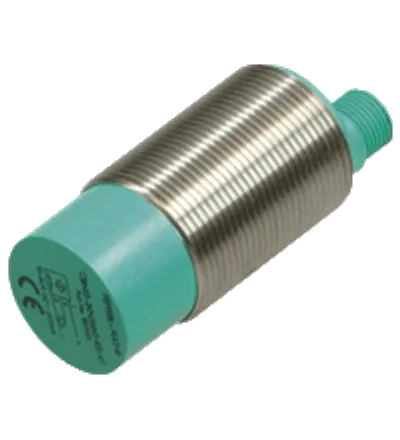

Available on requestCapacitive sensor CCN15-30GS60-E2-V1
Available on requestCapacitive sensor CCN5-F46A-E0Available on requestCapacitive sensor CCN5-F46A-E1Available on requestCapacitive sensor CCN5-F46A-E3
Available on requestActuator Head Assembly CFM.C.R20B.K01.SP

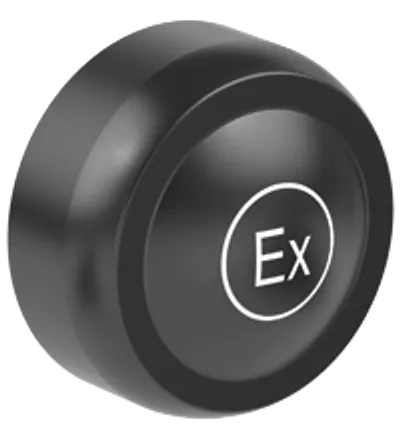

Available on requestBlanking Plug (Ex e) CFP.BK.SP
