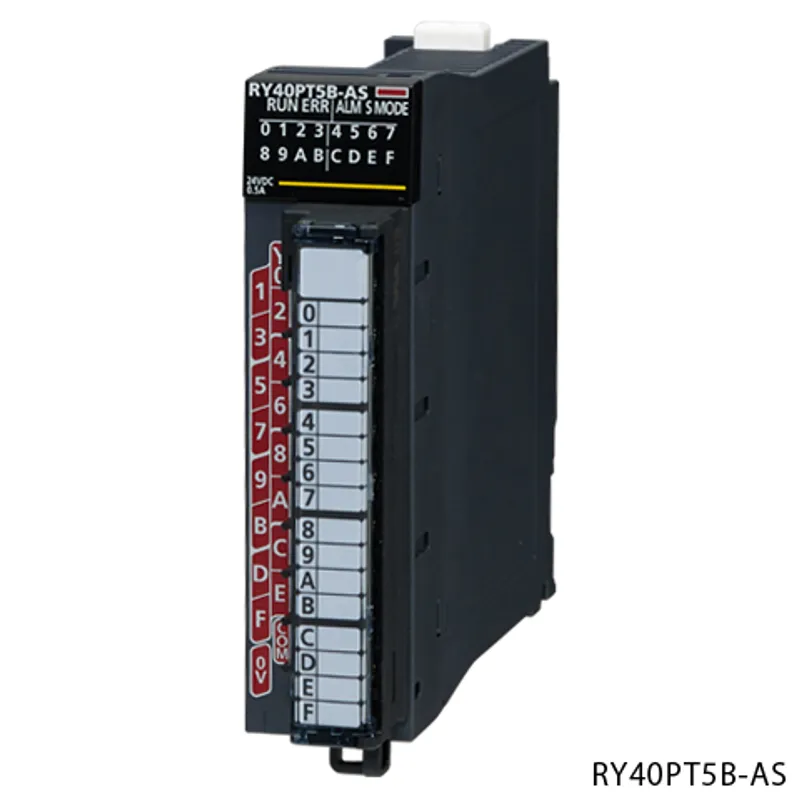

RY40PT5B-AS Mitsubishi MELSEC iQ-R Series SIL2 analog control output
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC iQ-R Series – Analog |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can RY40PT5B-AS be shipped?
RY40PT5B-AS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RY40PT5B-AS in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RY40PT5B-AS and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RY40PT5B-AS, subject to availability and destination.
The Mitsubishi Electric RY40PT5B-AS is a SIL2 analog control output in the MELSEC iQ-R Series. Transistor output: 16 points, 24 V DC, 0.5 A/point, 5 A/common, response time: 1.5 ms, 16 points/common, source type, 18-point terminal block type. For more information about IEC61508, please refer to the Technical News(FA-A0386). Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | SIL2 analog control output |
| Outline | Transistor output: 16 points, 24 V DC, 0.5 A/point, 5 A/common, response time: 1.5 ms, 16 points/common, source type, 18-point terminal block type. For more information about IEC61508, please refer to the Technical News(FA-A0386). |
Output specifications
| Output type | Transistor output (source type) |
| Number of output points | 16 points |
| Rated load voltage | 24 V DC (allowable voltage range: 20.4...28.8 V DC) |
| Maximum load current | 0.5 A/point, 5 A/common |
| Maximum inrush current | Current is limited by the overload protection function. |
| Leakage current at OFF | 0.3 mA or less |
| Maximum voltage drop at ON | 1.0 V DC (TYP.) 0.5 A |
| Output response time: OFF to ON | 0.5 ms or less |
| Output response time: ON to OFF | 1.5 ms or less |
| Surge suppressor | Zener diode |
| Fuse | None |
| Protection function: Overheat protection function | Activated in increments of 1 point. |
| Protection function: Overload protection function | Limit current with overload protection at overcurrent detection: 1.0 A or more/point Activated in increments of 1 point. |
| External power supply: Voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| External power supply: Current | 87 mA (at 24 V DC) |
| Output common terminal arrangement | 16 points/common |
Common specifications
| Control cycle time | 2 ms |
| Dielectric withstand voltage | 510 V AC rms for 1 minute |
| Insulation resistance | 10 MΩ or higher by insulation resistance tester |
| Protection degree | IP2X |
| External interface | 18-point terminal block (M3 screw) |
| Number of occupied I/O points | 32 points (I/O assignment: Output 32 points) |
| Internal current consumption (5 V DC) | 190 mA (TYP. all points ON) |
| External dimensions: Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions: Width | 27.8 mm |
| External dimensions: Depth | 131 mm |
| Weight | 0.24 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
