What is the Mitsubishi Electric RY40PT5B?

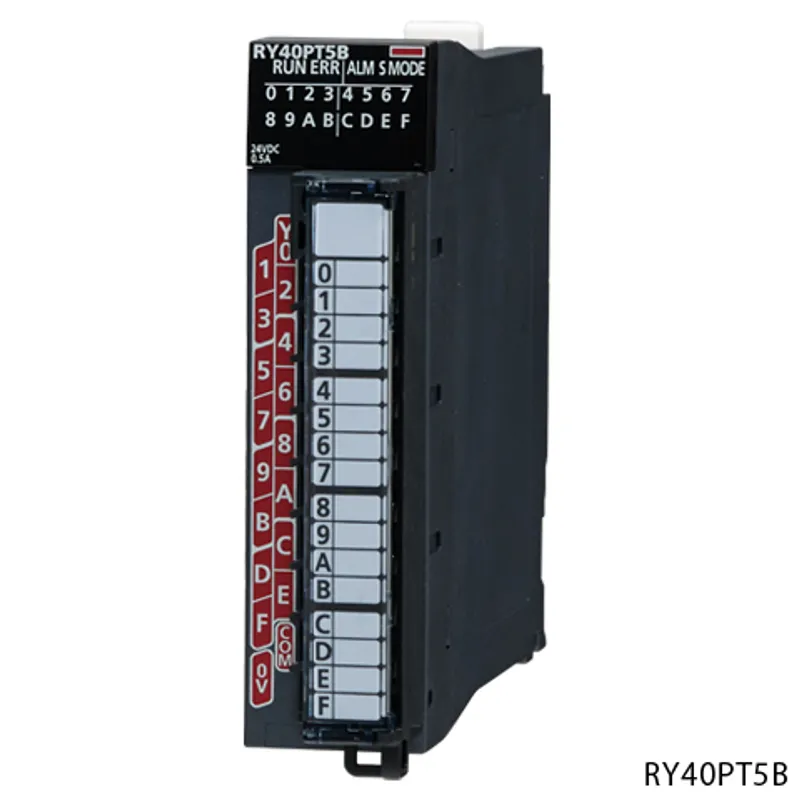

The Mitsubishi Electric RY40PT5B is a output in the MELSEC iQ-R Series. Transistor output: 16 points, 24 V DC, 0.5 A/point, 5 A/common, response time: 1.5 ms, 16 points/common, source type, 18-point terminal block. For more information about IEC61508, please refer to the Technical News(FA-A0386). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryOutput
TypeTransistor output (source)
SubtypeDiagnostic functions
OutlineTransistor output: 16 points, 24 V DC, 0.5 A/point, 5 A/common, response time: 1.5 ms, 16 points/common, source type, 18-point terminal block. For more information about IEC61508, please refer to the Technical News(FA-A0386).

Output specifications

Output typeTransistor output (source type)
Number of output points16 points
Rated load voltage24 V DC (allowable voltage range: 20.4...28.8 V DC)
Maximum load current0.5 A/point, 5 A/common
Maximum inrush currentCurrent is limited by the overload protection function.
Leakage current at OFF0.3 mA or less
Maximum voltage drop at ON1.0 V DC (TYP.) 0.5 A
Output response time: OFF to ON0.5 ms or less
Output response time: ON to OFF1.5 ms or less
Input short-circuit (ground) detection current0.5 A or more/point
Disconnection (no connection) detection current3 mA or less/point
Surge suppressorZener diode
FuseNone
Protection function: Overheat protection functionActivated in increments of 1 point.
Protection function: Overload protection functionLimit current with overload protection at overcurrent detection: 1.0 A or more/point Activated in increments of 1 point.
External power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply: Current87 mA (at 24 V DC)
Output common terminal arrangement16 points/common

Common specifications

Control cycle time2 ms
Dielectric withstand voltage510 V AC rms for 1 minute
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP2X
External interface18-point terminal block (M3 screw)
Number of occupied I/O points32 points (I/O assignment: Output 32 points)
Internal current consumption (5 V DC)190 mA (TYP. all points ON)
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth131 mm
Weight0.24 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.
