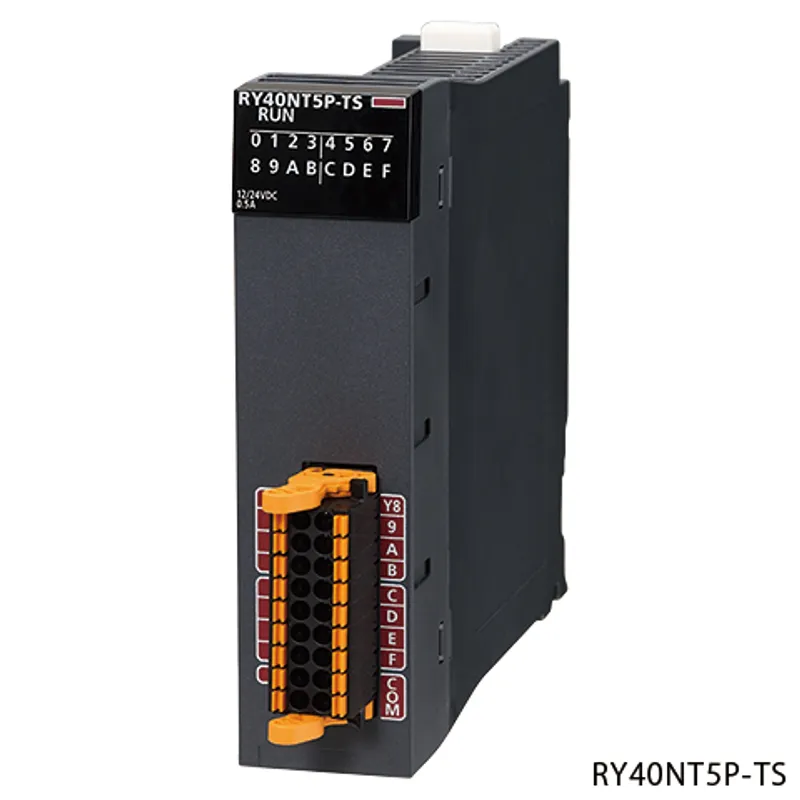

RY40NT5P-TS Mitsubishi MELSEC iQ-R Series Output

MPN: RY40NT5P-TS · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – I/O
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RY40NT5P-TS be shipped?

RY40NT5P-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RY40NT5P-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RY40NT5P-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RY40NT5P-TS, subject to availability and destination.

The Mitsubishi Electric RY40NT5P-TS is a output in the MELSEC iQ-R Series. Transistor output: 16 points, 12/24 V DC, 0.5 A/point, 5 A/common, response time: 1 ms, 16 points/common, sink type, spring-clamp terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Output
Type	Transistor output (sink)
Outline	Transistor output: 16 points, 12/24 V DC, 0.5 A/point, 5 A/common, response time: 1 ms, 16 points/common, sink type, spring-clamp terminal block type

Output specifications

Output type	Transistor output (sink type)
Number of output points	16 points
Rated load voltage	12/24 V DC (allowable voltage range: 10.2...28.8 V DC)
Maximum load current	0.5 A/point, Pilot Duty, 5 A/common
Maximum inrush current	Current is limited by the overload protection function.
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.2 V DC (TYP.) 0.5 A, 0.3 V DC (MAX.) 0.5 A
Output response time: OFF to ON	0.5 ms or less
Output response time: ON to OFF	1 ms or less (rated load, resistive load)
Surge suppressor	Zener diode
Fuse	None
Protection function: Overheat protection function	Available
Protection function: Overload protection function	Available
External power supply: Voltage	12/24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC)
External power supply: Current	6 mA TYP. (at 24 V DC), 9 mA MAX. (at 24 V DC)
Output common terminal arrangement	16 points/common

Common specifications

Dielectric withstand voltage	510 V AC rms for 1 minute
Insulation resistance	10 MΩ or higher by insulation resistance tester
Protection degree	IP2X
External interface	Two-piece spring clamp terminal block
Number of occupied I/O points	16 points (I/O assignment: Output 16 points)
Internal current consumption (5 V DC)	140 mA (TYP. all points ON)
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	129 mm
Weight	0.12 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.
