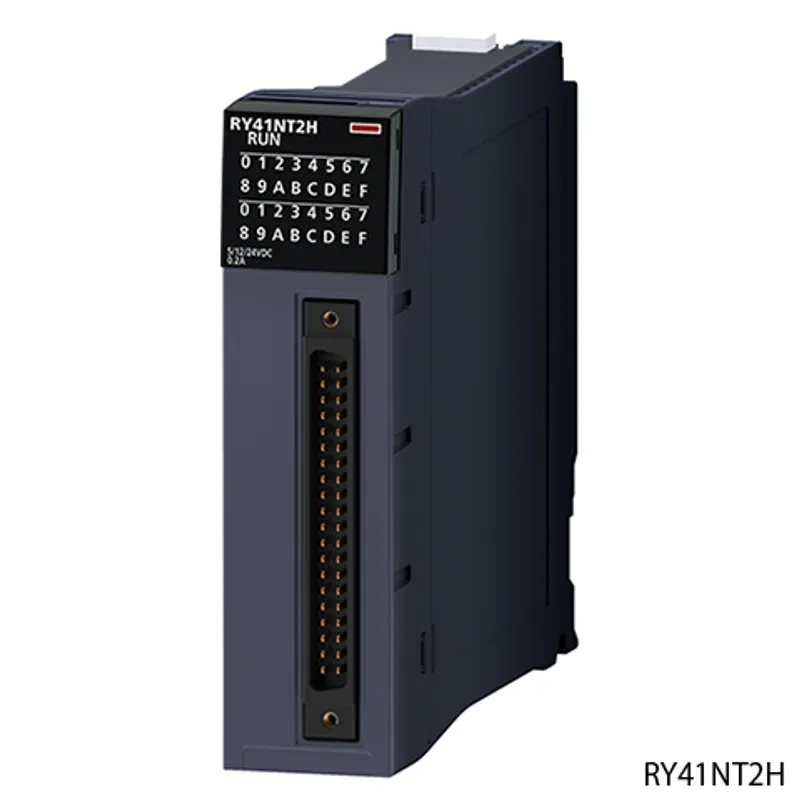

Mitsubishi Electric RY41NT2H

Mitsubishi MELSEC iQ-R Series Output

MPN
RY41NT2H
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RY41NT2H?

The Mitsubishi Electric RY41NT2H is a output in the MELSEC iQ-R Series. Transistor output: 32 points, 5/12/24 V DC, 0.2 A/point, 2 A/common, response time: 2 μs, 32 points/common, sink type, 40-pin connector. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryOutput
TypeTransistor output (sink)
SubtypeHigh-speed output
OutlineTransistor output: 32 points, 5/12/24 V DC, 0.2 A/point, 2 A/common, response time: 2 μs, 32 points/common, sink type, 40-pin connector

Output specifications

Output typeTransistor output (sink type)
Number of output points32 points
Rated load voltage5/12/24 V DC (allowable voltage range: 4.25...28.8 V DC)
Maximum load current0.2 A/point, 2 A/common
Maximum inrush current0.7 A, 10 ms or less
Leakage current at OFF0.1 mA or less
Maximum voltage drop at ON0.1 V DC (TYP.) 0.2 A, 0.2 V DC (MAX.) 0.2 A
Output response time: OFF to ON1 µs or less
Output response time: ON to OFF2 µs or less (rated load, resistive load)
Surge suppressorZener diode
FuseNone
Protection functionNone
Output common terminal arrangement32 points/common

Common specifications

Dielectric withstand voltage510 V AC rms for 1 minute
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP2X
External interface40-pin connector
External interface: Applicable connectorA6CON1, A6CON2, A6CON3, A6CON4 (sold separately)
Number of occupied I/O points32 points (I/O assignment: Output 32 points)
Internal current consumption (5 V DC)420 mA (TYP. all points ON)
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.12 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

RY41NT2H: frequently asked questions

When can RY41NT2H be shipped?

RY41NT2H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RY41NT2H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RY41NT2H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RY41NT2H, subject to availability and destination.
