RY10R2-TS Mitsubishi MELSEC iQ-R Series Output

MPN: RY10R2-TS · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – I/O
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RY10R2-TS be shipped?

RY10R2-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RY10R2-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RY10R2-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RY10R2-TS, subject to availability and destination.

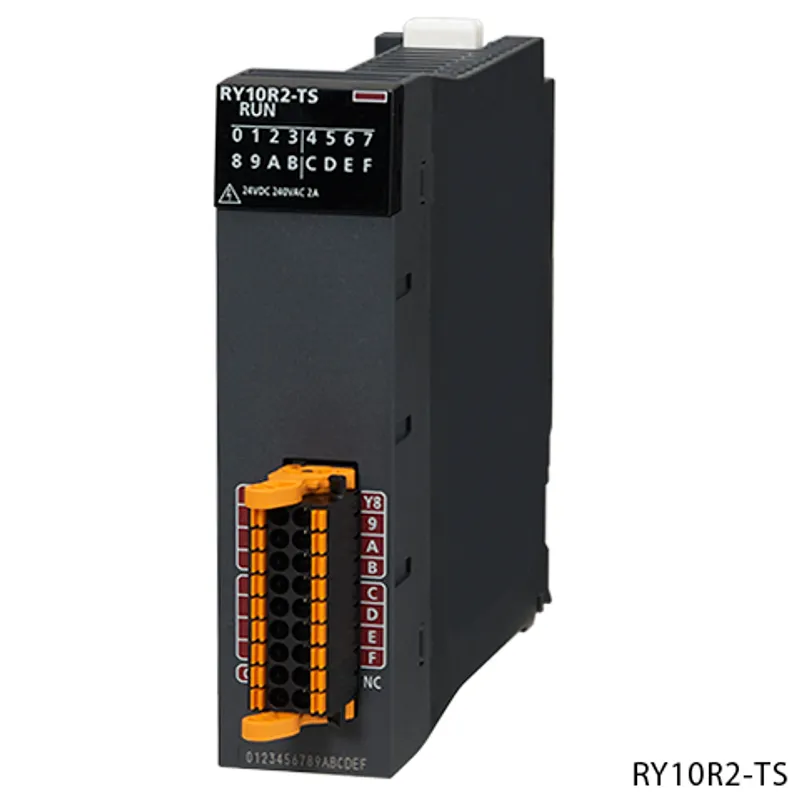

The Mitsubishi Electric RY10R2-TS is a output in the MELSEC iQ-R Series. Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, spring-clamp terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Output
Type	Relay output
Outline	Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, spring-clamp terminal block type

Output specifications

Output type	Contact output
Number of output points	16 points
Rated switching voltage, current	24 V DC 2 A (resistive load)/point, 240 V AC 2 A (cosø=1)/point, 8 A/common
Minimum switching load	5 V DC, 1 mA
Maximum switching voltage	264 V AC, 125 V DC
Life: Mechanical	20 million times or more
Life: Electrical	Rated switching voltage/current load: More than 100 thousand times 200 V AC 1.5 A, 240 V AC 1 A (COSø=0.7): 100 thousand times 200 V AC 0.4 A, 240 V AC 0.3 A (COSø=0.7): 300 thousand times 200 V AC 1 A, 240 V AC 0.5 A (COSø=0.35): 100 thousand times 200 V AC 0.3 A, 240 V AC 0.15 A (COSø=0.35): 300 thousand times 24 V DC 1 A, 100 V DC 0.1 A (L/R=7 ms): 100 thousand times 24 V DC 0.3 A, 100 V DC 0.0
Maximum switching frequency	3600 times/hour
Output response time: OFF to ON	10 ms or less
Output response time: ON to OFF	12 ms or less
Surge suppressor	None
Fuse	None
Output common terminal arrangement	16 points/common

Common specifications

Dielectric withstand voltage	2300 V AC rms for 1 minute
Insulation resistance	10 MΩ or higher by insulation resistance tester
Protection degree	IP1X
External interface	Two-piece spring clamp terminal block
Number of occupied I/O points	16 points (I/O assignment: Output 16 points)
Internal current consumption (5 V DC)	450 mA (TYP. all points ON)
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	129 mm
Weight	0.19 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R I/O Module User's Manual (SH-081247ENG-M)	PDF · 4.40MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
MELSEC iQ-R I/O Module Function Block Reference (BCN-P5999-0376-E)	PDF · 1.16MB
Before Using the Product (BCN-P5999-0982)	PDF · 0.14MB
Safety Guidelines (IB-0800525)	PDF · 11.79MB
